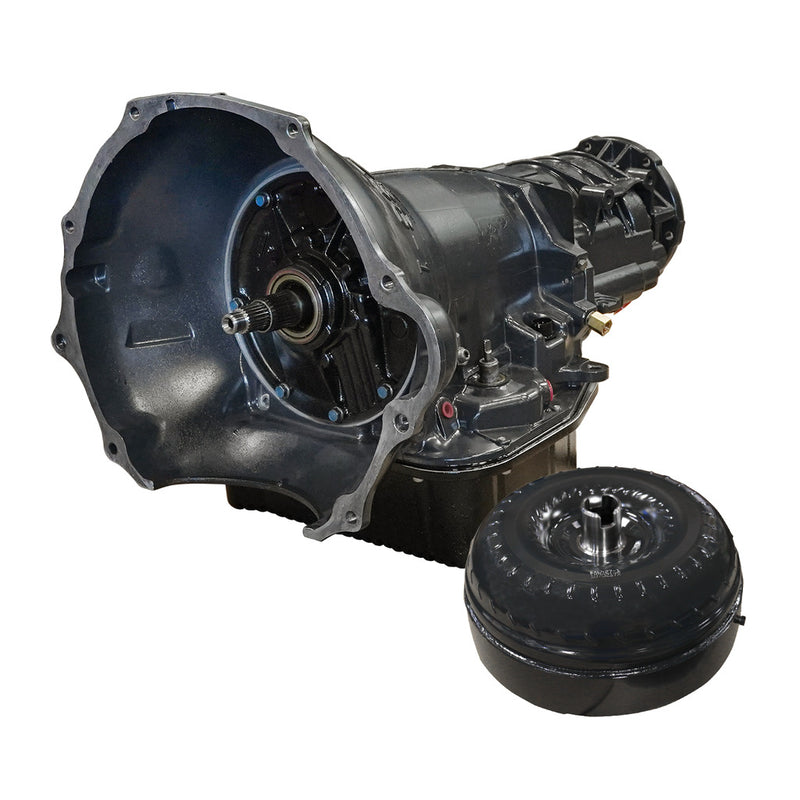

ROADMASTER TRANSMISSION & CONVERTER PACKAGE 47RE DODGE RAM 2500/3500 5.9L CUMMINS 1998.5-1999

TRANSMISSION

• Upgraded Valve Body
• Upgraded Pressure Transducer and PR Valve - Increased line pressure (200 psi)
• BD Custom Separator Plate & Upgraded Shift Springs – Eliminate Shuttle Shifting
• Modified Manual Valve - Lubrication in all positions
• Clutch Count: DIRECT 5 (same as OE)
• Clutch Count: FORWARD 4 (same as OE)
• Clutch Count: OD 5 (same as OE)
• Clutch Count: OD DIRECT 10 (same as OE)
• Billet Band Strut – Increased Kickdown Durability
• Cooler Line Case Saver – Prevent case failure due to incorrect cooler line install
• Deep Sump Pan - 2 more qts of oil helps to extend the lifespan of your oil and improves cooling performance

BD PROFORCE TORQUE CONVERTER

• Enhanced Stall Torque Converter with Cast Aluminum Stator
• Stamp Forged Steel Front Cover and Furnace Brazed Turbine Fins
• Billet Steel Piston for Reduced Deflection

Fully remanufactured 47RE transmission featuring the BD Valve Body! The BD Valve Body has many modifications to improve shift quality and extend transmission life. The RoadMaster transmission also includes a deep sump oil pan for increased fluid capacity and cooling. Combining the upgraded VB with increased line pressure and a ProForce torque converter, the BD Roadmaster 47RE transmission is a reliable upgrade for stock or mildly upgraded 5.9L Cummins-equipped Dodge Ram 2500/3500 series trucks.

INSTALL TIME

• 7 Hours 30 Minutes

WARRANTY

Parts

• 24-Months

Labor

• 12-Months
