Ford 7.3L Power Stroke • 1999–2003
4R100 Transmission: Upgrades, Fixes & Buying Guide
Everything you need to know to keep a 4R100 alive under tow: failure patterns, service tips, and the best BD Diesel packages for work trucks and weekend haulers.
The 4R100 earned its reputation the hard way: pulling heavy, day after day, behind Ford’s 7.3L Power Stroke. Heat and load expose weak links—converter lockup, lube to OD planets, and case feed leaks—long before a casual commute would. BD’s matched transmission + converter packages fix those pain points with smart oiling, pressure control, clutch capacity, and a deep pan that keeps temps in check. Below is a no-fluff breakdown so you can choose the right path the first time.
Which Package Fits Your Truck?

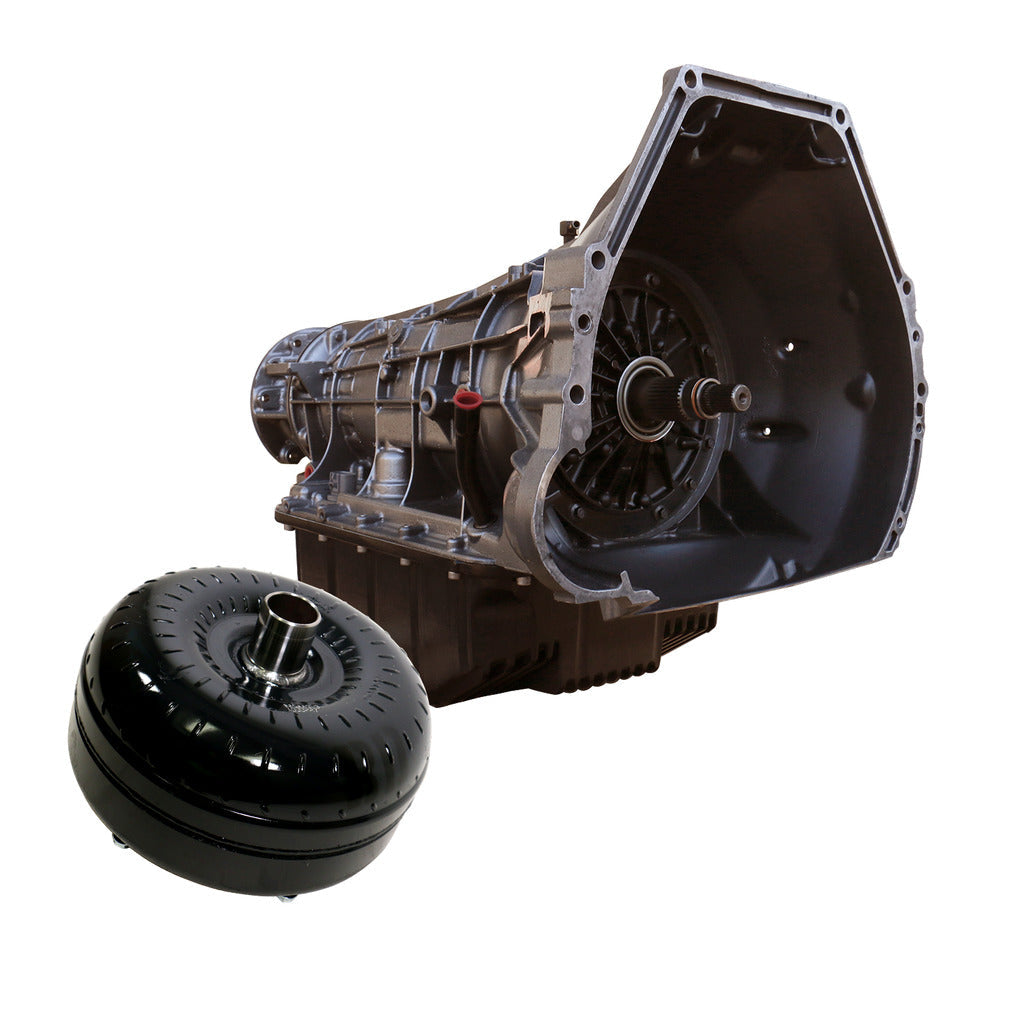

TowMaster 4R100 • Best for Work/Tow
Matched trans + ProForce converter, big capacity bump, and aggressive oiling changes for long-grade control.
Deep Pan +6 qt Added Lube Circuits Quicker, Firmer Shifts- Accumulator re-calibrated; full shift kit with line-mod valve
- Increased pressure to the converter & added lube to OD planet/output/intermediate
- Machined center support, upgraded OD snap ring & reworked pump
- Fully rollerized geartrain; each unit dyno tested
- Includes auxiliary frame-mounted full-flow filter (1990–2003)
Warranty: Parts 36 mo / 150,000 mi • Labor 12 mo / 24,000 mi.
Notes: No PTO provision. Excursion requires factory-style pan (BD deep pan interferes with crossmember).
RoadMaster 4R100 • Best OEM+
For stock/lightly modified trucks that need reliability without max clutch counts.
OEM Clutch Counts Deep Pan +6 qt On/Off Lockup- Reman valve body + repair shift kit for quicker, firmer shifts
- Upgraded PR valve raises line: ~100–200 psi (vs ~75–150 stock)
- Lockup strategy converted from PWM to on/off for cooler temps under tow
- Machined center support, upgraded OD & coast clutch retaining rings
- Includes BD ProForce converter (new cover, bearings, frictions & steels)
Warranty: Parts 24 mo / 100,000 mi • Labor 12 mo / 24,000 mi.
TowMaster vs. RoadMaster: What’s Different?
| Feature | TowMaster | RoadMaster |
|---|---|---|
| Use Case | Heavy tow, work trucks, hot climates, long grades | OEM+ daily/tow, mild power adders |
| Shift & Pressure Strategy | Full shift kit + line-mod valve; increased converter feed; extensive lube mods | Repair shift kit; upgraded PR valve (~100–200 psi); PWM→On/Off lockup |
| Hard-Part Upgrades | Machined center support, upgraded OD snap ring, reworked pump, rollerized geartrain | Machined center support, upgraded OD/coast clutch rings |
| Converter | ProForce: torque-multiplying stator, brazed fins, stamped-forged cover | ProForce: new cover/bearings/frictions/steels |
| Fluid Capacity | BD Deep Pan (+~6 qt) on both; easier service & lower temps | |
| Aux Filter (1990–2003) | Included, frame-mounted full-flow | See product listing; deep pan included |
| Dyno-Tested | Yes — each unit | Yes — each unit |
| Warranty | 36 mo / 150k mi parts • 12 mo / 24k mi labor | 24 mo / 100k mi parts • 12 mo / 24k mi labor |
Why 4R100s Fail (and How BD Fixes It)
Heat & Converter Slip
PWM lockup + heavy load = heat. BD’s on/off lockup (RoadMaster) and higher converter feed pressure keep clutch happy and temps down.
Starved Planetaries
Long grades starve the OD planet/output shafts. TowMaster adds lube circuits and support so the geartrain lives under tow.
Case & Feed Leaks
Drilled/tapped feeds and reworked pump stabilize apply pressures—clean, repeatable shifts without flare.
Ownership Tips: Make It Last
- Service the fluid regularly; heat kills ATF. The deep pan + drain plug makes it painless.
- Watch temps under tow. If you see repeat 220°F+ events, shorten intervals and consider auxiliary cooling.
- Use lockup smartly on long grades—steady throttle, avoid constant hunt between gears.
Install, Warranty & Notes
Install Time (both): ~7 hours.
TowMaster Warranty: Parts 36 mo / 150,000 mi • Labor 12 mo / 24,000 mi.
RoadMaster Warranty: Parts 24 mo / 100,000 mi • Labor 12 mo / 24,000 mi.
Notes: No race abuse covered. Remote filter required for inspection with cooler flow (GPM) at cooler outlet. No PTO provision. Excursion requires factory-style pan.
FAQ
Will these help with converter shudder when towing?
Yes—higher line/converter feed pressure and on/off lockup reduce slip heat. The ProForce converter uses stronger internals and brazed fins to handle sustained load.
Do I need a deeper pan?
Both packages include BD’s deep pan (+~6 qt). More oil = more thermal capacity and easier service via drain plug.
Which one should a daily/tow truck choose?
RoadMaster for OEM+ reliability. If you live in the mountains, tow heavy/long, or want the most headroom, pick TowMaster.
