5.9L Cummins (2004.5–2007) Exhaust Manifolds: Pulse-Flow Upgrade, Warpage Fix & Install Guide

5.9L Cummins (2004.5–2007) Exhaust Manifolds — Seal It, Keep the Pulse, Tow Cooler

The late 5.9L common-rail trucks earned their reputation for reliability—but the factory manifold is still a thin, single-piece casting that warps, leaks, and bleeds turbo drive pressure after years of heat cycles and towing. This guide explains why it happens, how BD’s pulse-flow manifolds solve it, and how to install and re-torque for a long-term seal.

Shop Late 5.9L CR Manifolds (2004.5–2007)
• Collection: BD 5.9L ’04.5–’07 Manifolds
Quick Summary: Leaks ahead of the turbine cost you spool and add heat. BD’s thick hi-silicon ductile iron, two-piece pulse design with a slip joint controls thermal growth, keeps gasket crush, and preserves exhaust pulses—translating to faster response, quieter cold starts, and fewer re-torques.

Why Late 5.9 CR Manifolds Leak & Tick

  • Heat-Cycle Warpage: The long, thin flange bows, reducing clamp load so gaskets seep and ports soot-track.
  • Hanging Turbine Mass: Turbo weight and vibration stress the runner/collector area and studs.
  • Pulse Loss = Lazy Spool: Any pre-turbine leak reduces the energy hitting the wheel, which you feel as softer low-rpm torque and higher EGT under load.

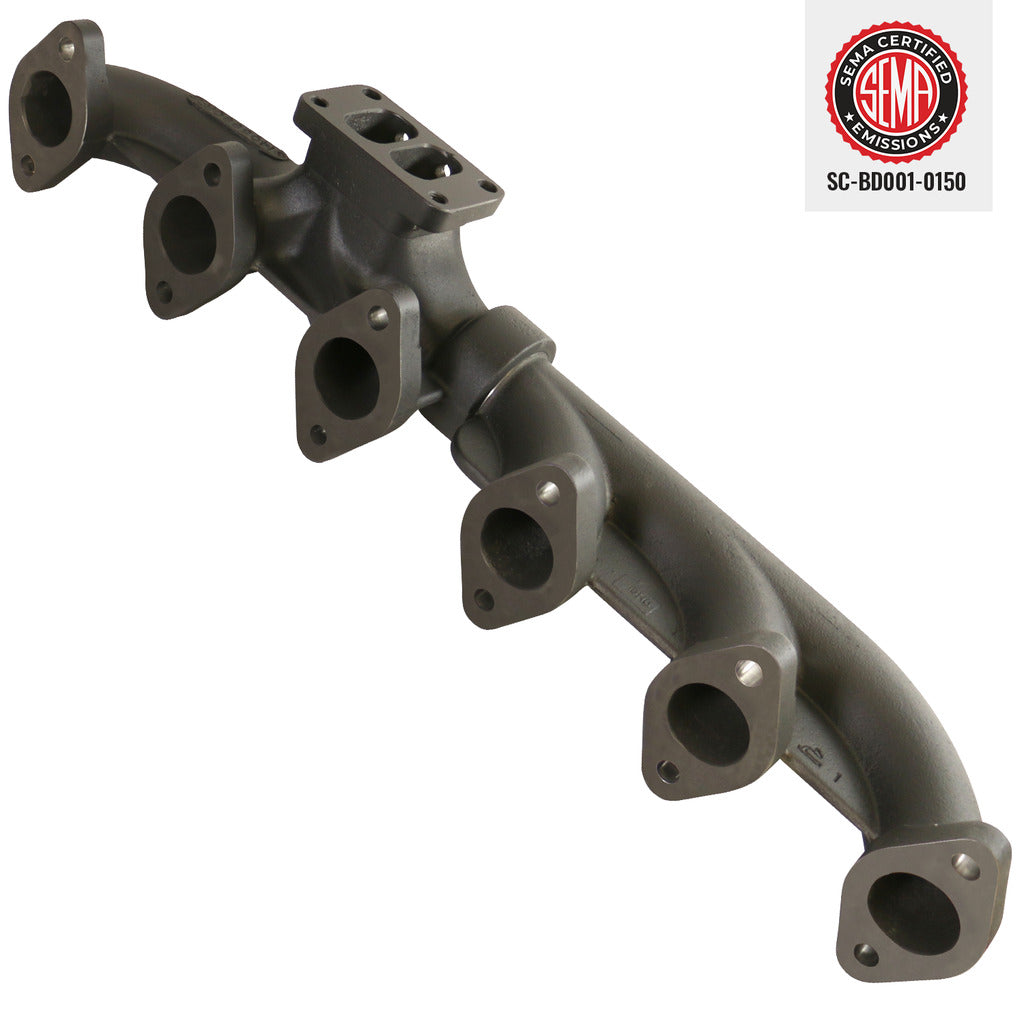

How BD’s Pulse Manifold Fixes the Problem

  • Hi-Silicon Ductile Iron: A tougher casting with thicker walls to resist cracking and maintain flatness after heat soak.
  • Two-Piece with Slip Joint: Lets the sections expand/contract without unloading the fasteners—gaskets stay sealed.
  • Machined, Thicker Flanges: Flat, rigid mating faces = consistent crush and clamp load.
  • Pulse-Flow Dividers: Keep exhaust pulses separated and energetic for sharper turbine response.
  • Pyro-Ready Ports: Pre-drilled 1/8" NPT (where applicable) for easy EGT monitoring.
  • Complete Hardware: New studs/spacers/bolts and fresh gaskets simplify a clean, durable install.

Fitment Notes: 2004.5–2007 (24-Valve Common-Rail)

  • Turbo Footprint: Stock late 5.9 commonly uses a divided T3 footprint. If planning S300/S400 later, choose a manifold flange that matches your upgrade path.
  • Sensor Ports: Use the provided 1/8" NPT for an EGT probe; apply anti-seize and set proper insertion—don’t bottom the probe.
  • Stress-Free Alignment: Support the turbo/downpipe during fit-up so the manifold isn’t side-loaded while torqueing.

What Improves After the Upgrade

  • Quieter Cold Starts: No more ticking at the head flange as the engine warms.
  • Faster Spool & Lower EGT: Intact pulse energy means better response merging, passing, and towing grades.
  • Fewer Re-Torques: The slip-joint design preserves clamp load across seasons and heavy cycles.

Late 5.9 CR Manifold—Stock vs. BD

Feature OEM Manifold BD Pulse Manifold
Casting Thin gray iron Thick hi-silicon ductile iron
Construction One-piece Two-piece with slip joint
Flange Flatness Prone to bowing Thicker, fully machined
Pulse Energy Average Higher pulse to turbine
EGT Port Often add later Pre-drilled (where applicable)
Hardware Re-use common New studs/spacers/bolts + gaskets

Install & Re-Torque Playbook

  1. Prep: Penetrant on fasteners ahead of time. Disconnect batteries. Support turbo and downpipe to relieve strain.
  2. Disassembly: Many techs remove turbo+manifold together on rusty trucks, then separate on the bench.
  3. Surface Clean: Bring head face to clean, smooth metal; check with a straightedge. Avoid abrasive gouging.
  4. Dry Fit: Confirm the slip-joint moves freely and alignment dowels/slots match.
  5. Gaskets & Hardware: Install new gaskets and supplied studs/spacers/bolts. Torque center-out in stages to the spec in the kit.
  6. EGT Probe: Install with anti-seize and correct depth; route wiring away from heat.
  7. Heat-Cycle Check: After the first loaded drive and full cool-down, re-check torque if recommended.

Before You Swap: Quick Diagnostics

  • Soot Trails at Ports: Indicates flange distortion/clamp loss—classic swap candidate.
  • Cold-Start Tick: Fades warm? Likely a pre-turbo leak at the head or crossover.
  • Sluggish Boost: Smoke-test charge piping too; fix any downstream leaks after the manifold change.

Build Paths for the Late 5.9 CR

OEM+
  • BD pulse manifold (T3), new gaskets/hardware, optional EGT probe for towing visibility.
  • Inspect/replace heat-soaked studs; clean mating surfaces thoroughly.
Towing
  • Manifold + EGT gauge; verify downpipe alignment and hanger condition to prevent stress.
  • Consider a deeper trans pan and good cooling strategy to keep overall temps in check on grades.
Mild Performance
  • If eyeing an S300/S400 later, pick the correct flange now. Add drive-pressure/EGT monitoring with added fueling.
  • Use quality hardware and proper turbo support brackets to minimize cantilever load.

FAQs

Do I need a tune with a manifold? No. It’s an airflow/thermal reliability upgrade and plays well with stock fueling.

Will it help a stock charger? Yes—preserving pulse and sealing pre-turbine leaks improves response and can lower EGT.

Emissions/Compliance? This is a replacement manifold. Always follow local regulations and the product’s instructions.
