6.0L Power Stroke EGR Cooler (2004–2007): BD Square-Tube Upgrade

By Ben Dow
3 min read

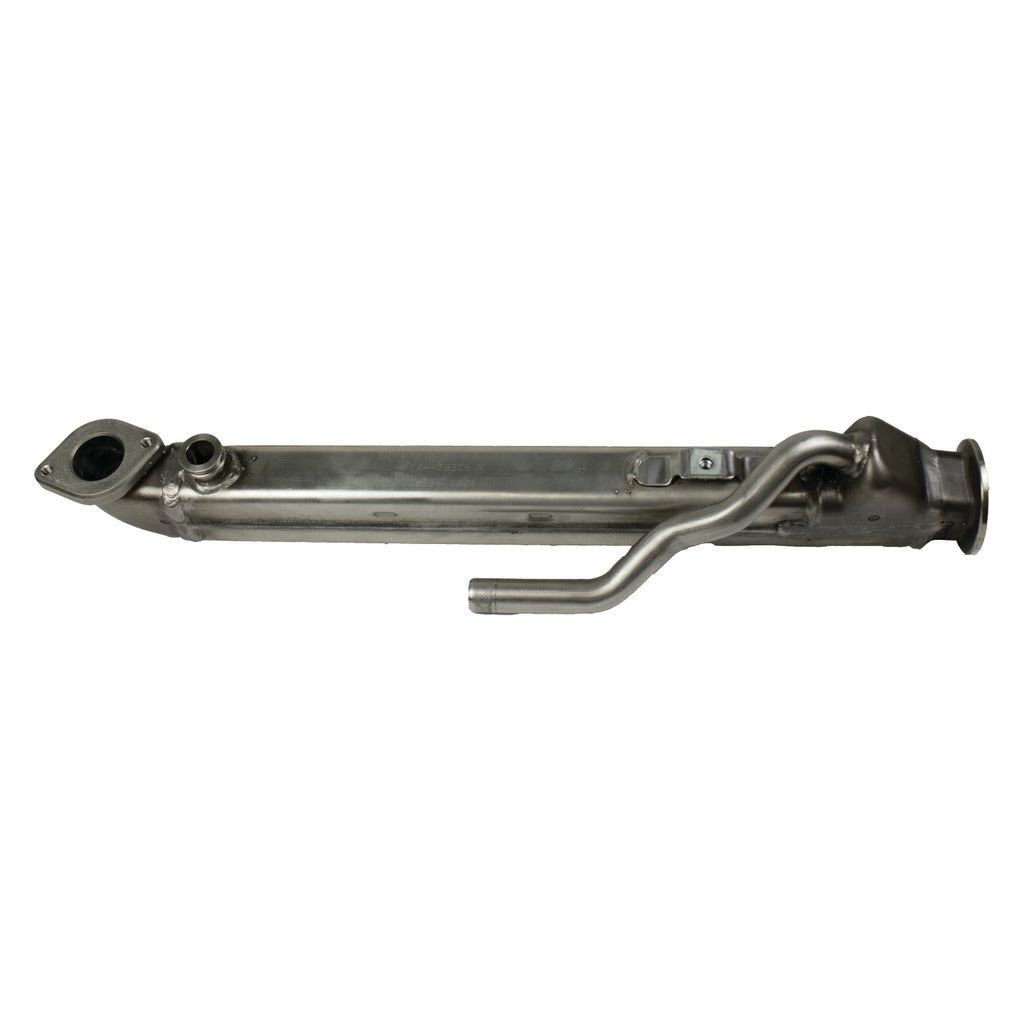

6.0L Power Stroke EGR Cooler (2004–2007): BD Square-Tube Upgrade

6.0L Power Stroke EGR Cooler (’04–’07): Heavy-Duty Square-Tube Replacement

Stop repeat EGR cooler failures on the 6.0L. BD’s TIG-welded 304L stainless square-tube core resists the braze-joint cracks that sink OEM units—helping prevent coolant ingestion and catastrophic hydrolock, with a 5-year, unlimited-mile parts warranty.

Quick Summary: TIG-welded 304L square-tube core • Water deflectors for better heat transfer • Pressure-tested exchange unit • Includes O-ring, threaded insert, and full gasket set (1900204) • No tuner required and no check-engine light • ~3 hour install.

Why the OEM Cooler Fails

The factory 6.0L EGR cooler uses thin, brazed internal cores. After enough thermal cycling—especially with towing, short trips, or soot-loaded systems—those brazed joints can micro-crack. The result is coolant sneaking into the exhaust or, worse, the intake. Best case you chase mystery coolant loss and white smoke. Worst case, the engine hydrolocks.

BD’s Mechanical Fix: Square-Tube, TIG-Welded, Pressure-Tested

  • 304L stainless square-tube core (0.375" OD, 0.048" wall) TIG-welded—no weak brazed joints.
  • Water deflectors increase coolant turbulence to pull more heat from exhaust gas.
  • Every cooler pressure-tested before it leaves—no guesswork.
  • Includes O-ring, threaded insert, and the 1900204 gasket set for a one-and-done install.
  • Drop-in replacement: no tuning required and won’t trigger a MIL.
Who benefits?
  • Tow/Work trucks that see long idles, frequent heat cycles, or city duty.
  • Fleet service looking to eliminate repeat cooler comebacks.
  • Fresh top-end jobs (studs, gaskets): do the cooler now and avoid reopening the bay.

What’s in the Box

Component Details
Heavy-Duty EGR Cooler (exchange) 304L TIG-welded square-tube core; pressure-tested
Gaskets Complete 1900204 gasket set included
Seals & Hardware O-ring and threaded insert included
Documentation Install guidance & checklist

Fitment & How to Order

Application: Ford 6.0L Power Stroke, 2004–2007 (after 9/22/2003 production date).
Install Time: ~3 hours (typical shop time).
Warranty: 5-Year Limited, Unlimited Miles (parts).

Shop now: BD EGR Cooler – 6.0L (’04–’07)

Symptoms of a Failing EGR Cooler

  • Unexplained coolant loss with no obvious external leak.
  • White exhaust smoke (steam), especially on cold start.
  • Over-pressurized degas bottle or recurring coolant smell.
  • Hydrolock risk: crank/no-start after sitting; pulls coolant into a cylinder.

Install Tips for a One-Time Fix

  • Verify build date: this unit fits trucks built after 09/22/2003.
  • Inspect & clean EGR/intake passages while you’re in there; replace any suspect clamps and hoses.
  • Fresh coolant (proper spec) and a complete bleed procedure prevent hot-spots and aeration.
  • Check for codes before/after, road-test to full temp, and re-inspect for seepage post heat-cycle.

Frequently Asked Questions

Does the BD cooler require tuning?
No. It’s a direct-fit emissions component and will not trigger a check-engine light.

Is it legal for on-road use?
Yes. This is an emissions system replacement part designed for factory-equipped vehicles.

Can this prevent hydrolock?
By eliminating the brazed-joint failure mode, the TIG-welded square-tube core greatly reduces the risk of coolant entering the cylinders via the EGR cooler.

Ready to fix it once? Order the BD 6.0L Square-Tube EGR Cooler and use the included 1900204 gasket set for a clean, reliable install.
6.0L Power Stroke EGR Cooler Hydrolock Prevention TIG-Welded 304L Heavy-Duty Cooling

Always verify fitment for your VIN. Follow the latest Ford/BD service procedures and torque specs. Warranty covers manufacturing/material defects.
