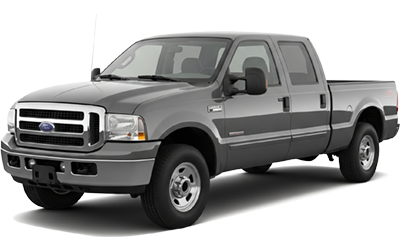

6.0L Power Stroke Problems: 10 Common Issues & Real Fixes (2003–2007)

The 6.0L Power Stroke has earned two reputations at the same time: it can be a nightmare when neglected, and a dependable workhorse when the weak links are addressed correctly. The biggest trap is chasing symptoms one-at-a-time. The 6.0 is a system engine—oil quality, coolant quality, voltage stability, and exhaust/turbo control all stack together.

Shop by search: 6.0 Power Stroke parts • 6.0 injectors

1) Injector Stiction (Cold Misfire / Hot-Soak Issues)

“Stiction” is the 6.0’s signature. It feels like rough cold starts, random cylinder misses, and a truck that cleans up only after warming. The injectors are oil-actuated—so oil viscosity, oil cleanliness, and injector spool valve condition all matter. Real fix: verify oil pressure behavior, use correct oil for season, address FICM voltage (see #2), and replace injectors when testing confirms failure.

2) FICM Voltage Drop (Hard Starts, Rough Run, Injector Codes)

The Fuel Injection Control Module is the “spark” of a 6.0. When voltage sags, injectors don’t fire correctly. Symptoms range from slow starts to rough idle and misfire codes that look like “bad injectors.” Real fix: test batteries/charging first, then verify FICM output under load. Many “injector” problems are actually low voltage problems.

3) Oil Cooler Restriction (The Domino That Takes Out the EGR Cooler)

The factory oil cooler can clog internally. When it does, oil temps climb and coolant flow through the EGR cooler suffers—leading directly into EGR failures. Real fix: monitor oil vs coolant temperature spread, correct coolant maintenance, and replace components when restriction is confirmed. Don’t “just do the EGR cooler” without addressing the oil cooler path.

4) EGR Cooler Failure (Coolant Loss, White Smoke, Hydrolock Risk)

A failing EGR cooler can leak coolant into the intake stream. The mild version looks like slow coolant loss and white vapor; the severe version can create a hydrolock event that damages the engine. Real fix: use a heavy-duty replacement designed to handle heat cycles and pressure. BD offers a heavy-duty EGR cooler option for the 6.0 platform: BD 6.0L EGR Cooler Replacement.

5) VGT Turbo Sticking (Lazy Spool, Over/Underboost, Weak Braking)

Soot and heat make the variable geometry mechanism sticky. You’ll notice slow spool, oscillating boost, weak grade control, and codes for turbo control. Real fix: confirm actuator command vs response, fix exhaust leaks, and keep oil/coolant healthy. A “turbo problem” is often an upstream leak or control issue.

6) ICP / IPR / HPOP Leaks (Long Crank, Hot No-Start)

If the high-pressure oil system can’t build and hold pressure, the truck cranks forever—especially hot. Small leaks add up. Real fix: air test the high-pressure oil system, verify ICP response, and repair the leak points (seals, fittings, standpipes).

7) Head Gasket Symptoms (Pressure, Degas Bottle, Coolant Push)

Not every 6.0 needs head gaskets—but many trucks show symptoms like coolant pushing out of the degas bottle under load, or repeated coolant loss with no external leak. Real fix: pressure test, confirm combustion gas presence, and repair correctly. Don’t skip diagnosis—misdiagnosed “head gaskets” waste time and money.

8) EBP Sensor / Tube Plugging (Weird Boost Control, Low Power)

The exhaust backpressure sensor tube can clog. When it does, turbo control logic makes bad decisions: weird boost, low power, and confusing codes. Real fix: clean/replace the tube and confirm sensor data integrity.

9) Cooling System Weakness (Degas Cap, Hoses, Low Coolant Events)

Overheats and low coolant episodes are catastrophic for the 6.0. A weak cap or small leaks can start a chain reaction that ends in EGR or head gasket damage. Real fix: pressure test, replace tired caps/hoses, keep coolant chemistry correct, and address leaks early.

10) Transmission Control Under Tow (Gear Hunting = Heat)

Many “engine problems” are actually trans behavior under tow. Hunting and unstable lockup create heat and make the truck feel weak. If you want control and consistency, BD’s TapShifter solutions are built for real towing and grade control (where legal): Shop TapShifter.

Note: Always verify fitment and follow OEM/BD installation procedures. Emissions rules vary by jurisdiction.
