6.7L Cummins Injectors: A Complete Guide
The 6.7L Cummins engine uses Bosch high-pressure common rail (CR) injectors, which are critical for power, efficiency, and emissions compliance. Under normal operating conditions, these injectors typically have a service life of 150,000 to 200,000 miles, but failure can be accelerated by fuel contamination, elevated rail pressure, or simple mechanical wear. Understanding the symptoms of a failing injector and following a proper diagnostic path is key to a lasting repair.
Vehicle Applications & Part Numbers
Not all 6.7L Cummins injectors are interchangeable. Chrysler and Cummins used two different types of injectors across the 2007.5-2018+ model years: solenoid-actuated and piezo-actuated. Knowing which type your truck requires is the first step in any diagnosis or replacement job. Piezo injectors, used in later models, offer faster response times for more precise fuel control.
Referencing the factory service information or the OE part number on the injector body is always the best practice.
| Model Years | Engine Type | Injector Actuation | Common OE Bosch P/N |
|---|---|---|---|
| 2007.5 - 2012 | Ram Pickup & Cab Chassis | Solenoid | 0445120193 / 0986435518 |
| 2013 - 2018 | Ram Pickup | Piezo | 0445120357 / 0986435621 |
| 2013 - 2018 | Ram Cab & Chassis | Solenoid | 0445120342 / 0986435573 |
| 2019+ | Ram Pickup & Cab Chassis | Piezo | 0445124083 / 0986435749 |
Symptoms of a Failing 6.7L Cummins Injector
Injector issues can manifest in various ways, from subtle performance degradation to catastrophic engine damage. A hazy idle or a hard start are often the first signs of trouble. Ignoring these symptoms can lead to more severe problems like cylinder washing or a cracked piston. This real fix checklist helps you connect symptoms to likely causes.
| Symptom | Potential Cause(s) | The Real Fix |
|---|---|---|
| White/blue-white smoke (haze) at idle, especially when cold. | Injector nozzle wear, poor atomization, incorrect spray pattern. | Perform an injector kill test to isolate the failing cylinder(s). Replace injectors as a balanced set. |
| Hard starting, long crank times. | High injector return rates, leaking injector body, low rail pressure. | Conduct an injector return flow test. High return volume indicates internal leakage requiring injector replacement. |
| Fuel detected in engine oil (rising oil level). | Cracked injector body, leaking high-pressure connector tube. | Test oil for diesel contamination. Replace failed injector(s) and connector tubes. Perform an oil change. |
| Engine knock or nailing sound. | Over-fueling from a stuck-open nozzle or delayed injection timing. | Isolate the problematic cylinder immediately to prevent piston damage. Replace the faulty injector. |
| Loss of power and poor fuel economy. | General wear across multiple injectors, inefficient combustion. | Replace injectors as a matched set to restore performance and efficiency. Verify fuel filtration and lift pump pressure. |
Disclaimer: This guide is educational and diagnostic in nature, not a substitute for professional inspection by a qualified technician.
What Good Looks Like: Stock vs. Performance Injectors
Replacing worn stock injectors presents an opportunity for a strategic upgrade. BD's performance injectors are engineered to provide more power by flowing a higher volume of fuel. Our remanufacturing and calibration process ensures you get a balanced set that delivers power reliably without compromising idle quality. Flow rates are measured in Liters Per Minute (LPM) and horsepower ratings are an approximation over stock output.
| Injector Level | Flow Rate (% over Stock) | HP Increase (Approx.) | Primary Use Case |
|---|---|---|---|
| Stock Reman | 0% | 0 HP | OEM replacement, daily driving, light towing. |
| BD Stage 1 (+30HP) | 15% | +30 HP | Heavy towing, improved throttle response with stock turbo. |
| BD Stage 2 (+60HP) | 30% | +60 HP | Performance builds, moderate towing, requires supporting mods. |
| BD Stage 3 (+120HP) | 60% | +120 HP | Competition, dedicated performance builds with upgraded turbo and fuel system. |
Horsepower gains require appropriate tuning and may necessitate other supporting modifications like an upgraded turbocharger or lift pump.
Common Causes of Injector Failure
Understanding why injectors fail is crucial to preventing repeat failures. The common rail fuel system on the 6.7L Cummins operates at pressures exceeding 25,000 PSI, making it highly sensitive to fuel quality and system health.
Fuel Contamination
Water, dirt, and DEF contamination are the number one killers of injectors. Contaminants score the micro-precision internal components, leading to leaks, poor spray patterns, and nozzle failure. Upgrading fuel filtration is cheap insurance.
High Mileage & Wear
Injectors are mechanical components with moving parts that eventually wear out. The internal springs lose tension and nozzles erode over hundreds of millions of cycles, leading to a gradual decline in performance and eventual failure.
Excessive Rail Pressure
Aggressive performance tuning that commands rail pressure beyond the injector's design limits can cause premature failure. This stress can lead to body cracks, nozzle issues, and internal leaks.
Corrosion
Water in the fuel system can cause corrosion on internal injector parts, especially the nozzle. This disrupts the spray pattern and can cause the pintle to stick, leading to over-fueling or no-fueling conditions.
The Fix-First Roadmap: A Replacement Checklist
Replacing a fuel injector is more than just a parts swap. Following a systematic process ensures the new components are not damaged by an underlying issue in the fuel system. This is our fix-first roadmap for a successful injector job.
| Step | Action | Key Objective |
|---|---|---|
| 1 | Confirm Failure | Use scan tool data and physical tests (return flow, injector kill) to confirm which injectors are faulty. |
| 2 | Inspect Fuel System | Check lift pump pressure and volume. Inspect fuel filters for signs of contamination (metal, water, debris). |
| 3 | Select Replacements | Choose injectors appropriate for your model year and performance goals. Always replace as a complete, balanced set. |
| 4 | Installation Prep | Thoroughly clean the injector bore in the cylinder head and the high-pressure fuel line ports. Contamination is the enemy. |
| 5 | Install & Torque | Install new injectors with new high-pressure connector tubes. Torque all fasteners and fuel lines to factory specifications. |
| 6 | Prime, Bleed & Test | Prime the fuel system to purge all air. Start the engine and check for leaks. Monitor rail pressure and balance rates with a scan tool. |
Injector Installation Best Practices
The difference between a 200,000-mile injector life and a 20,000-mile failure often comes down to installation technique. The modern common rail system is unforgiving of contamination or improper assembly procedures.
Cleanliness is Non-Negotiable
The smallest piece of debris entering a high-pressure fuel port can destroy a brand new injector. Before removing any fuel system component, thoroughly clean the valve cover, fuel lines, and surrounding areas. Use compressed air to blow away any loose dirt. Cap all open ports immediately.
Always replace high-pressure connector tubes when replacing injectors. They are a one-time-use sealing surface and reusing them is a primary cause of leaks and contamination.
Torque Specifications Matter
Follow the factory service information for all torque sequences and values. This is especially critical for the injector hold-down bolts and high-pressure line fittings. Under-torquing can lead to compression or fuel leaks, while over-torquing can distort the injector body or damage threads.
For reference, a common torque spec for the high-pressure line at the injector is a two-stage process, but you must always verify the procedure for your specific year and model in the factory service manual.
Always verify fitment, torque procedures, and service intervals in your owner manual and factory service information.
Pro Tip: Bore Cleaning
Before installing a new injector, use a dedicated injector bore brush to clean carbon buildup from the seat in the cylinder head. A dirty seat can prevent the injector from sealing properly, causing compression to leak past the copper washer and damage the injector body.
-

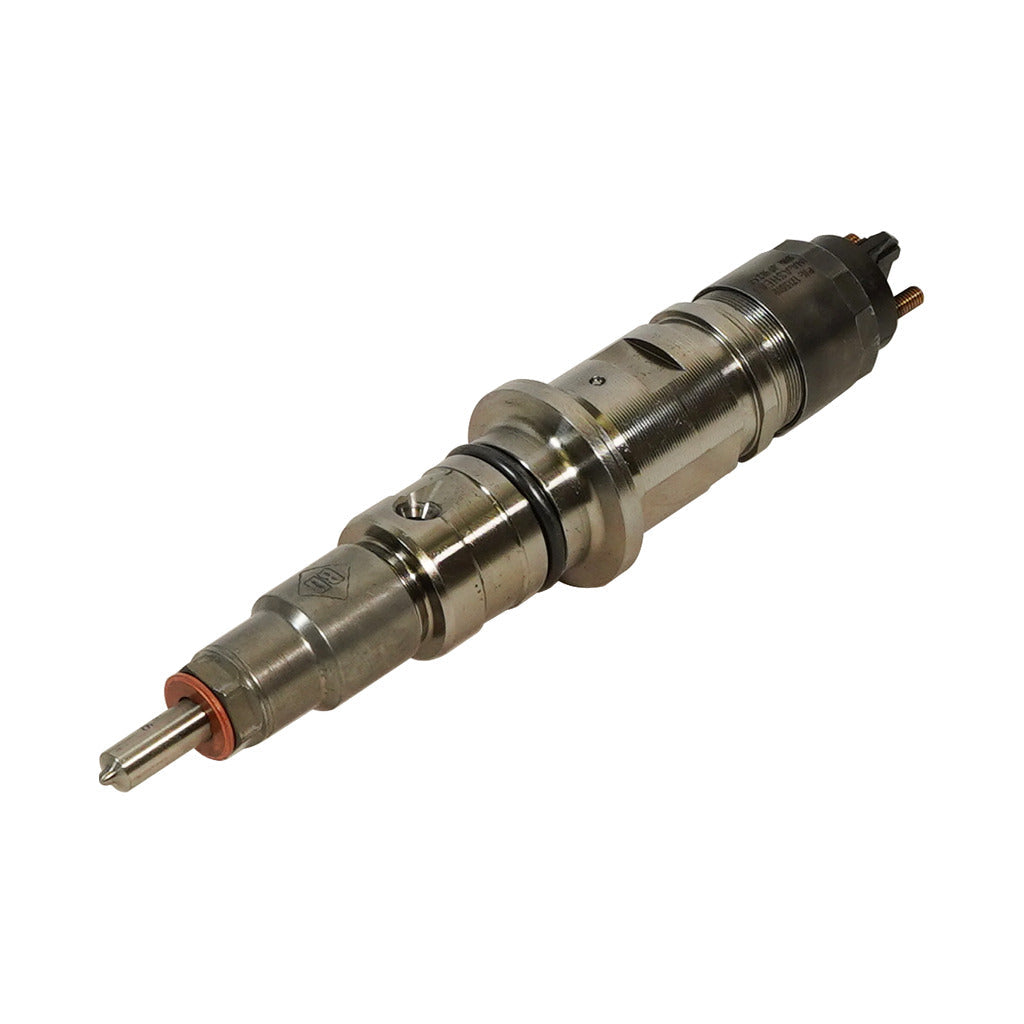

BD-Built Performance Injector | 6.7L Cummins CR | 2007.5-2018Remanufactured using new Bosch nozzles and control bodies, our injectors are calibrated on state-of-the-art equipment to a performance standard. Each set is balanced to within +/-1.5% for smooth idle and consistent power delivery. Available from stock replacement to +120HP.Shop now
-
Fuel Contamination Kit | 6.7L CumminsIf your CP4.2 pump failed and contaminated your fuel system, this kit includes everything needed for a proper repair: injectors, CP3 conversion pump, fuel rails, lines, and more. A fix-first roadmap in a box.Shop now
-
Cobra High Performance Injector Kit | 6.7L Cummins | 2007.5-2012 V2For competition and extreme street builds, our Cobra kits with large body modifications offer flow rates to support over 1000hp. These require extensive supporting modifications and are for serious builders.Shop now
FAQs
Should I replace all six injectors at once?
What is the difference between a new and remanufactured injector?
Do I need a lift pump with performance injectors?
What are injector balance rates?
Can I run one oversized injector?
What is a core charge?
How often should I change my fuel filters?
What is the FCA TSB for fuel system contamination?
Will bigger injectors give me black smoke?
Are 2007.5-2012 and 2013-2018 injectors interchangeable?
Ready for a Real Fix?
Don't guess when it comes to your fuel system. Whether you need a reliable set of stock replacements or are building a 1000hp Cummins, we have the balanced and tested injectors to get the job done right. Browse our selection or call our tech support to spec out your build.
