Is Your CP4 Pump Failing? 5 Symptoms You Can't Ignore
The Bosch CP4 high-pressure fuel pump, found in many 2011+ GM Duramax and Ford Power Stroke engines, is a critical component with a known vulnerability. Its design can lead to catastrophic, self-inflicted failure, contaminating the entire fuel system with metal debris. Recognizing the early symptoms is essential for any technician, fleet manager, or owner looking to prevent a multi-thousand-dollar repair.
What is the CP4 Pump and Why Does It Fail?
The Bosch CP4.2, commonly referred to as the CP4, features a design with a roller tappet that rides on a camshaft. The primary failure point stems from this roller and cam design. Over time, or with exposure to aerated or low lubricity fuel, metal-on-metal contact occurs. This friction causes the internal components to disintegrate, creating fine metal particles.
Unlike a simple pump failure, this event acts like a grenade, sending shrapnel throughout the entire high-pressure and low-pressure fuel system. These metal flakes contaminate the fuel rails, high-pressure lines, and most critically, the expensive fuel injectors. Simply replacing the pump is not a fix; the contamination will destroy the new pump and injectors if not fully purged.
Top 5 Symptoms of a Failing CP4 Pump
A failing CP4 gives several warning signs before total failure. Ignoring these can be the difference between a preventative upgrade and a full fuel system replacement.
1. **Low Fuel Rail Pressure DTCs:** This is the most common electronic indicator. You will see codes like P0087 (Fuel Rail/System Pressure - Too Low), P1291/P128F (Injector High Pressure Side Short To Ground), or P0088 (Fuel Rail/System Pressure - Too High) as the pump struggles to maintain pressure commands from the ECM. The engine may enter a limp mode.
2. **Engine Stalling or No-Start Condition:** As the pump's efficiency drops, it can no longer supply the required pressure to fire the injectors, especially under load. This may present as intermittent stalling that gets progressively worse, eventually leading to a crank-no-start situation.
3. **Engine Surging, Stuttering, or Hesitation:** Inconsistent fuel pressure causes the engine to surge or hesitate during acceleration. The driver may feel a lack of power, rough idling, or erratic engine behavior as the fuel control valve (FCA/MPROP) attempts to compensate for the failing pump.
4. **Abnormal Engine Noises:** A distinct, rhythmic knocking or ticking sound may be heard coming from the engine bay, localized to the CP4 pump area. This noise is often the sound of the internal cam and roller assembly beginning to fail and making hard contact.
5. **Visible Metal Flakes in the Fuel Filter:** This is a definitive sign of failure. When changing the fuel filter, inspect the filter media and the contents of the filter bowl for a fine, metallic 'glitter'. Finding this confirms internal pump destruction has begun. <span style="background-color:#FFFF00">What good looks like</span> here is a fuel sample completely free of any suspended metallic particles.
Pro-Tip: Fuel Sample Inspection
When inspecting a fuel filter for CP4 debris, don't just look in the pleats. Cut the canister open carefully and drain the contents into a clean white or clear container. Swirl the fuel and let it settle. The fine 'glitter' is often more visible suspended in the diesel fuel or settled at the bottom of the container.
Vehicle Applications for CP4 Pumps
The CP4.2 pump was used extensively in heavy-duty diesel trucks from Ford and General Motors. Always verify the specific pump installed on your vehicle, but the following applications are the most common.
| Make | Model | Engine | Years |
|---|---|---|---|
| Ford | F-250 / F-350 / F-450 / F-550 Super Duty | 6.7L Power Stroke | 2011-2022 |
| GM | Chevrolet Silverado 2500HD / 3500HD | 6.6L Duramax LML, LGH, L5P | 2011-2016 (LML, LGH), 2020-Present (L5P Denso HP4) |
| GM | GMC Sierra 2500HD / 3500HD | 6.6L Duramax LML, LGH, L5P | 2011-2016 (LML, LGH), 2020-Present (L5P Denso HP4) |
Note: While the 2017-2019 L5P Duramax uses a Denso HP4 pump, many owners still choose to replace it with a more robust CP3 for high-performance builds. The 2020+ L5P returned to a setup many techs view as being similar to the CP4 in failure modes.
Diagnosing CP4 Failure: The Real Fix Checklist
A proper diagnosis prevents wasted time and money. Use this checklist to confirm a CP4 failure.
DISCLAIMER: This guide is educational and diagnostic in nature, not a substitute for professional inspection by a qualified technician.
| Symptom | Potential Cause | Recommended Action / Real Fix Checklist |
|---|---|---|
| DTC P0087 (Low Rail Pressure) | Clogged fuel filters; failing lift pump; CP4 pump failure; leaking injector(s). | 1. Check fuel filter life. Replace if necessary. 2. Monitor lift pump pressure. 3. Scan for commanded vs. actual rail pressure. A large deviation points to a problem. 4. Check injector return rates. 5. Inspect fuel filter housing for metal debris. |
| Engine Cranks, No Start | No fuel; CP4 pump total failure; seized fuel pressure regulator. | 1. Verify fuel in tank and lift pump operation. 2. Check for rail pressure while cranking (should build to at least 2,500-3,000 PSI). If no pressure builds, suspect the CP4. 3. Pull fuel filter and check for metal. |
| Metal 'Glitter' in Fuel Filter | Catastrophic internal failure of the CP4 injection pump. | Stop. Do not attempt to start the engine. This is a definitive sign of failure. The entire fuel system is contaminated. Proceed directly to the Fix-First Roadmap. |
| Engine Surging/Hesitation | Aerated fuel; faulty fuel control actuator (FCA/MPROP); failing CP4 pump. | 1. Inspect fuel lines for cracks or loose fittings. 2. Command FCA with a scan tool and monitor rail pressure stability. 3. If stable, but symptoms persist under load, the CP4's internal volume is likely diminishing. |
Fix-First Roadmap: From Diagnosis to Solution
Once a CP4 failure with metal contamination is confirmed, a systematic approach is non-negotiable to ensure a lasting repair. This <span style="background-color:#FFFF00">fix-first roadmap</span> outlines the necessary steps.
| Step | Action | Objective |
|---|---|---|
| 1 | Confirm Diagnosis & Stop Operation | Verify metal contamination by inspecting the fuel filter and fuel sample. Do not run the engine further to prevent more damage. |
| 2 | Scope the Full System Damage | Assume all components are contaminated. Plan for removal and replacement/cleaning of the fuel tank, lines, rails, and injectors. |
| 3 | Remove Contaminated Components | Systematically remove the injection pump, injectors, fuel rails, high-pressure lines, and drop the fuel tank. Cap all open ports immediately. |
| 4 | Clean or Replace Components | Replace all high-pressure lines, fuel rails and injectors. Thoroughly flush or replace the fuel tank and low-pressure lines. Replacement is always the safest option for critical components. |
| 5 | Install Permanent Solution | Install a BD Diesel CP3 Conversion Kit in place of the factory CP4. This replaces the failure-prone pump with a proven, robust design. |
| 6 | Final Assembly & Priming | Reassemble the system, install new fuel filters, and follow proper factory procedures to prime the fuel system to avoid dry-running the new components. |
The Definitive Fix: BD Diesel's CP3 Conversion Kit

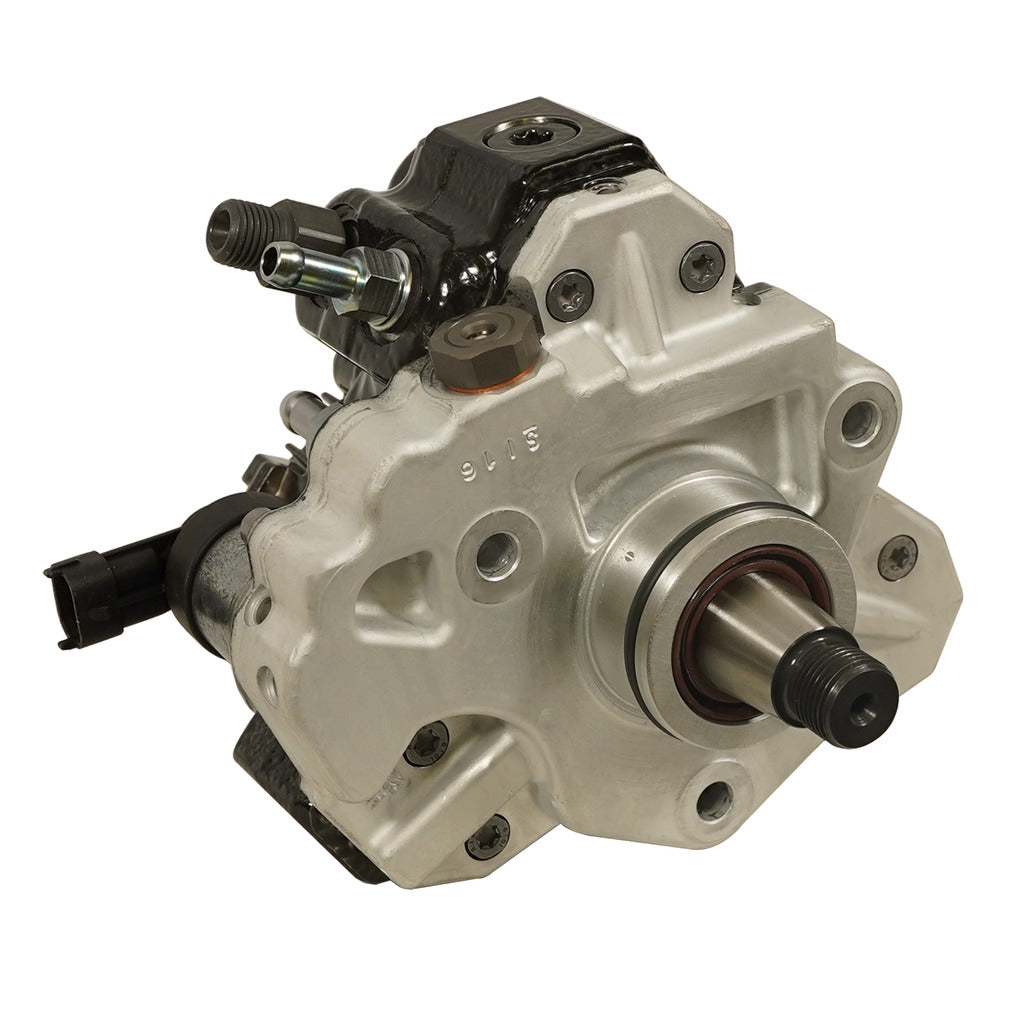

Instead of replacing a failed CP4 with another pump of the same flawed design, the permanent solution is converting to the Bosch CP3. The CP3 pump, used in earlier 2001-2010 Duramax and 2003-2018 Ram Cummins trucks, is legendary for its durability and reliability. Its internal design is fundamentally more robust and does not suffer from the same catastrophic failure mode as the CP4.
A BD Diesel CP3 Conversion Kit provides everything required to make the swap. This isn't just a replacement part; it's a long-term reliability upgrade for any work truck, fleet vehicle, or daily driver.
Proven Reliability
The CP3 has a track record spanning millions of miles in demanding applications. It is internally lubricated by engine oil and lacks the fragile roller-and-cam design of the CP4.
Complete, Engineered Kits
BD kits include the CP3 pump, a high-flow fuel supply line, a durable wiring harness adapter, and all necessary hardware and seals for a direct-fit installation.
Protect Your Investment
Converting to a CP3 proactively or after a failure protects your injectors, engine, and wallet from the catastrophic damage a CP4 can cause.
Always verify fitment, torque procedures, and service intervals in your owner manual and factory service information before beginning any repair.
-
Duramax LML CP3 Conversion KitComplete kit to replace the failure-prone CP4 with a durable CP3 pump on 2011-2016 GM 6.6L Duramax LML engines. Includes pump, lines, and all required hardware.Shop now
-
Ford 6.7L Power Stroke CP3 Conversion KitSafeguard your 2011-2022 Ford 6.7L Power Stroke by converting the stock CP4 pump to a reliable CP3. Includes everything needed for a seamless installation.Shop now
-
CP4 Disaster Prevention KitsFor those not ready for a full conversion, these kits add a bypass that redirects failed CP4 metal debris back to the tank instead of to the injectors, limiting damage.Shop now
FAQs
What specifically causes a CP4 pump to fail?
Can I prevent CP4 failure without converting to a CP3?
How much does it cost to fix a CP4 failure?
Is a CP3 conversion really better than just installing a new CP4?
Will a CP3 conversion affect my truck's performance or fuel economy?
What's the main design difference between a CP3 and a CP4?
Do I absolutely have to replace my injectors after a CP4 failure?
Is a lift pump required with a CP3 conversion?
Does the BD Diesel CP3 conversion kit require custom tuning?
What's the difference between a CP4 disaster prevention kit and a CP3 conversion?
Don't Risk A Catastrophic Fuel System Failure
A failing CP4 pump isn't a 'wait and see' problem. It's a ticking time bomb for your engine and your budget. Protect your investment with the industry's most trusted solution. Upgrade to a BD Diesel CP3 Conversion Kit and drive with confidence.
