If you tow in the mountains, haul heavy for work, or drive a diesel that spends time on long descents, an exhaust brake isn’t a “nice to have.” It’s one of the best tools for control: holding speed downhill, reducing service brake heat, and keeping the truck stable when the road gets steep. This guide breaks down how exhaust brakes work, the two main styles you’ll see on pickups, and how to choose (and use) the right setup.

Quick Summary: An exhaust brake slows the engine by creating exhaust restriction (backpressure) so the engine becomes an air pump that resists rotation. The two common approaches are VGT-based braking (using turbo vanes) and valve-style braking (a butterfly valve in the exhaust). The best results come from the brake plus correct tow strategy: gear selection, lockup behavior, and keeping temps under control.

Jump to: What an exhaust brake is • How it works • VGT vs valve-style brakes • When you actually need one • How to use it (real-world towing) • Why your exhaust brake feels weak • How to pick the right BD kit

Shop BD Exhaust Brakes: BD Diesel Exhaust Brake Collection
Tip: Open that collection and filter by your platform (Cummins / Power Stroke / Duramax) and year range to see the correct options and fitment notes.

What Is an Exhaust Brake?

An exhaust brake is an engine braking device that helps slow a diesel without relying solely on the wheel brakes. Instead of converting motion into heat at the brake pads and rotors, the exhaust brake uses the engine’s own pumping work to resist rotation. In simple terms: it makes the engine work harder to push air out, and that resistance becomes braking force.

This matters most when you’re heavy: a trailer behind you, a load in the bed, or a service body that turns every hill into a heat test for your brakes. Exhaust braking helps you maintain a controlled descent at a safer speed and reduces “brake fade” risk from overheated friction brakes.

How Exhaust Brakes Work (Plain Language)

Diesels don’t create strong engine braking like gas engines just by lifting off the throttle, because they don’t have a throttle plate restricting intake air the same way. An exhaust brake creates exhaust restriction so the engine must push against backpressure on the exhaust stroke. That turns the engine into a controlled air compressor/air pump that absorbs energy—slowing the truck.

What you’ll feel when it’s working:
  • Noticeable “hold back” on downhill grades without constant brake pedal input.
  • Better speed control when you downshift and keep RPM in the effective range.
  • Less brake smell and less heat in the wheels after long descents.

Two Main Styles: VGT-Based vs Valve-Style Exhaust Brakes

1) VGT-Based Exhaust Braking (Turbo Vane Control)

Many modern diesels use a Variable Geometry Turbocharger (VGT). By closing the vanes under decel, the turbo creates backpressure and braking force. This approach can be very effective, especially when paired with the right gear and converter lock strategy.

  • Pros: No additional exhaust valve required; can be strong when healthy.
  • Cons: If the VGT is sticky, worn, or soot-loaded, brake performance drops.
  • Best for: Tow rigs that already have a VGT and want “factory-style” braking behavior.

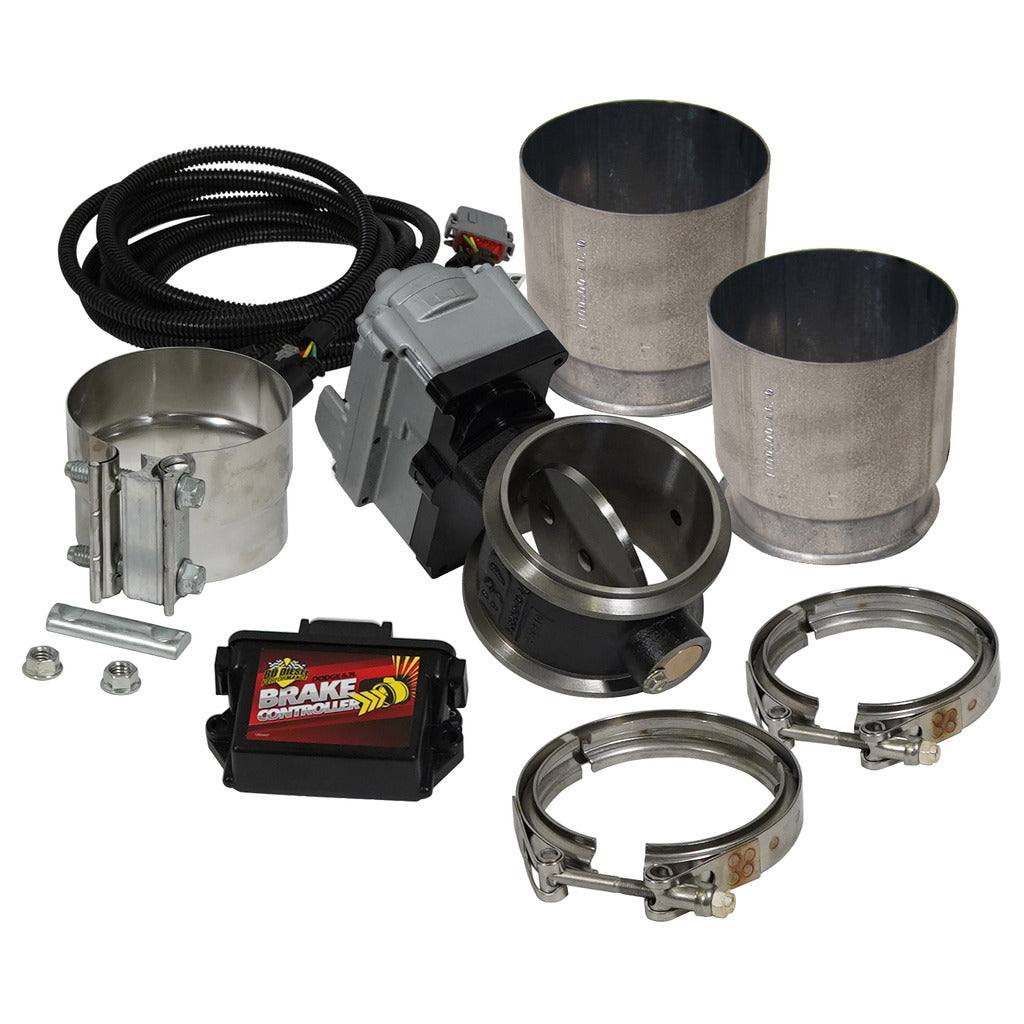

2) Valve-Style Exhaust Brakes (Butterfly Valve)

A valve-style brake uses a controlled butterfly valve in the exhaust stream to create restriction. In many applications, this gives very consistent results because the restriction is created mechanically in the exhaust path.

  • Pros: Predictable braking feel; strong downhill control for towing.
  • Cons: Requires correct installation, wiring/control strategy, and exhaust compatibility.
  • Best for: Trucks where consistent downhill control is a priority (work/tow duty).

When Do You Actually Need an Exhaust Brake?

Plenty of diesel owners buy an exhaust brake because it’s “cool,” then realize it’s actually a safety tool. Here’s when an exhaust brake is worth the money—because it changes the driving experience in a real way:

  • You tow in the mountains or routinely descend long grades.
  • You haul heavy daily (work truck, hotshot, RV, equipment).
  • Your brakes run hot or you’ve experienced fade or pulsation after long downhill braking.
  • You want more control and less hunting between “too fast” and “too much brake.”
Honest truth: If your truck is mostly short trips and light loads, you might not “need” an exhaust brake. But if your truck’s job involves weight and hills, it’s one of the best upgrades you can make for confidence and brake life.

How to Use an Exhaust Brake Like a Pro (Towing Strategy)

The best exhaust brake in the world won’t feel strong if the transmission is in the wrong gear, the converter is unlocked, or the engine is lugging at low RPM. Exhaust braking is all about keeping the engine in the zone where it can create meaningful pumping loss.

Real-world descent routine:
  1. Set your speed early. Don’t wait until you’re too fast to start braking.
  2. Downshift proactively. Get RPM up into the effective range before the steep part.
  3. Stabilize lockup behavior. Unstable lockup = heat and inconsistent braking feel.
  4. Use short service-brake inputs to correct speed, not continuous dragging.
  5. Watch temps. If EGTs or trans temps climb unexpectedly, reassess gear/load strategy.

This is also where shift control tools matter. Some platforms benefit from manual gear control to prevent hunting and keep the truck in the right gear. For example, BD’s TapShifter kits are designed to give gear control at your fingertips for towing and grade control (and some applications support lockup control in higher gears). If you’re already shopping exhaust braking solutions, consider whether you also need better shift strategy for your truck’s job.

Why Your Exhaust Brake Feels Weak (Common Causes)

A “weak exhaust brake” is usually not one single failure. It’s often a systems issue: turbo health, exhaust leaks, wiring/controls, or the transmission not cooperating. Here are the most common real-world reasons:

  • Exhaust leaks upstream (leaks reduce the backpressure the system can create).
  • Sticky VGT vanes or actuator issues (for VGT-based braking).
  • Wrong gear / lugging RPM (braking force drops dramatically at low RPM).
  • Converter staying unlocked or hunting lockup (inconsistent braking feel and extra heat).
  • Restriction or sensor strategy issues that prevent the system from commanding full braking.
Fast check: If braking is strong sometimes and weak other times, suspect strategy/conditions (gear, RPM, lockup). If it’s consistently weak, suspect hardware (leaks, VGT health, valve function, control wiring).

How to Choose the Right BD Exhaust Brake

The correct exhaust brake is the one that matches your platform, year range, and use case. BD kits often include the hardware and control strategy needed for a clean install, but every platform has its own notes: emissions compatibility, fitment constraints, and whether you’re combining braking with shift-control or other towing upgrades.

Start here (BD collection): BD Diesel Exhaust Brake
Shop smart: Open product pages and read the “NOTE” section carefully (fitment, legality, display compatibility, programming notes). That “NOTE” section is where you avoid ordering the wrong part.

FAQ

Will an exhaust brake hurt my engine?
When correctly designed and installed for the platform, exhaust braking is a normal towing tool. The key is using it properly (gear/RPM strategy) and keeping the system maintained.

Does it replace my service brakes?
No. It reduces how often you need them and how hot they get, which is exactly what you want on long descents.

Why does it feel better in some gears?
Engine braking depends on RPM and how the transmission is holding the driveline. Downshifting into the right range is part of “making it work.”

What about emissions legality?
Always check the product page notes for your year and state/province requirements. Some products are 50-state legal; others have restrictions.

Bottom line: Exhaust brakes are about control, not hype. If your truck tows or hauls, they’re one of the best upgrades for downhill safety and brake longevity. Pair the hardware with good shift strategy, keep leaks and turbo health in check, and your truck will feel calmer on every grade.
