EGR, DPF & SCR: How Modern Diesel Emissions Work—and How to Keep Them Happy

Understand the team: EGR reduces NOx formation in-cylinder, the DPF traps soot, and SCR handles tailpipe NOx. When one is unhappy, the others compensate—until they can’t. Keep the system reliable with the right maintenance and diagnostics.

Quick Summary: Clean air data (MAF/MAP) → accurate EGR behavior • Healthy EGR = lower soot → happier DPF • Good DEF quality/dosing = less EGR stress. Diagnose the system, not just a part.

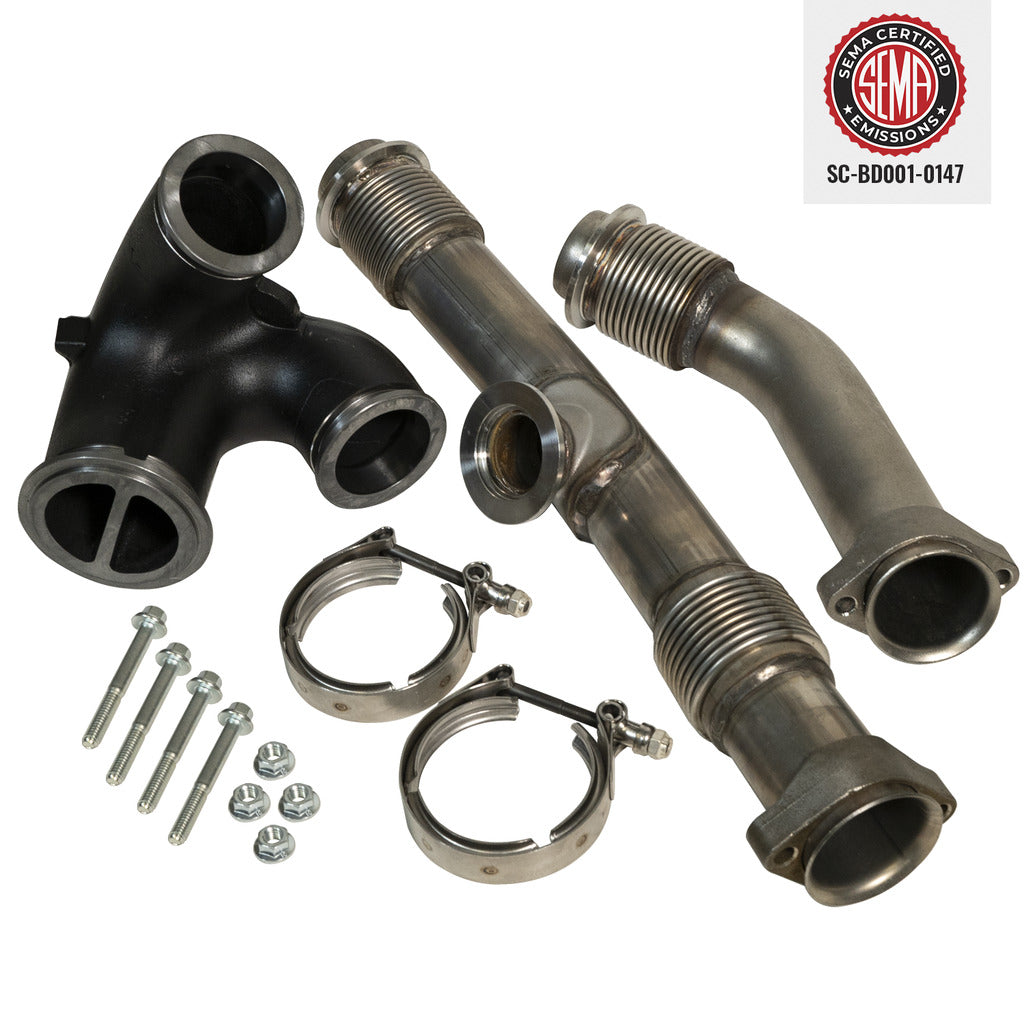

EGR Hardware 101

  • EGR valve: Meters flow; sticking causes stumble/smoke.
  • EGR cooler: Drops exhaust temp; internal leaks cause steam/coolant loss.
  • Sensors: Differential pressure, temp, and position validate flow.

DPF & SCR Basics

  • DPF: Traps soot and regens (passive/active) to ash.
  • SCR: DEF injection converts NOx to N₂ + H₂O; bad DEF causes faults and strategy changes.

Common Complaints & Root Causes

Complaint Often Root Cause First Steps
Frequent regens Insufficient EGR control, boost leaks, poor drive cycle Fix air leaks, clean MAP/MAF, verify EGR command/actual
White steam, coolant loss EGR cooler internal leak Pressure/dye test cooling system
NOx codes after DEF service DEF contamination/quality or dosing Check DEF quality, injector pattern, lines

Maintenance That Pays Off

  • Replace air filters on time; smoke-test the charge tract annually or after turbo work.
  • Clean MAP/MAF sensors with appropriate cleaner (never brake/carb spray).
  • Monitor regen frequency; repeated aborted regens point to driving pattern or upstream faults.
  • Use fresh DEF (sealed, unexpired); keep the cap on to prevent contamination.

System-First Diagnostic Playbook

  1. Pull codes and freeze-frame data; note temps, load, and speed.
  2. Visual inspection: EGR plumbing, CAC boots, exhaust joints, harnesses.
  3. Command EGR, watch differential pressure and position feedback.
  4. Assess DPF soot load/backpressure; verify DOC light-off behavior.
  5. Check DEF quality/dosing; inspect NOx sensor plausibility.
  6. Road test; correlate EGR command with MAF/MAP changes.
Compliance Matters: On-road emissions tampering is illegal and often hurts long-term reliability. Many BD upgrades—manifolds, balanced turbos, deep pans—improve durability while keeping the system compliant.
Related BD Gear: Hi-silicon manifolds to stop pre-turbo leaks, Screamer turbos for efficient drive pressure, and deep pans for better thermal control.
