The Ford 5R110W TorqShift, found behind 6.0L and 6.4L Power Stroke engines, was a significant step-up from the 4R100. However, increased power levels, heavy towing, and component age expose its inherent weak points. This guide provides a fix-first roadmap for diagnosing common failures and understanding what good looks like in a remanufactured 5R110 transmission.
5R110W TorqShift Overview & Applications
Introduced in the 2003 model year Super Duty, the 5R110W TorqShift was Ford's answer to the demand for a more robust and intelligent automatic transmission for their trucks. It features five forward gears, with an alternative 4th gear (a downshifted overdrive) that gives it six available gear ratios in certain conditions, improving grade logic and powertrain braking. The 'W' in its name signifies a wide gear ratio spread, beneficial for both launching heavy loads and efficient highway cruising.
Its fully electronic control system, integrated with the TCM and PCM, allows for adaptive shift strategies. The transmission 'learns' driving style and adjusts shift pressure and timing accordingly. While innovative, this complexity also introduces potential failure points not seen in older, hydraulically controlled units.
| Model Year | Engine | Vehicle |
|---|---|---|
| 2003-2007 | 6.0L Power Stroke Diesel | Ford Super Duty F-250, F-350, F-450, F-550 |
| 2008-2010 | 6.4L Power Stroke Diesel | Ford Super Duty F-250, F-350, F-450, F-550 |
| 2005-2010 | 6.8L Triton V10 | Ford Super Duty F-250, F-350, F-450, F-550 |
| 2003-2005 | 5.4L Triton V8 | Ford Excursion |
| 2003-2005 | 6.8L Triton V10 | Ford Excursion |
Early 2003-2004 5R110W models had some internal differences, including a 20-lug coast clutch drum, compared to the 24-lug version found in 2005+ models. Always verify your specific model year when ordering parts or complete units.
Common 5R110W Failure Points: A Real Fix Checklist
Diagnosing transmission issues requires looking at the complete system. Symptoms often overlap, but tracking them back to the root cause is key to a lasting repair. Here are the most common failures we see in our shop and what it takes to correct them permanently.
| Symptom | Common Cause(s) | The Fix |
|---|---|---|
| Harsh or delayed shifts, erratic shift behavior | Solenoid body failure; Sticking valves in the valve body; Incorrect adaptive learn data. | Replace with a tested solenoid pack and remanufactured valve body with oversized valves. Perform adaptive memory reset. |
| Slipping in forward or reverse gears, delayed engagement | Worn/burnt clutches (Direct, Forward, Overdrive); Low line pressure from a worn pump. | Full rebuild with high-quality clutch packs. BD Diesel uses premium Borg Warner T-cell clutches. Inspection and machining of the pump assembly. |
| No Overdrive (5th gear) | Failed Overdrive clutch pack; Damaged OD clutch hub; Solenoid failure. | Full teardown and inspection. Replacement of OD clutches and potential hub upgrade. Solenoid and valve body inspection. |
| Torque converter codes (P0740, P0741), shudder, overheating | Delaminated converter lock-up clutch; Worn stator bushings; Failed turbine hub. | Replace with a furnace-brazed, reinforced BD Torque Converter with an improved billet stator and clutch design. |
| Catastrophic failure, no movement | Internal fluid leak from cracked case (less common); Major pump failure; Shattered torque converter. | Complete teardown, case inspection, and replacement with a fully remanufactured unit like a BD Roadmaster or Tow/Track Master. |
Diagnosing Torque Converter & Pump Failures
The torque converter is the single most common failure point in a 5R110W, especially in trucks with added horsepower or those used for heavy towing. The stock converter's stamped steel construction and single-disc lockup clutch are not up to the task of handling increased torque and heat. When it fails, it sends debris throughout the entire system, contaminating the valve body, solenoids, cooler, and fresh clutch packs.
Pump Wear and Line Pressure Loss
The transmission pump is the heart of the hydraulic system. The 5R110 features a robust gear-style pump, but contaminants from a failing converter can score the pump body and gears. This wear creates internal leaks, leading to a drop in line pressure. Low pressure results in slow engagement, clutch slippage, and eventually, burned clutches. Any proper rebuild must include a thorough inspection of the pump assembly, with replacement or machining of surfaces to ensure proper tolerances are met.
PRO TIP: CHECK YOUR COOLER FLOW
A restricted or contaminated transmission cooler is a leading killer of new transmissions and converters. Debris from a prior failure gets trapped in the cooler and will be sent directly into your new unit upon startup. Always flush and flow-test the cooler system, or better yet, replace it entirely. BD offers high-efficiency cooler kits for this exact reason.
Solenoid Body & Valve Body Issues
The 5R110's brain is its solenoid pack, which translates commands from the TCM into hydraulic action. These solenoids can fail electronically or mechanically, causing a host of shift quality issues. Underneath the solenoid pack is the valve body, a labyrinth of channels and valves that direct fluid flow.
Over time, regulator and shuttle valves wear down their bores in the soft aluminum valve body. This wear allows critical line pressure to escape, starving clutches and causing erratic, harsh, or soft shifts. A simple solenoid swap won't fix a worn valve body.
For reference, Ford issued TSB 09-22-13 addressing harsh/soft shifts related to the solenoid body strategy and identification. Always ensure the correct solenoid body is matched to the vehicle's calibration during any service.
What Good Looks Like: The BD Diesel 5R110 Fix-First Roadmap
At BD, we don't just replace parts; we engineer solutions to prevent failures from reoccurring. Our 5R110 build process is a fix-first roadmap designed to address every known weak point in the factory design. Each transmission is dyno-tested on our in-house transmission dynamometer to verify pressures, shift points, and torque converter operation before it ships.
| Component | Stock Weakness | BD Diesel Upgrade and Solution |
|---|---|---|
| Torque Converter | Single-disc clutch, stamped cover, plastic stator. | Furnace-brazed fins, billet cover, new sprag, and multi-disc (Tow/Track Master) or enhanced single-disc (Roadmaster) clutch with billet stator. |
| Valve Body | Soft aluminum bores wear, causing pressure loss. | Valve body is machined to accept larger, steel sleeve valves, creating a more durable seal and restoring hydraulic integrity. Every unit is tested. |
| Solenoid Pack | Prone to failure, causing shift quality issues. | Completely new solenoid pack is installed on every transmission. No used or reconditioned solenoids are ever used. |
| Clutch Packs | OEM clutches can't handle high heat/torque. | Premium Borg Warner or Raybestos clutch packs are used, with increased counts in critical areas for higher torque capacity and heat dissipation. |
| Pump Assembly | Prone to scoring from converter debris. | Pump is fully inspected and machined. Gears are replaced as needed to ensure perfect line pressure and flow. |
| Case & Internals | Stock snap rings can pop out of place. | A revised heavy-duty spiral snap ring is used to secure the intermediate clutch, preventing it from popping out under high pressure. |
Roadmaster vs. Tow/Track Master: Which Build is Right for You?
Choosing the right build level depends entirely on your truck's application. We've designed two distinct packages to meet the needs of different owners, from daily drivers to heavy haulers and performance builds.
Roadmaster Series
The ideal solution for stock to lightly modified trucks used for daily driving and moderate towing. The Roadmaster features a BD single-disc torque converter, our remanufactured valve body, a new solenoid pack, and upgraded clutches. It's designed for reliability and improved performance over stock.
Tow & Track Master Series
Engineered for heavy towing, fleet vehicles, and high horsepower applications. This build includes all the Roadmaster upgrades plus a triple-disc enhanced stall torque converter for superior lock-up, an extra clutch and steel in the overdrive and intermediate packs, and a billet intermediate shaft for ultimate durability.
Installation Best Practices & Break-In
Proper installation is critical to the longevity of your new transmission. Rushing the process or skipping steps is the fastest way to damage a new unit. Pay close attention to the following procedures.
- **Cooler & Line Flush:** Thoroughly flush the transmission cooler and lines to remove all debris from the previous failure. For best results and full warranty coverage, replace the cooler assembly.
- **Torque Converter Seating:** Ensure the torque converter is fully seated into the transmission pump. You should feel three distinct 'clunks' as it engages the input shaft, stator support, and pump gears.
- **Fluid Fill Procedure:** Fill with the correct fluid (MERCON SP or LV as specified) to the proper level. Start the engine and cycle through all gears, then recheck the fluid level with the transmission at operating temperature.
- **Reset Adaptive Memory:** Use a capable scan tool to clear the Transmission Adaptive Tables. This forces the TCM to start a fresh learning process with the new hardware, ensuring proper shift quality.
This guide is educational and diagnostic in nature, not a substitute for professional inspection. Always verify fitment, torque procedures, and service intervals in your owner's manual and factory service information.
-
5R110W Roadmaster Transmission & Converter Package | 08-10 6.4L Ford Power StrokeA complete, dyno-tested transmission and single-disc torque converter package engineered for reliability in stock to moderately powered 6.4L Power Stroke trucks.Shop now
-

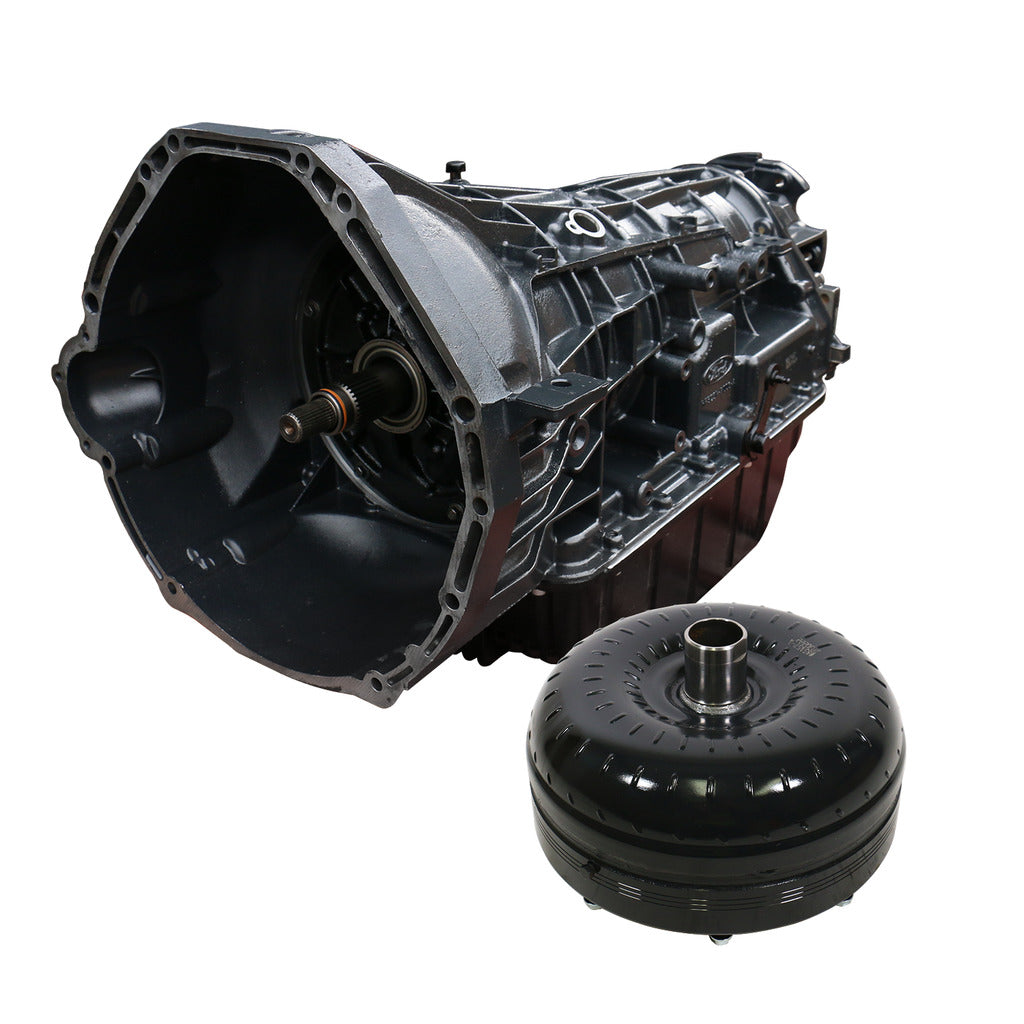

5R110W Tow & Track Master Transmission & Converter Package | 05-07 6.0L Ford Power StrokeOur premier build for heavy towing and high-performance 6.0L applications, featuring a triple-disc converter, increased clutch counts, and billet components.Shop now
