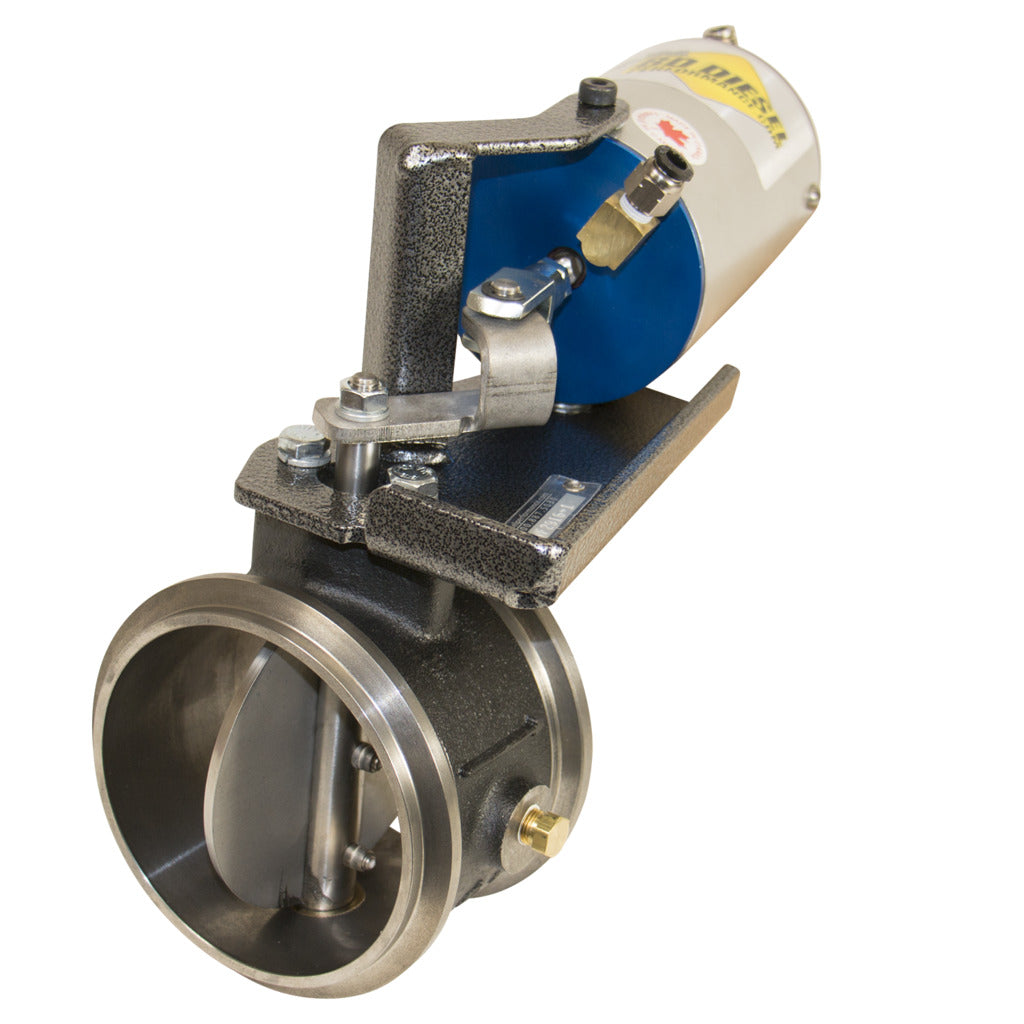

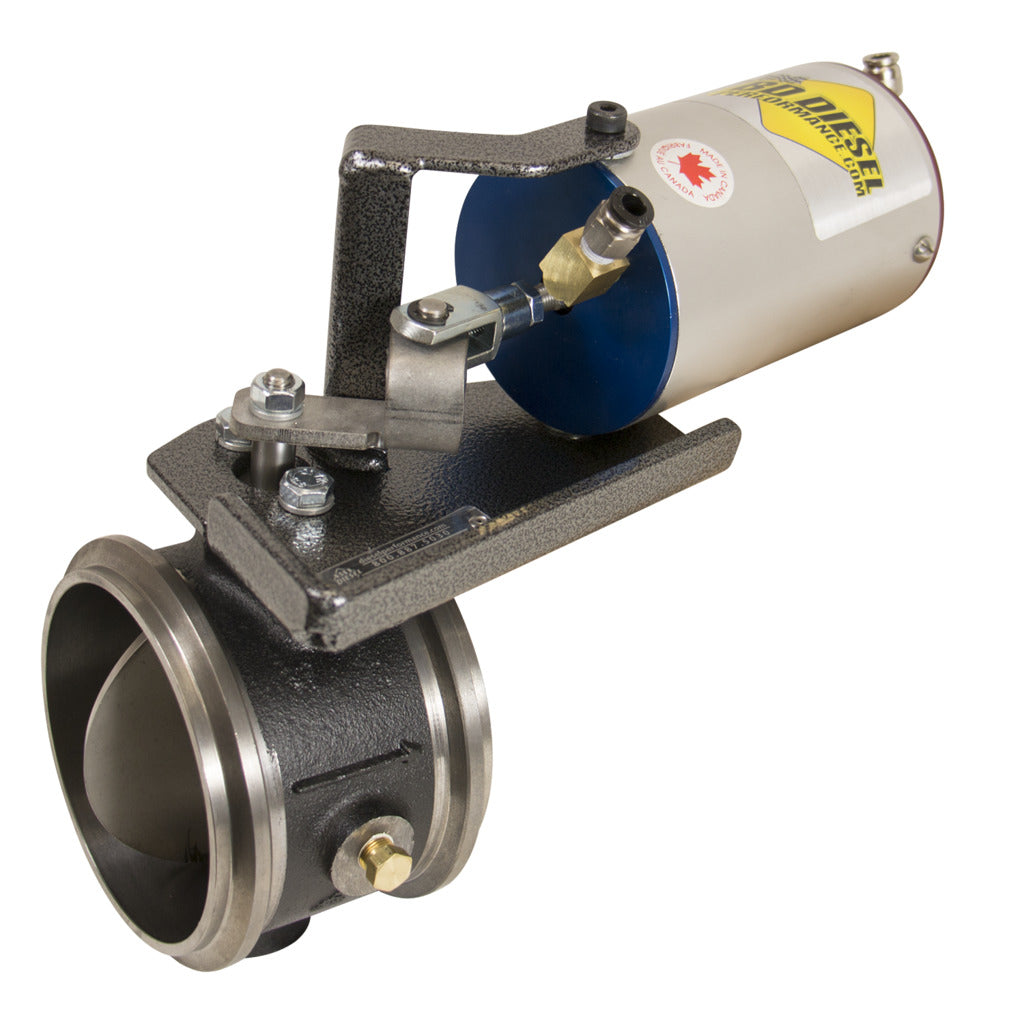

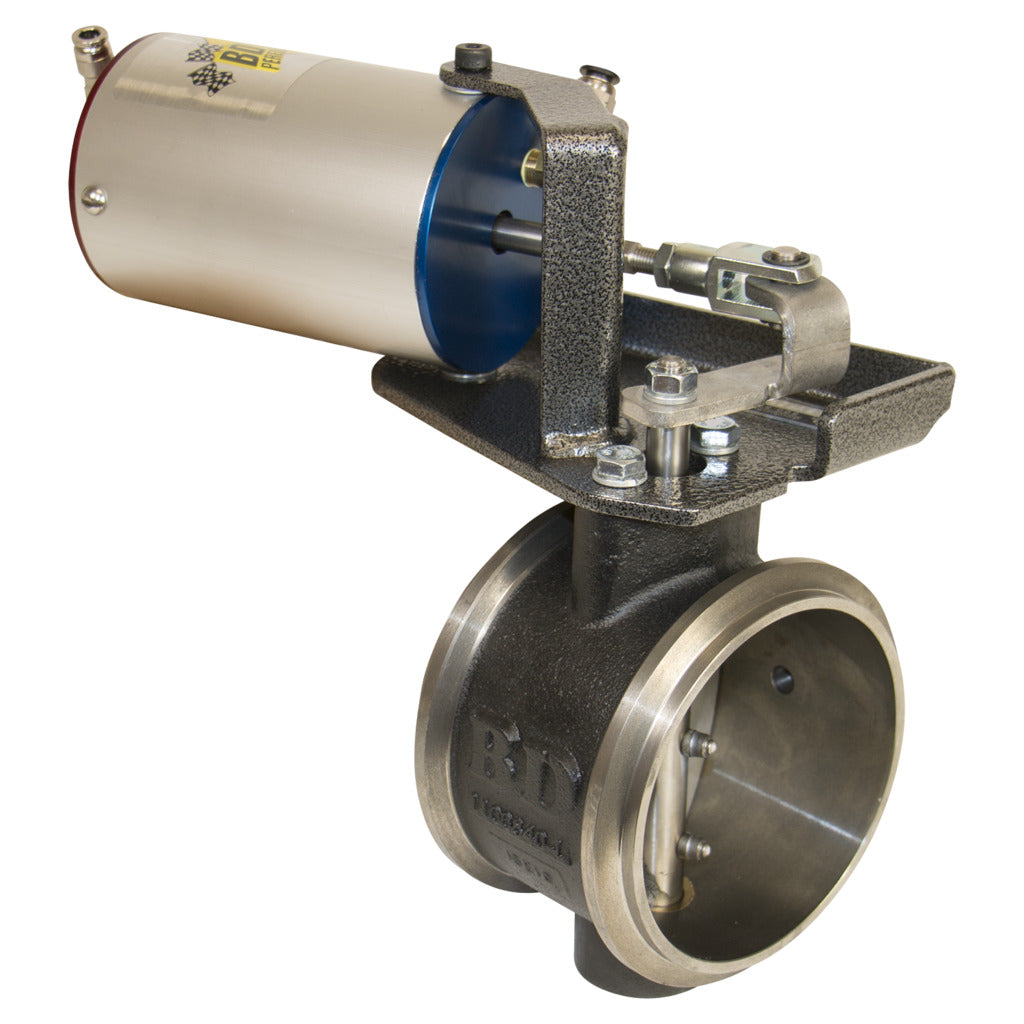

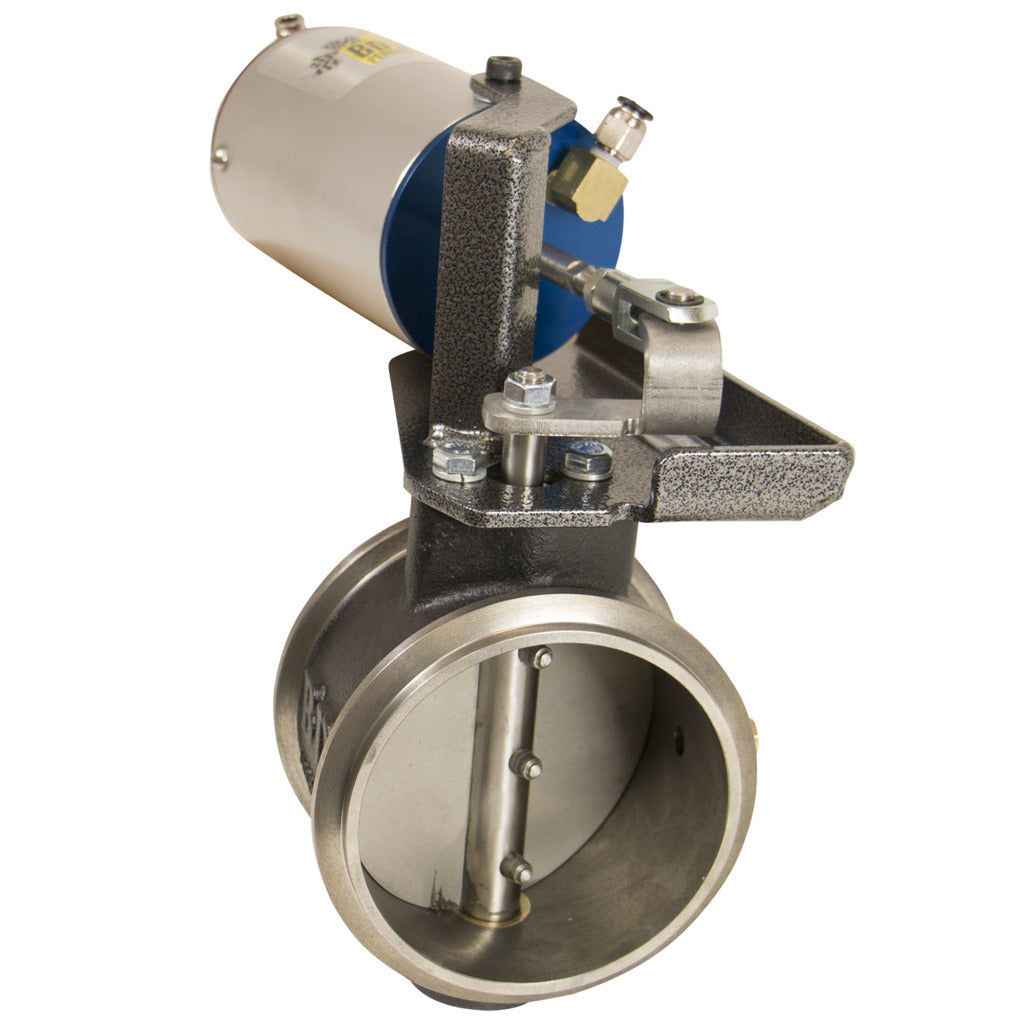

EXHAUST BRAKE w/APPS REMOTE MOUNT VACUUM CONTROLLED 60psi 4-INCH EXHUAST DODGE 24-VALVE 5.9L CUMMINS 1998.5-2002

• BD's exclusive Variable Orifice Technology

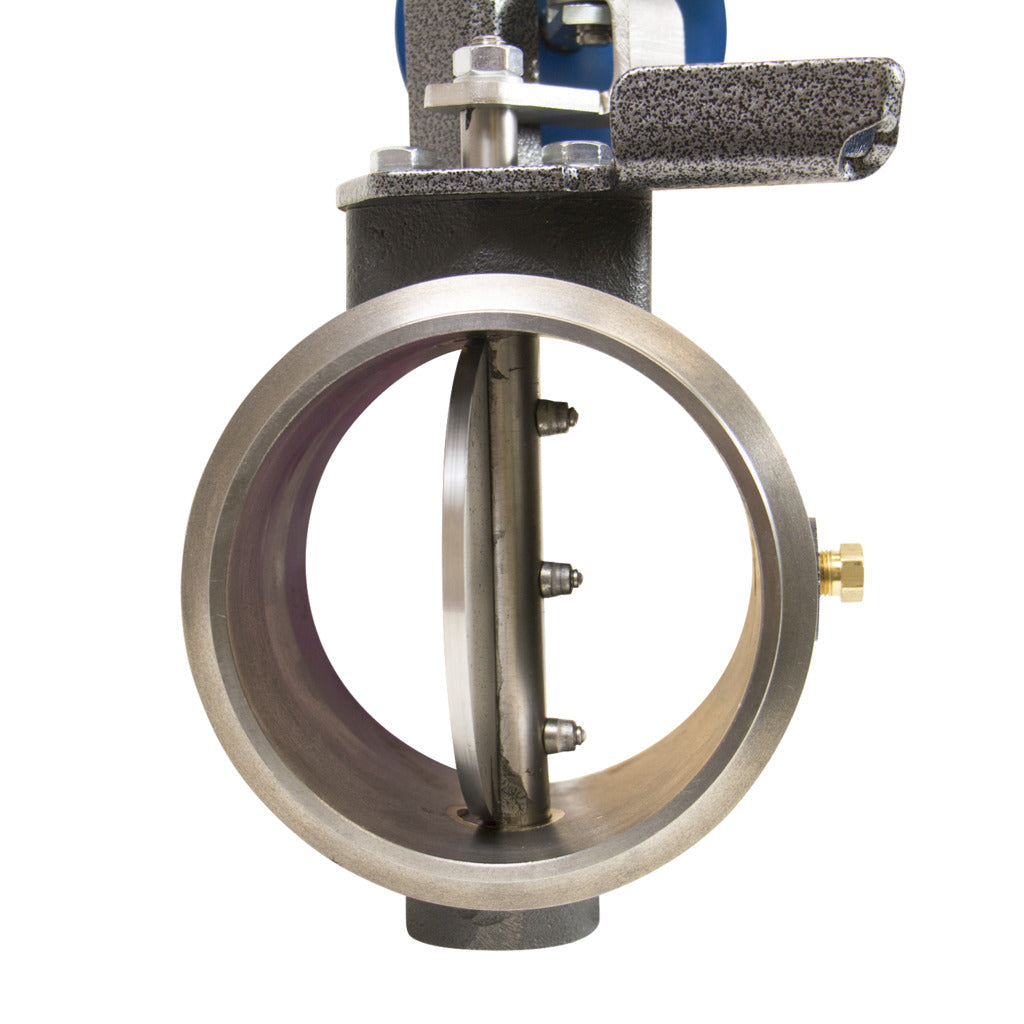

• BD's solid, offset butterfly

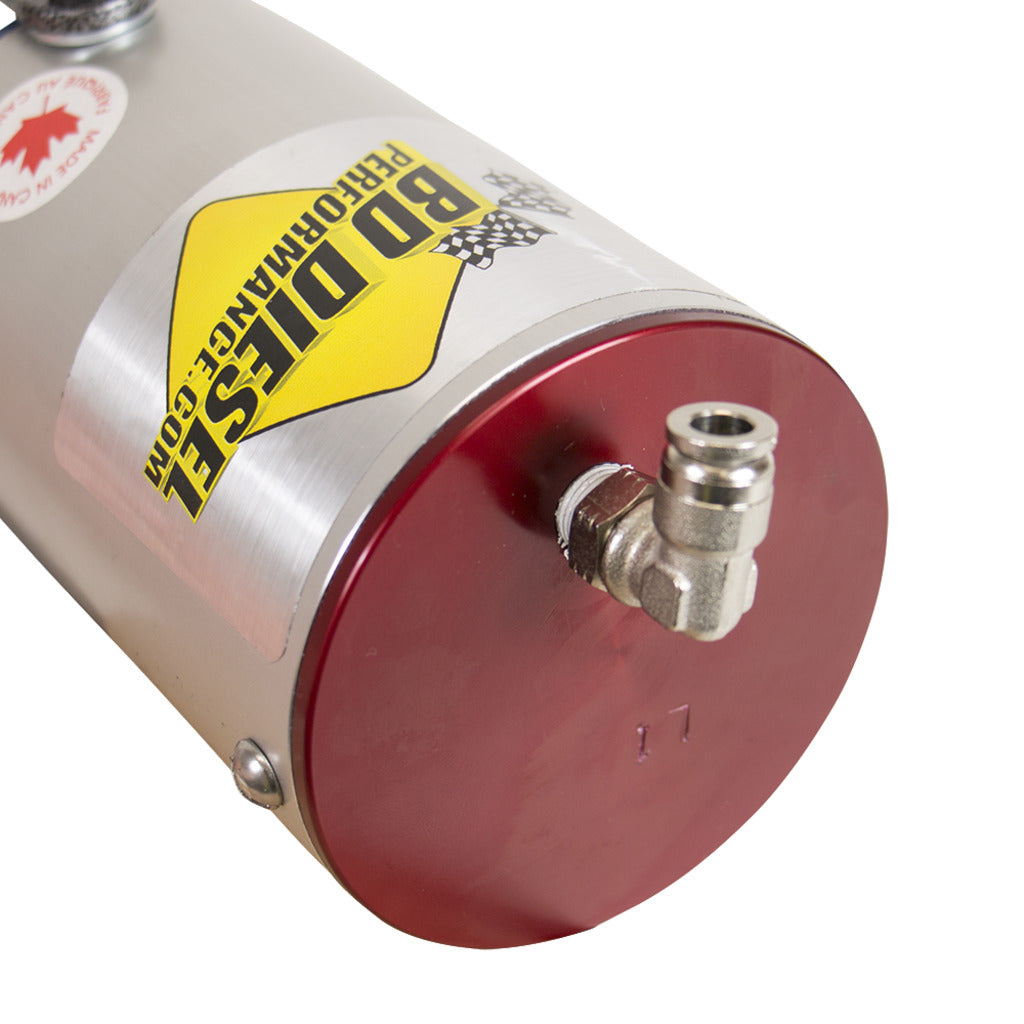

• Spring loaded cylinder
• Pressure regulation
• Provides up to 150 retarding horsepower throughout the engine's RPM range
• Rugged, cast-iron housings
• BD's exclusive alumibronze bushing
• Piston ring-seals
• Stainless steel butterfly shaft
• Proven to stand-up under the harsh, high heat conditions of the exhaust environment
• All mounting hardware are made of corrosion resistant stainless steel
• There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.

It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.

INSTALL TIME

• 4 Hours

WARRANTY

Parts

• 24-Months
• 24,000 Miles

Labour

• 12-Months
• 12,000 miles

NOTE

• 1989-1993 turbo mount brakes require 1040050 down pipe kit
• 1989-1998 12-valve engines require 1030060 exhaust valve spring kit
• 1996-1998 "California" spec engines with EGR require 1030030 Kit
• Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
• Not for sale on licensed California vehicles
• Trucks with automatic transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters

EMISSIONS

• This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
