KILLER GRID HEATER UPGRADE KIT DODGE/RAM 6.7L CUMMINS 2500/3500 PICK-UP 3500/4500/5500 CAB & CHASSIS 2007-2024

$219.95
$219.95

HIGH
DEMAND!
ORDER NOW AND WE'LL
PRIORITIZE YOUR SHIPMENT
EST. SHIP DATE: Call for more information
LIMITED
STOCK
ONLY AVAILABLE
EST. SHIP DATE: Call for more information
LIMITED
STOCK
ONLY AVAILABLE
EST. SHIP DATE: Call for more information
IN STOCK!
AVAILABLE
EST. SHIP DATE: Call for more information

Features

  • Eliminates both problematic nuts found in the OE grid heater by fastening directly into the lower busbar
  • Allows for full heat output with the stock intake grid heater
  • Fully emissions compliant
  • Easy installation with minor modification required for 2007-2012 applications (see note in About This Product section below)
  • Kit includes replacement hardware and gaskets, along with special tools required for the job
  • Self-locking threads built into the lower busbar which will prevent the connection from backing out and compromising electrical connection
  • Patent pending
  • SEMA Certification No. SC-BDD01-0135

About This Product

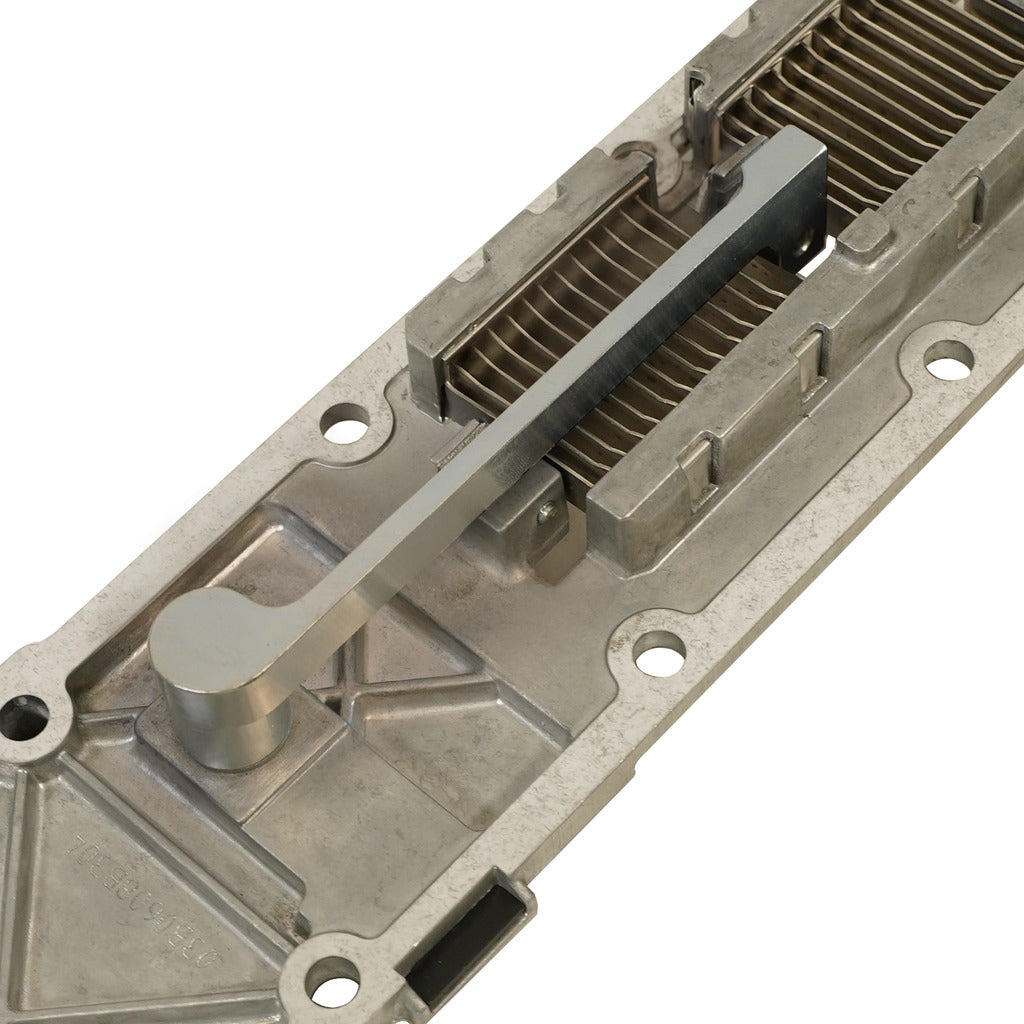

The Killer Grid Heater Upgrade Kit is purpose-built to address a major flaw in the 6.7L Cummins engine that can result in total engine destruction. The problem lies in the electrical connection to the intake grid heater. When powering the grid heater, 200 amps pass through a small bolt and nut inside the intake and, over time, is known to deteriorate and eventually arc and break off. This nut drops into the engine, leading to extensive damage to the piston, head, and valves. Several solutions are currently on the market addressing this issue, but they are costly upgrades. They drastically reduce the heat available to the engine and typically require tuning, or they don't work well in cold climates. This kit upgrades that flawed electrical circuit by eliminating the problematic bolts and nuts inside the intake while retaining the stock functionality of the heater, and it is cost-effective and easy to install.

Warranty & Notes

Install Time

INSTALL TIME

  • 3 Hours

Warranty

WARRANTY

Parts

  • 12-Months

Notes

NOTE

  • 2007-2012 applications require the use of a Dremal or hacksaw to remove an aluminum tab on grid heater (See installation manual for detailed instructions)
  • SEMA Certification No. SC-BDD01-0135

Emissions

EMISSIONS

  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
KILLER GRID HEATER UPGRADE KIT DODGE/RAM 6.7L CUMMINS 2500/3500 PICK-UP 3500/4500/5500 CAB & CHASSIS 2007-2024

$219.95
  • 5 stars: 50 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
S
S.P.

Exactly as described. Super quick shipping. Thank you

D
Dave Wanhella
Intake grid heater update

It worked out well . I’m a little bit disabled at the time but I still managed and the instructions were very helpful. I want to update the rest of the system with the air intake and boost tubes and all that and new turbo with manifold. Definitely buying from your business. Thanks Dave

J
Jim

Install was easy and now i don't have to worry

T
Todd Elliott
Great product

Everything needed to install was included. Actually putting in the kit was easy. Hard part is getting to the grid heater. Turns out my original nut was just fine but at least I don’t have to worry about it anymore.

J
James Phennicie
Top Notch!

Easy installation. All parts are captive, so no worry about parts falling in the intake. Works better than original equipment.

B
Brent Jackman
KILLER GRID HEATER UPGRADE KIT

Straight forward clean Install. Thanks for providing the torque values.

S
SETH HOPPER
Grid Heater Upgrade Kit

reasonable price, and a much more affordable option than the Banks full kit. Instructions were solid and the fitment of parts was perfect. 10/10 would recommend for anyone looking to resolve their grid heater failure points on a 6.7 Cummins.

G
Guy

Great product. 👍

R
Ross Woodhouse
Great Product

Although my bolt was still in good condition, It’s something I don’t have to worry about any more. Good step by step instructions

K
Kris Randall
Great product

Excellent! Very helpful instructions.

J
Jose maria Samilpa
Excellent product

amazing, and delivery was sooner then expected.

J
Jeff Barnes
I would definitely buy from you again

Peace of mind knowing it’s a better option than ordinary

A
Andrew Richard Chapell
Ram grid heater fix

Parts are high quality. Instructions are adequate, but some of the instructions are not necessarily in the right order. Some steps are out of sequence but if you are even slightly mechanically inclined you can figure it out.
$200 and an afternoon in the garage is a small price to pay for peace of mind that the grid heater bolt won’t burn off and ruin your engine. Great product.

L
Luke Adams
Good product.

Everything in the kit seems to be of good quality. Unfortunately this problem is something Ram or Cummins should address, but here we are. Install was fairly straight forward, I did it in my driveway with basic tools. Only thing that could improve the kit would be if they included a crush gasket for the EGR crossover pipe. Mine was damaged and I had to order a new one, which extended the completion of this project from one day to four days waiting on a gasket.

K
Kelly Luttrell
Did two trucks product easy to install works great

Excellent product

L
Luis Gutierrez
Awesome product

It is for sure an upgrade to the oem grid heater, good material.

R
ROBERT SMITH
THE ALL FORGOTEN SCHOOL BUS

SAVE'S SO MUCH MONEY DOING THIS RATHER THAN A ENGINE SAY'S RAM BUT SAME PROBLEM IN ALL 6.7 CUMMINS SOME ONE SHOULD SHOUT THIS FROM THE ROOF TOP IT IS SO NEEDED

C
Chris Wall
Killer grid heater upgrade kit dodge ram 6.7

It was easier than I thought it would be to do.everything went smoothly. The kit looks 100% better beefier then the one that was in there.

P
Paul Carney
Nice product

Well made and great quality

M
Mike Gray
Killer grid heater upgrade

Very easy to deal with, great product, easy instructions. BD Diesel is my go to place for upgrades to my 2019 Cummins.

H
Harlan Sisco
Nice Folks

Nice customer support more than willing to help you with questions about the product . The only thing I would change is to give the name of the shipping company with the tracking number . Good product, good people.

R
Robert Watts
Great product

Fast delivery and quality Grid heater fix for 2018 Ram 6.7 Cummins

B
Brandon Zackrie
Works Really Well A+

Works really good, I feel confident there won't be any issues, better than the banks kit.

S
Scott Doran
Super Easy

Great ! No problems! Fit like glove.

M
Michael McElroy
Worth the money

Mechanic installed with no issues

M
Matthew Jones
Very well made kit

Very well made kit, easy directions.

C
Curtis McAleer
Almost perfect

The heater went in well, and has worked great all winter. The almost is that it needs to come with the egr gasket as well.

C
Carmen Inzitari
Great product!

Perfect fit and a nicely built part overall. The only criticism I would give is I didn’t realize the wrench and torque bit for removing the old grid heater were included in the kit. It’s my own fault because it is included in the kit parts list. But maybe include a note on that step in the instructions for dummys like me. Thanks for the great product and saving my motor from the death nut.

A
And Maccallum
High quality parts

I had an excellent experience with BD and will be a returning customer. Also will recommend to anyone needing parts.

A
Andrew Nisbet
2018 Ram 3500 Grid Heater

Easy install for someone that’s mechanically inclined. Takes more than 3 hours though.

B
Brian Peters
Killer grid heater upgrade kit

Looks to be a great product. Comes with everything needed and has good instructions.

What vehicles does this Killer Grid Heater Upgrade Kit fit?

This kit is designed for 2007-2024 Dodge/Ram 2500/3500 Pick-up and 3500/4500/5500 Cab & Chassis trucks with the 6.7L Cummins engine.

What problem does this upgrade kit solve?

It addresses a flaw in the OEM grid heater where the stud and nut inside the intake can break off, potentially causing severe engine damage to the piston, head, and valves.

Does this kit require engine tuning or modifications for installation?

No, the Killer Grid Heater Upgrade Kit is designed for easy installation without the need for modifications or tuning.

Will this upgrade kit cause engine codes?

No, this kit is engineered to avoid triggering engine codes P2609 and P0542.

What is included in the Killer Grid Heater Upgrade Kit?

The kit includes replacement installation hardware, gaskets, and special tools necessary for the job.

How long does the installation take?

The estimated installation time for this upgrade is 3 hours.

Does this kit maintain the stock heater's performance?

Yes, it allows for the worry-free use of the stock heater at full power (2400W), unlike some alternatives that drastically reduce heat output.

How does the kit prevent corrosion?

The kit features a tin-plated upper busbar and a zinc-plated lower busbar to prevent corrosion.

What is the 'Killer Grid Heater' problem on the 6.7L Cummins?

The factory intake grid heater uses a stud and nut inside the intake plenum that can loosen or fail after repeated heat cycles and vibration. In severe cases, the nut can enter cylinder #6 and cause catastrophic engine damage to the piston, valves, and cylinder head.

Will this cause check engine lights?

No. The kit is designed to retain normal grid heater operation and does not trigger common grid heater diagnostic trouble codes such as P2609 or P0542.
