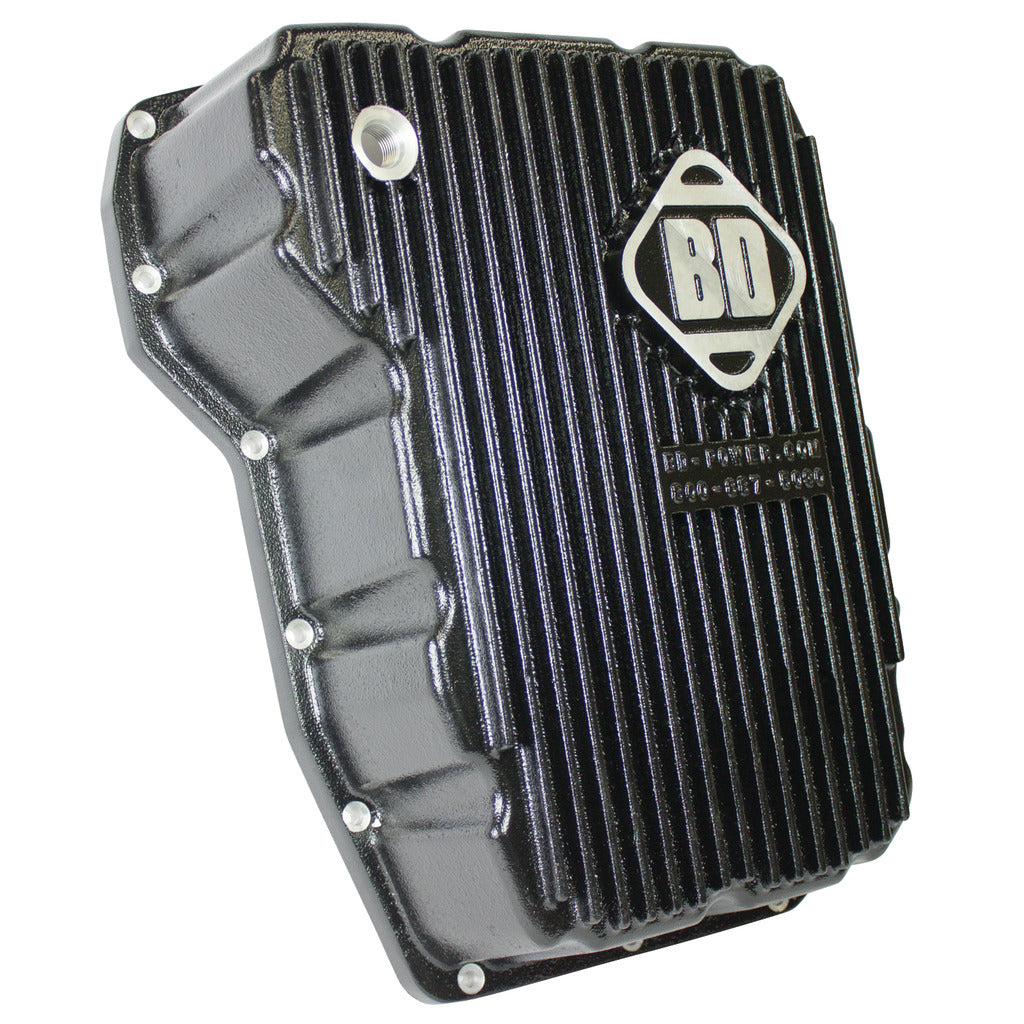

Deep Sump Trans Pan Dodge Cummins 68RFE 2007.5-2024 / 545RFE 2002-2011

$363.95
$363.95

HIGH
DEMAND!
ORDER NOW AND WE'LL
PRIORITIZE YOUR SHIPMENT
EST. SHIP DATE: Call for more information
LIMITED
STOCK
ONLY AVAILABLE
EST. SHIP DATE: Call for more information
LIMITED
STOCK
ONLY AVAILABLE
EST. SHIP DATE: Call for more information
IN STOCK!
AVAILABLE
EST. SHIP DATE: Call for more information

Features

  • High volumes of cool oil equate to long transmission life
  • Pans increase oil capacity
  • Aluminum construction and heat-dissipating fins keep temperature down
  • Increased rigidity prevents case twisting
  • Kit includes a magnetic drain plug and temperature sending unit port
  • Adds 4.5qt!
  • Dodge 2008-2024 6.7L 68RFE
  • Dodge Ram 1500 HEMI 2002-2005 545RFE
  • Dodge Ram 4.7L 2002-2011 545RFE
  • Dodge Dakota 4.7L 2000-2004 545RFE
  • Dodge Durango 4.7L 2000-2003 545RFE
  • Jeep Grand Cherokee 4.7L 2000-2004 545RFE

About This Product

High volumes of cool oil equate to long transmission life. BD's transmission pans increase oil capacity, while their aluminum construction and heat-dissipating fins keep temperature down. As an added bonus, the pan's increased rigidity prevents case twisting. Kit includes screws, plugs, a magnetic drain plug, OEM style gasket and temperature sending unit port.

Warranty & Notes

Install Time

INSTALL TIME

  • 1 Hour 30 Minutes

Warranty

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles

Notes

NOTE

  • Will fit most 545RFE transmissions with HEMI and 4.7L engines where exhaust crossover pipe, frame cross member or catalytic converter do not interfere.

Emissions

EMISSIONS

  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
Deep Sump Trans Pan Dodge Cummins 68RFE 2007.5-2024 / 545RFE 2002-2011

$363.95
  • 5 stars: 3 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jacob
Beautiful Product, easy install.

Just about hit 120,000 miles and it was time for a transmission service, decided to get the BD deep pan for the added capacity and cooling, and got a ATS Thermal bypass. Reason for the brand difference was just price. The install of the pan was pretty straightforward, putting it up after removing everything was easy, I did have to move the transmission cooling lines out of the way, bolting it up was easy. When putting in the temp gauge plug it was pretty difficult and I definitely used more then 20 in lbs to tighten it but it does not leak and I guess I’ll never remove it. I also messed up and rounded off the plug a little bit while putting it on so don’t be an idiot like me. Over all I think it looks great my temps are around 135, which is the same as before but I’ve heard of people getting a lot higher. Also the gasket worked very well. AND if you are doing a thermostat bypass at the same time aswell as the filter change I ended up adding about 16 qts of ATF to refill it which is more then what the instructions call for so just something to think about if you are buying ATF online.

J
Jeffrey Cribben
Good product

Easy installation and definitely helps keep temps down

T
Terry L Higginbotham
GET 1!

Installed on my 2017 cummins 2500. Took a trip to Las Vegas doing 90 mph in 115° outside Temps. My gauge showed the transmission never exceeded 167°. Well worth the money!
