Deep Sump Trans Pan Chevy Duramax Allison 1000

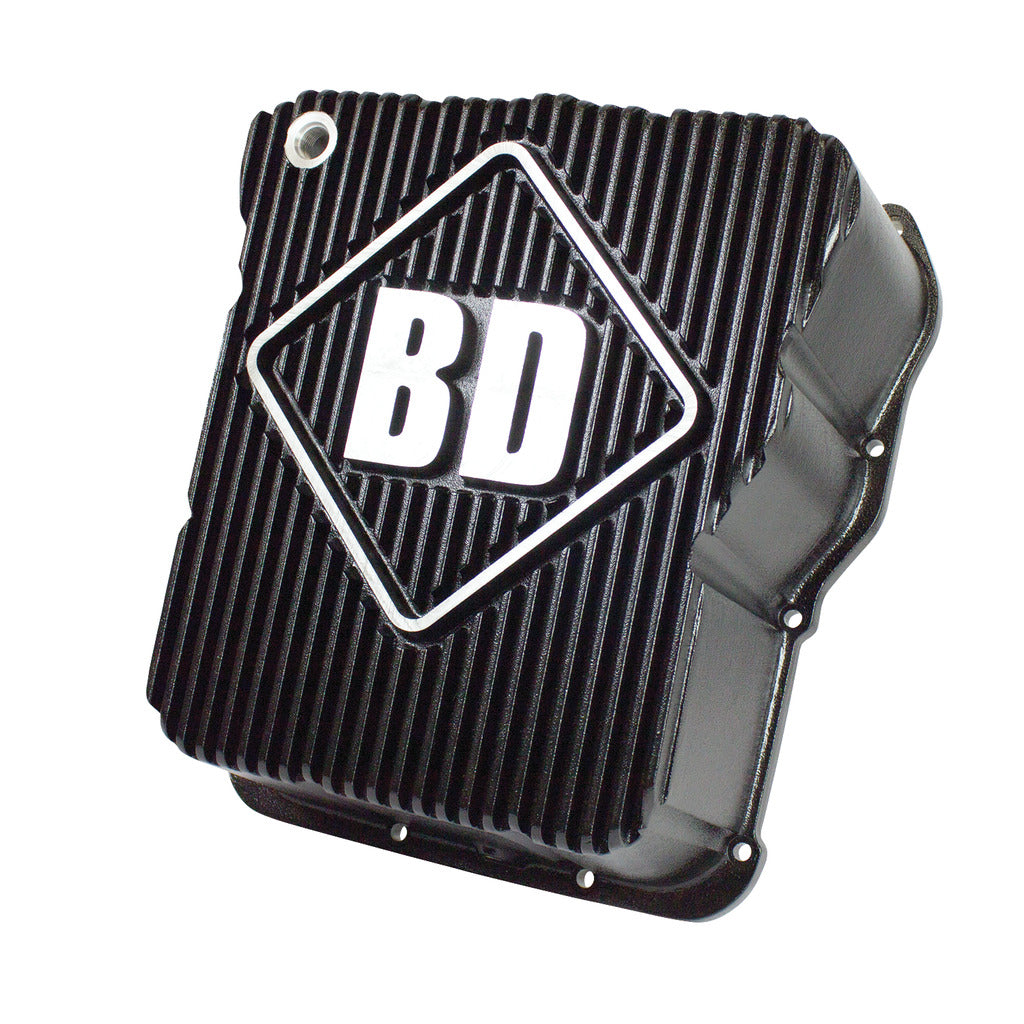

This deep sump pan fits 2001–2005 Chevrolet Silverado and GMC Sierra 2500/3500 HD trucks equipped with the 6.6L Duramax engine and the 5-speed Allison 1000 automatic transmission. It is a direct-fit replacement for the factory pan on these specific models. — The BD Diesel pan (part #1061650) is specifically engineered for the first-generation Allison 1000 transmission cases found behind the LB7 (2001–2004) and LLY (2004.5–2005) Duramax engines. It will not fit the later 6-speed Allison transmissions that were introduced in the 2006 model year (LBZ) without modification or different hardware. The bolt pattern and pan rail shape are unique to this early Allison 1000 series. Always confirm your truck's model year and transmission type before ordering to ensure compatibility.

This deep sump pan increases the Allison transmission's fluid capacity by 4 US quarts (3.78 Liters) over the stock pan. This significant increase in oil volume is critical for managing heat during demanding use. — The additional 4 quarts of fluid provide a much larger thermal reserve, meaning the transmission takes longer to heat up and cools down more effectively. This is especially beneficial for trucks used for towing heavy trailers, hauling significant weight, or modified for higher horsepower. The pan's cast aluminum construction and external cooling fins work together with the extra fluid to dissipate heat more efficiently than the stock stamped steel pan, helping to prevent fluid breakdown and extend the life of your transmission's clutches and internal components.

The kit includes the cast aluminum deep transmission pan itself, a magnetic drain plug, and an O-ring for the plug. It does not include a new pan gasket or mounting bolts; you will need to reuse your factory bolts and are advised to purchase a new gasket. — Installation is straightforward for a qualified mechanic or experienced enthusiast and typically takes 1-2 hours. You will need standard hand tools including a socket set, a torque wrench, a gasket scraper, and a large drain pan. The process involves safely draining the old fluid, removing the 20 bolts holding the stock pan, cleaning the transmission's gasket mating surface thoroughly, and installing the new BD pan. It is critical to use a new Allison-specific gasket (not silicone/RTV) and torque the OEM bolts to the factory specification, typically around 20-22 ft-lbs, in a crisscross pattern to ensure a leak-free seal. After installation, you will need to refill the transmission with approximately 4 extra quarts of a TES-295 specification synthetic fluid in addition to the stock refill quantity.

This pan offers significantly improved cooling, increased structural strength for the transmission case, and simplified maintenance compared to the stock unit. It's an upgrade focused on durability and longevity under load. — Beyond just holding more fluid, the BD deep sump pan provides several key advantages: — • Superior Cooling: The T6 heat-treated cast aluminum body and large external fins act as a heat sink, actively pulling thermal energy out of the transmission fluid far more effectively than the thin, flat factory steel pan. • Increased Rigidity: The thick, robust casting reinforces the Allison transmission case, helping to prevent it from flexing or twisting under high torque loads. This case flex is a known issue that can lead to premature failure of internal components. • Easier Fluid Service: It includes a powerful magnetic drain plug that not only makes fluid changes cleaner and faster but also traps ferrous metal particles, allowing for early detection of internal transmission wear during service. • Data & Monitoring: A built-in 1/8-NPT (National Pipe Thread) port is included, allowing for the easy installation of an aftermarket temperature sensor sender. This enables you to monitor transmission temperatures in real-time with an accessory gauge, a crucial function for any truck that tows.

The BD Diesel 1061650 pan is engineered as a direct-fit component for stock-height 2001-2005 GM HD trucks and should not create clearance issues with factory crossmembers or exhaust systems. The design adds depth vertically downwards, away from most critical components. — While this pan is approximately 2 inches deeper than the stock unit, its profile is designed to fit within the available space on the specified truck platforms. It is compatible with most aftermarket exhaust systems that follow the stock routing, including common 4-inch and 5-inch kits. However, if your truck has a significant suspension lift that alters the subframe geometry or features a highly customized exhaust that runs directly under the transmission pan, you should measure your specific clearances before installation. For the vast majority of applications, from stock to moderately modified, this pan bolts on without interference.
