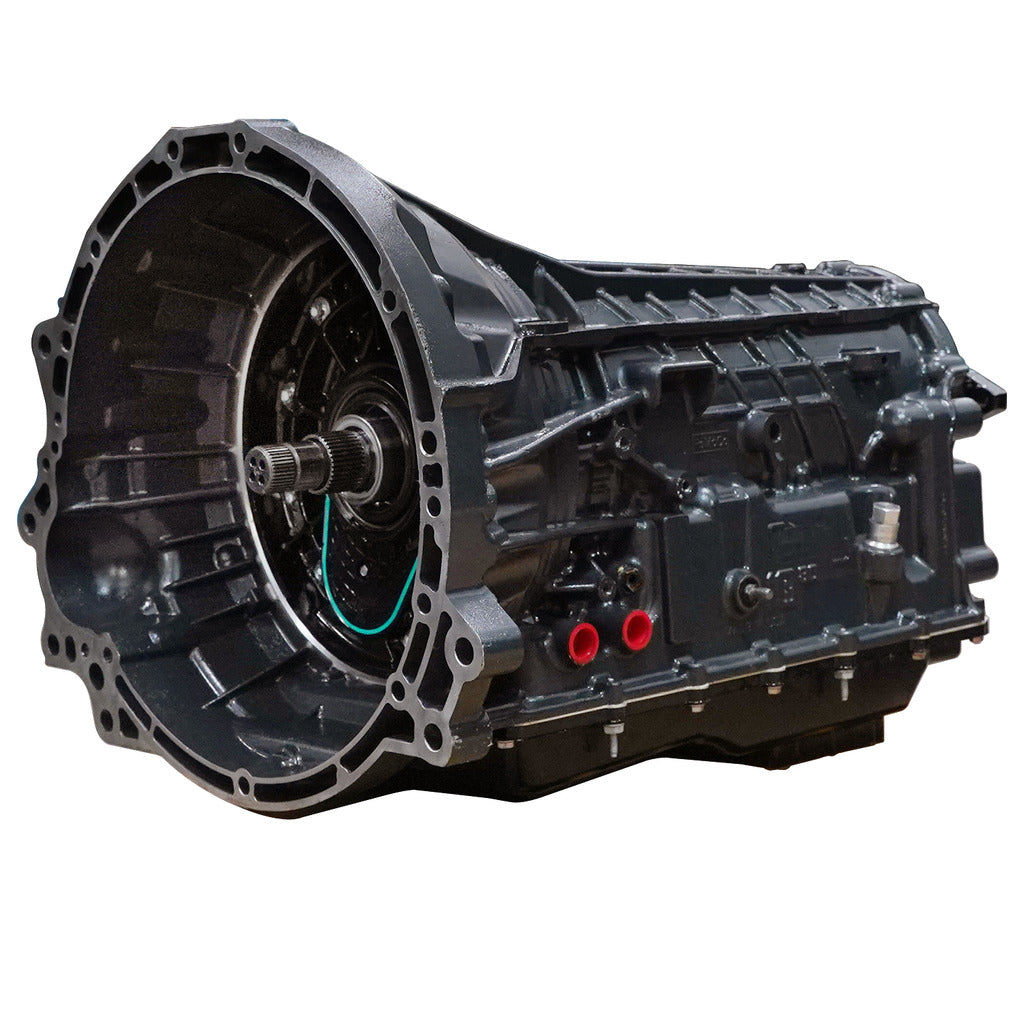

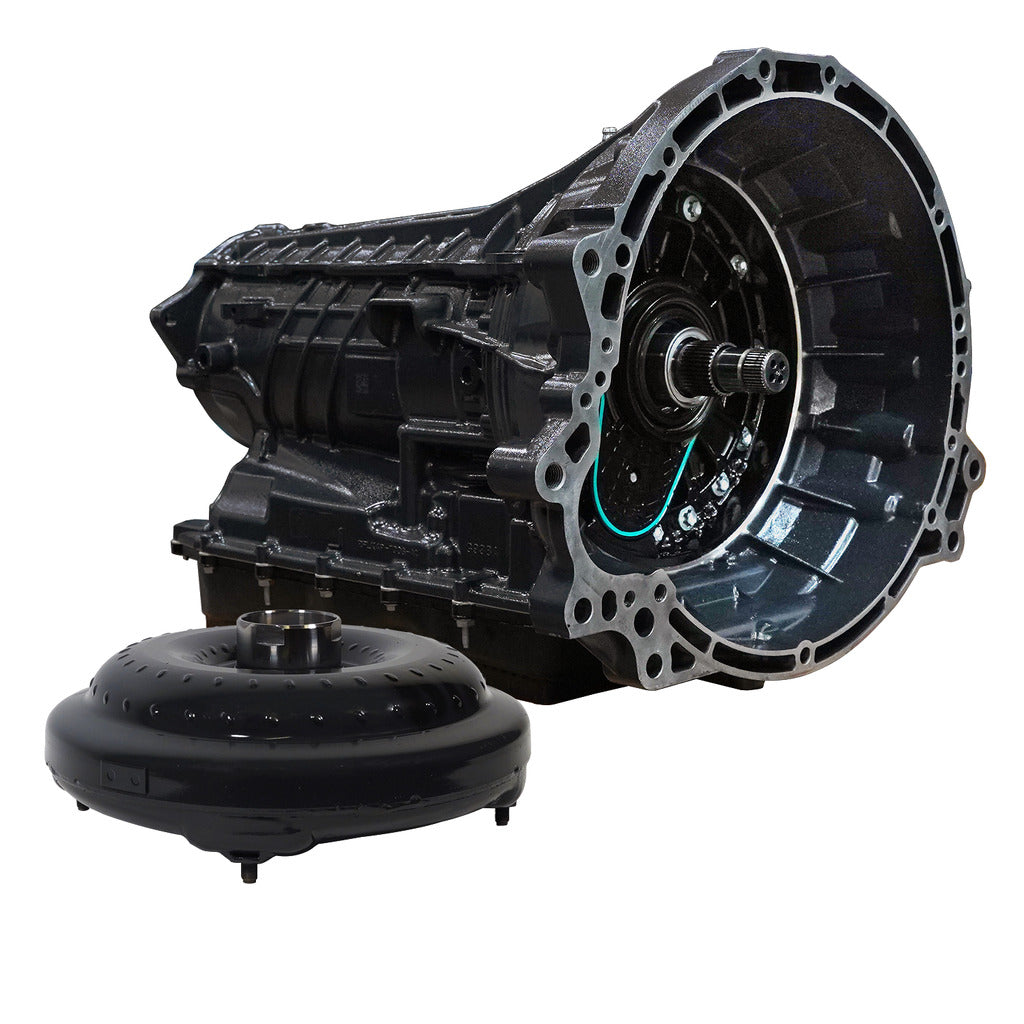

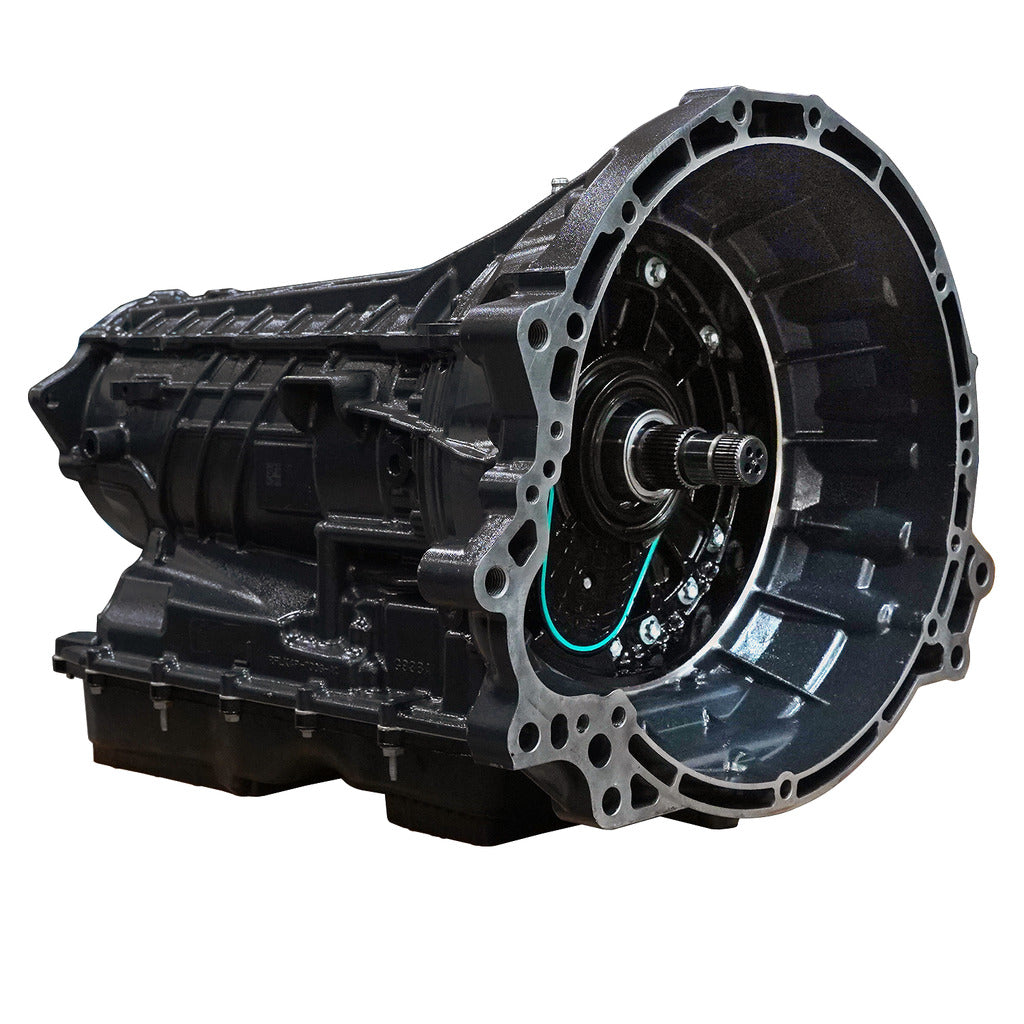

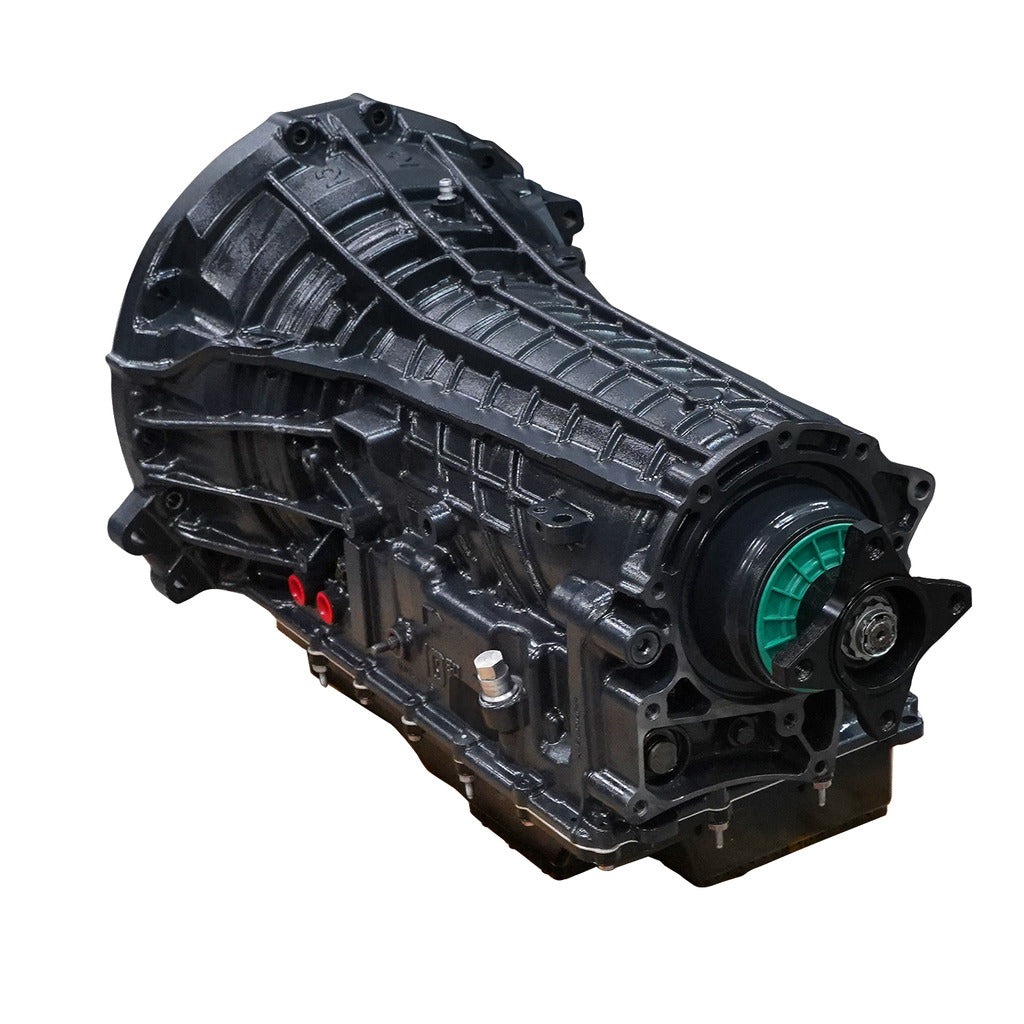

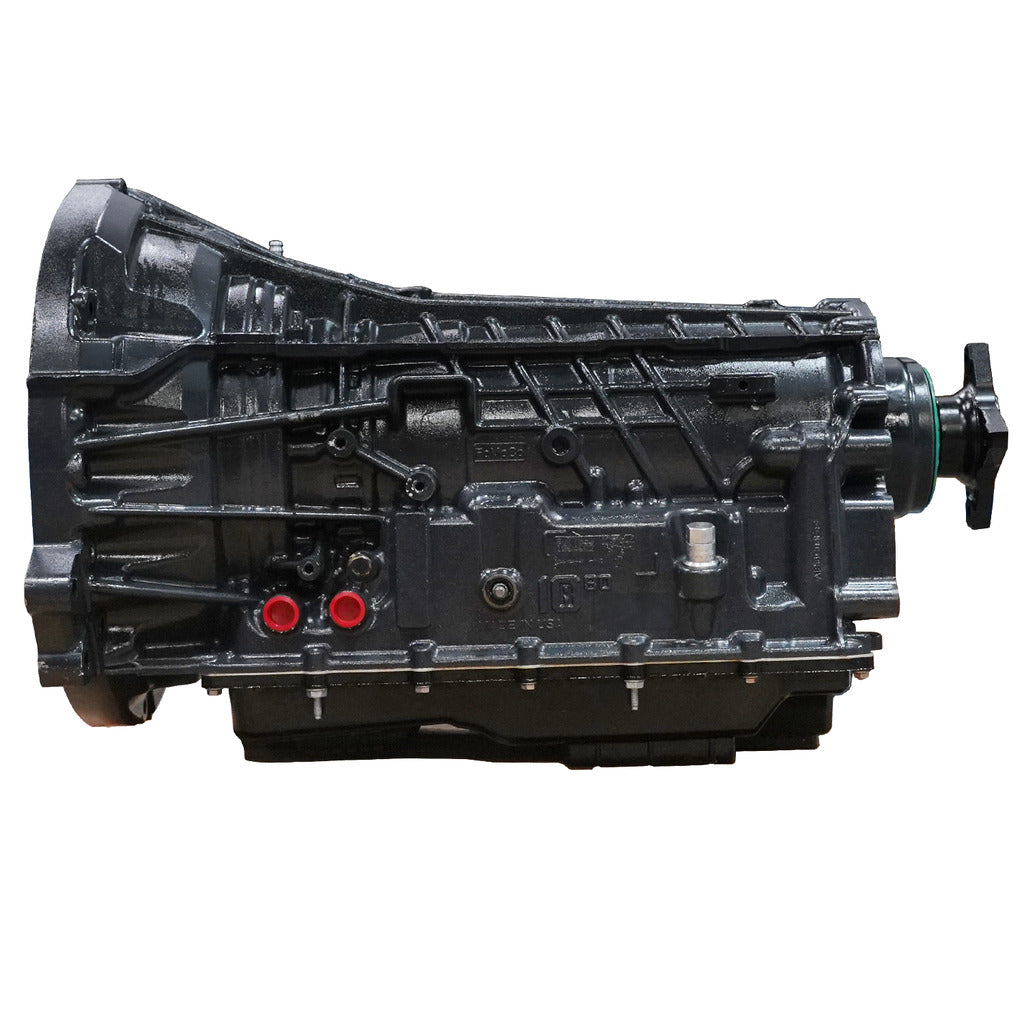

ROADMASTER TRANSMISSION & CONVERTER PACKAGE 10R80 FORD TRANSIT 3.5L 20

Features

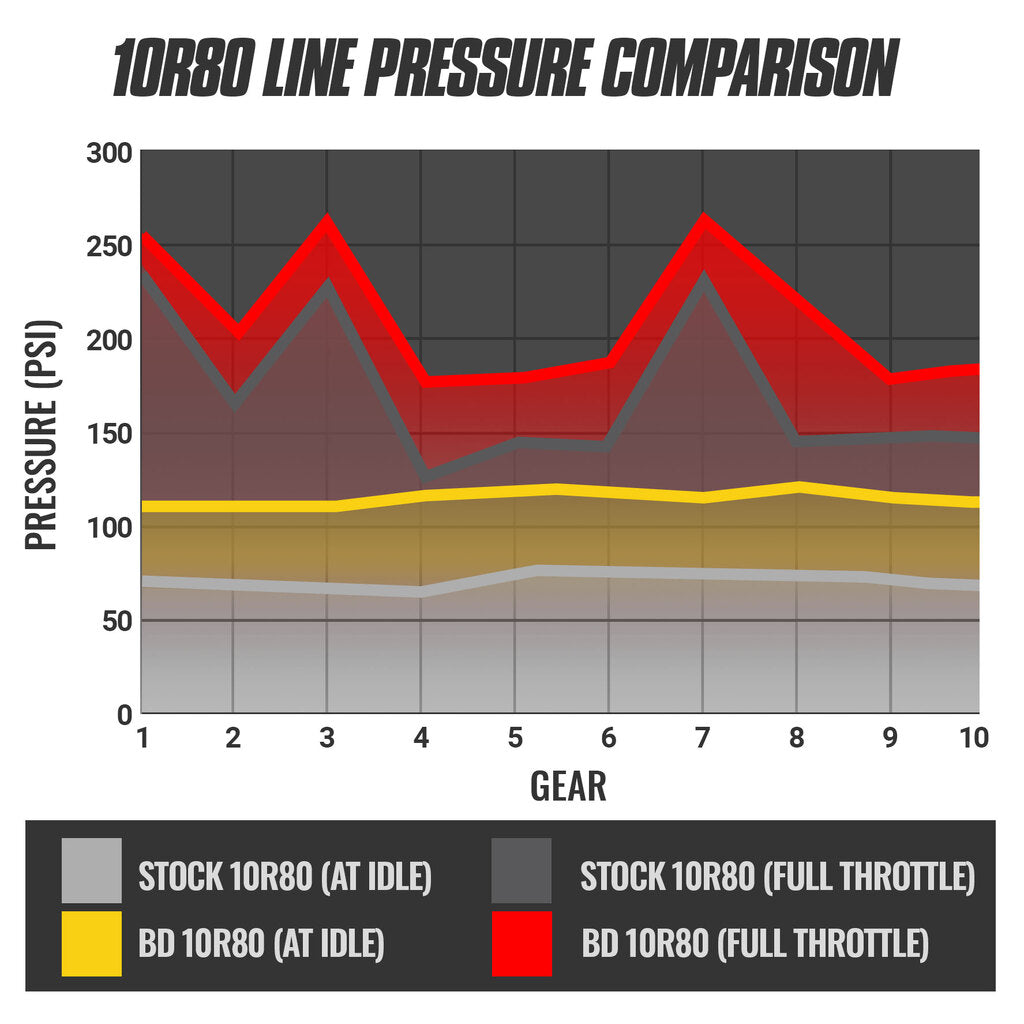

Brand new modified valve body to increase line pressure by ~30% for improved clutch holding
ProForce Torque Converter with new friction material

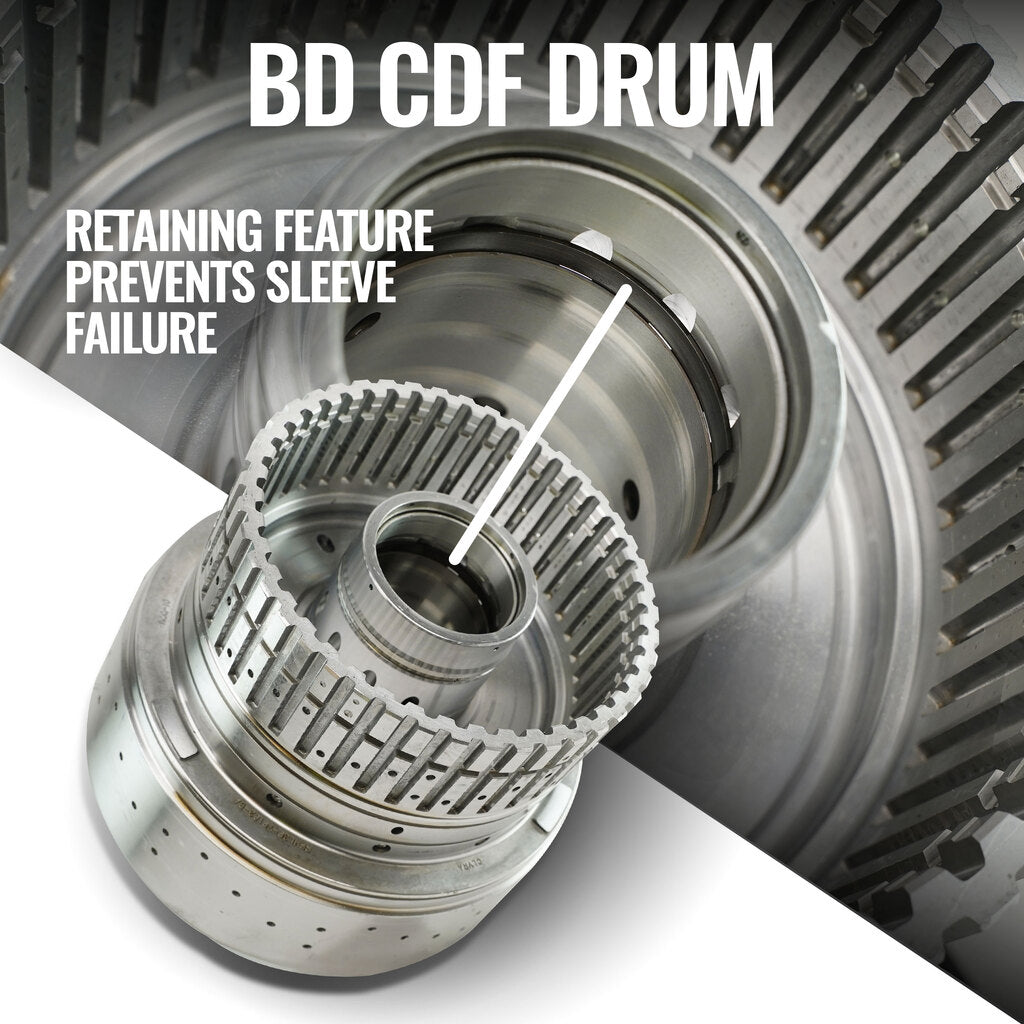

Revised CDF drum with retaining feature to prevent sleeve failure common on OEM units

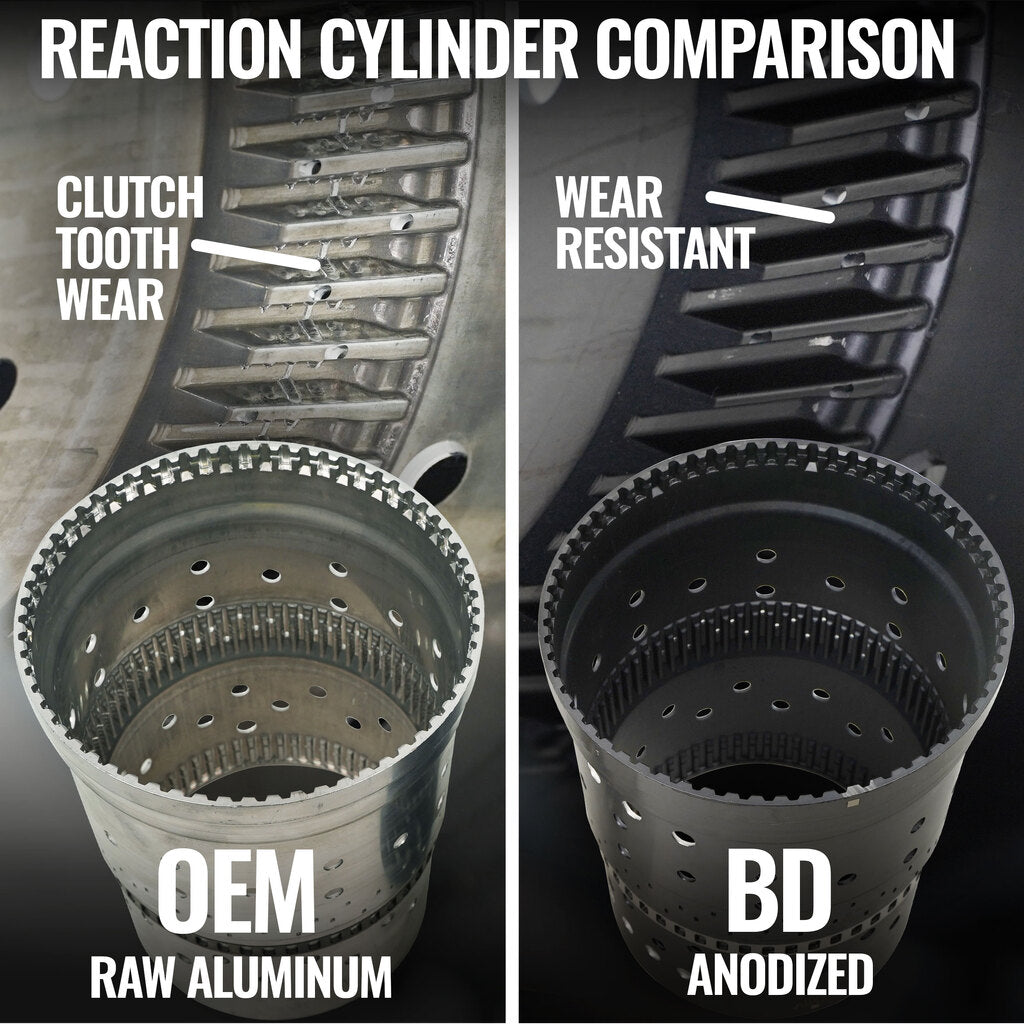

Updated anodized reaction shell for increased hardness corrects tooth wear issue common on 10R80s
New OEM clutches and steels
Smooth and quick shifts
Will not have to worry about long shift delays or flares due to the leaking CDF drum

ABOUT THIS PRODUCT

Engineered for enhanced reliability and extended service life, the BD 10R80 RoadMaster Transmission is the ideal upgrade for stock or mildly modified trucks. It addresses common 10R80 weaknesses with durable solutions -- most notably, the notorious CDF Drum leak is fixed by introducing a retaining feature to support the internal bushing from shifting and blocking fluid pathways. For sharp shifts and lasting performance, each transmission features an anodized reaction shell to eliminate embedded clutch tooth wear issues and a new OEM valve body -- modified to improve solenoid retention and increase line pressure by 30%, delivering noticeably higher clutch holding power.

INSTALL TIME

13 Hours

WARRANTY

Parts

24-Months
100,000 Miles

Labor

12-Months
24,000 miles

NOTE

Fits both the 3.5L Ecoboost and the NA 3.5L V6
Replaces OEM Part #s: (4WD) LK4Z-7000-HA, LK4Z-7000-EA & (2WD) LK4Z-7000-C, LK4Z-7000-DA

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

TRANSMISSIONS

ROADMASTER TRANSMISSION & CONVERTER PACKAGE 10R80 FORD TRANSIT 3.5L 2020-2024

$4,495.00 USD
