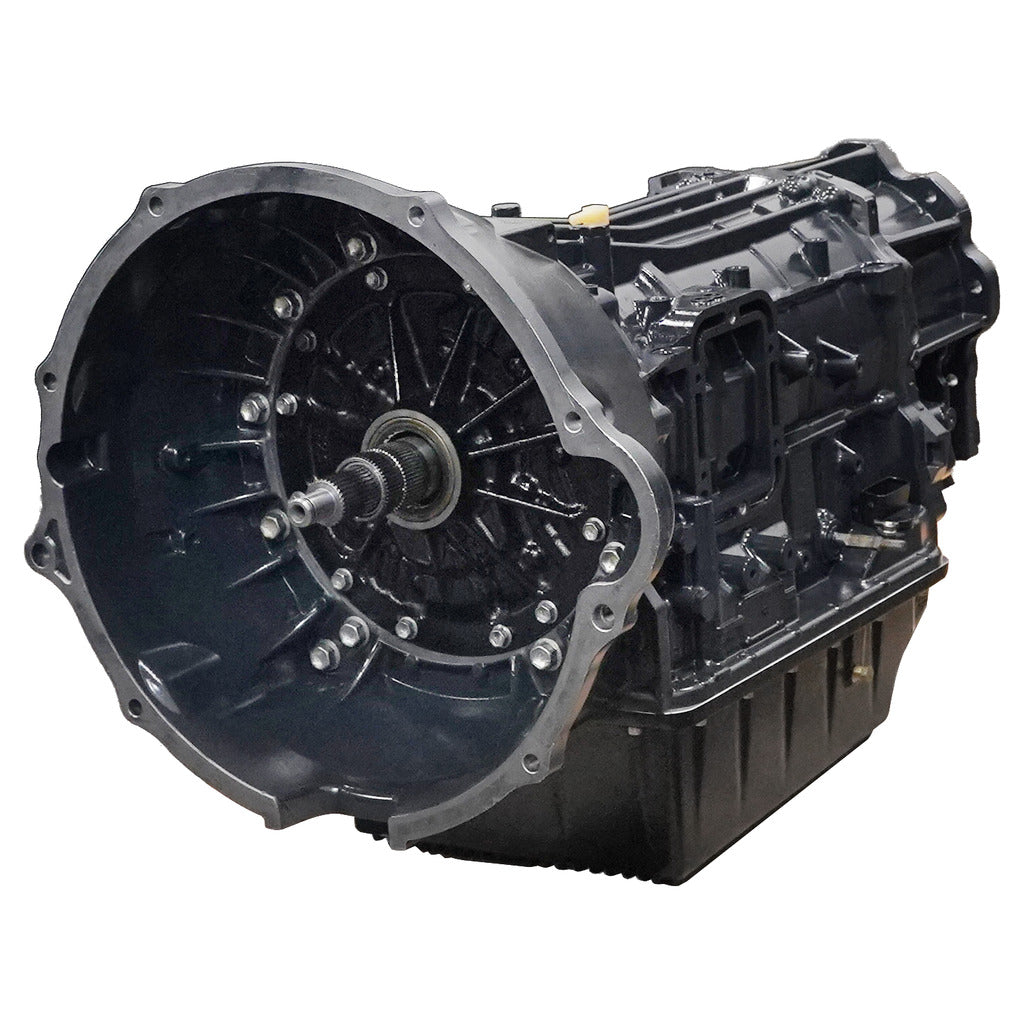

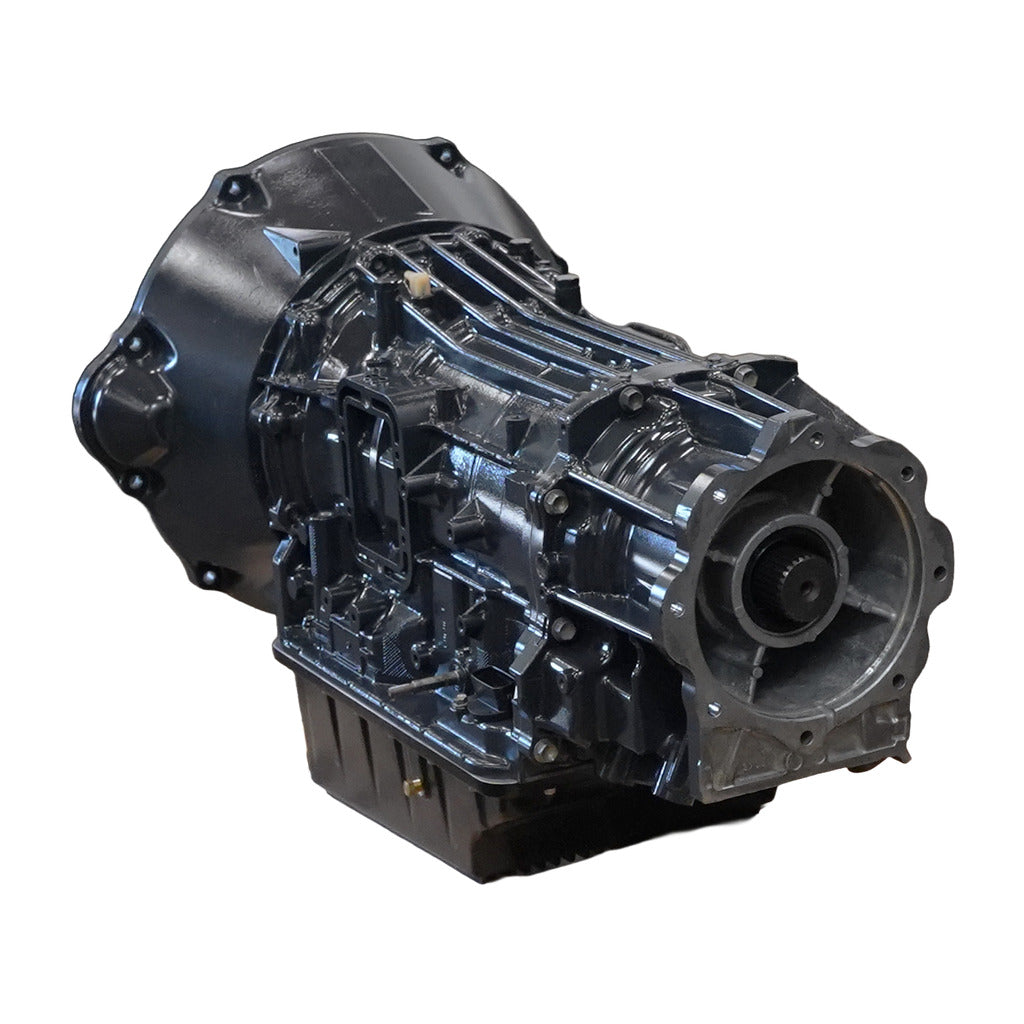

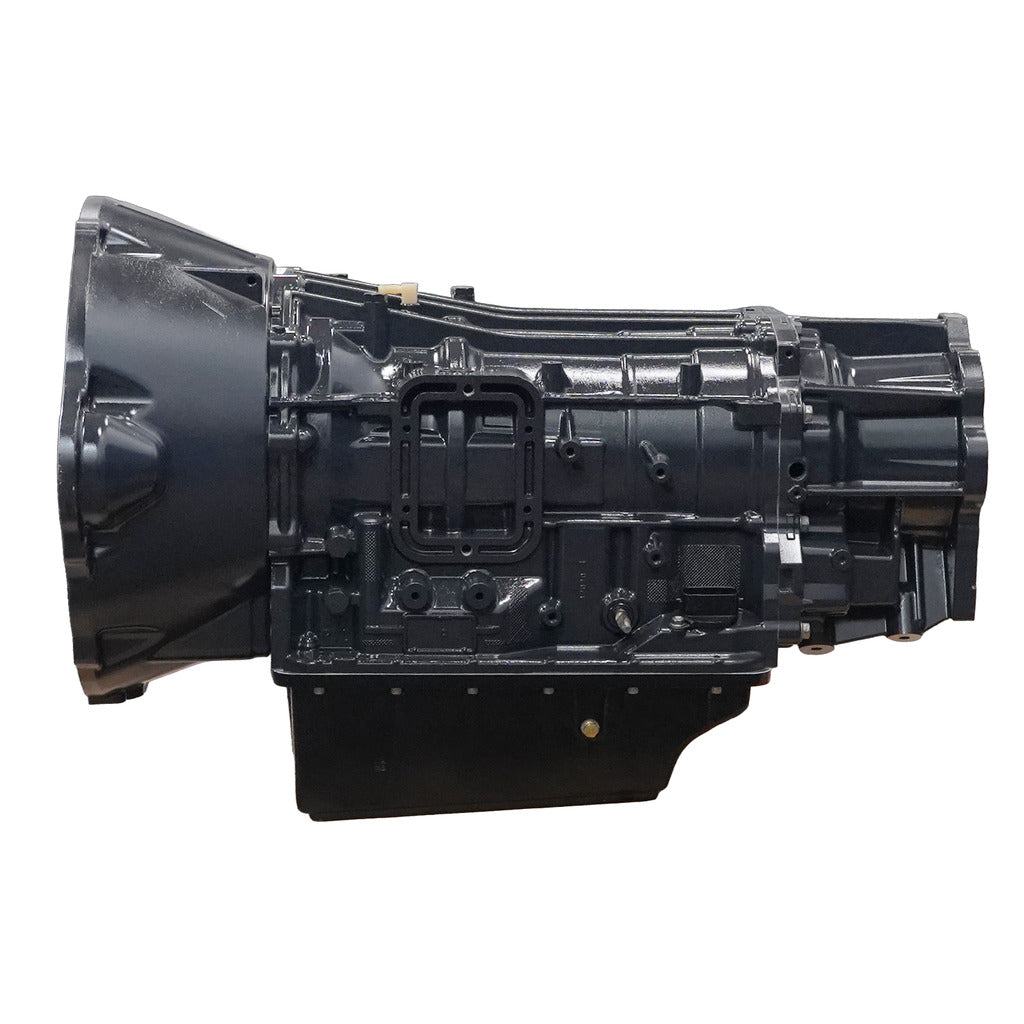

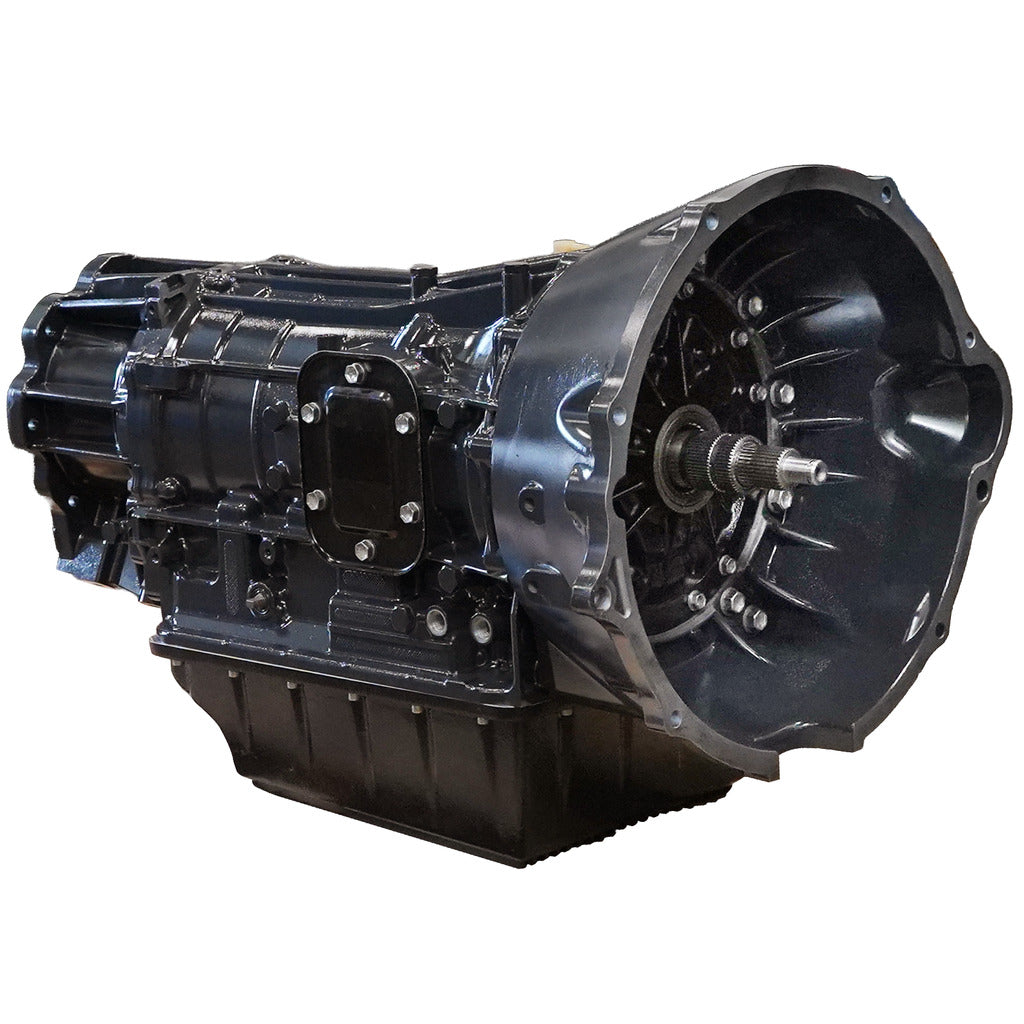

ROADMASTER TRANSMISSION & CONVERTER PACKAGE AISIN AS69RC RAM 3500/4500/5500 6.7L 2019-2024

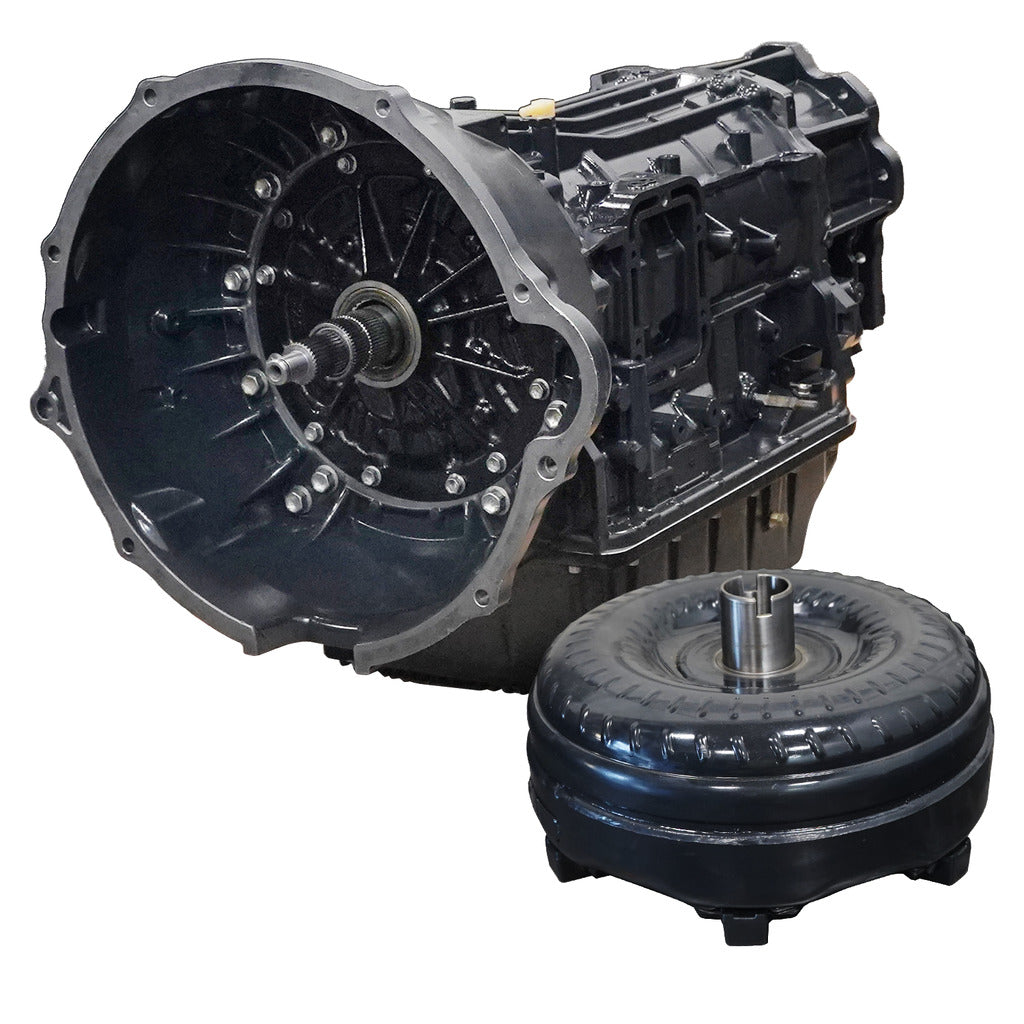

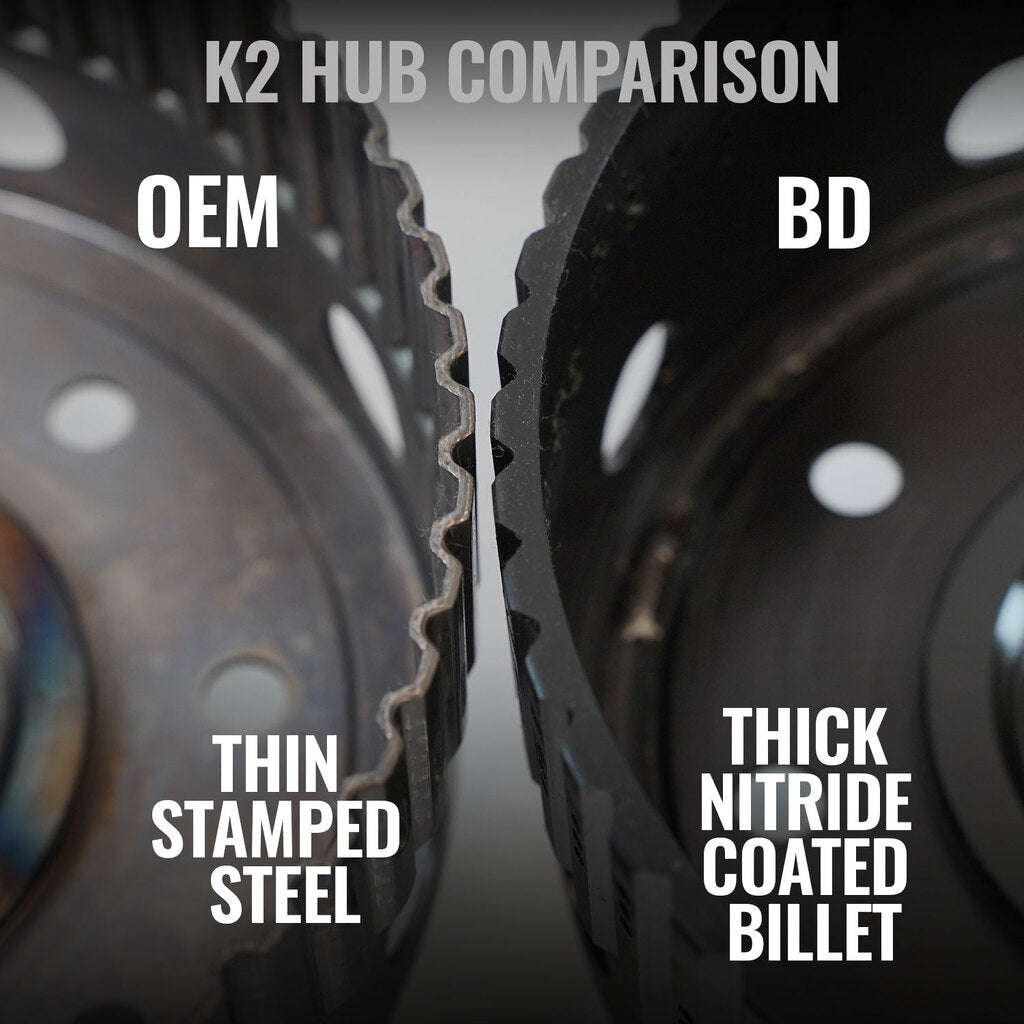

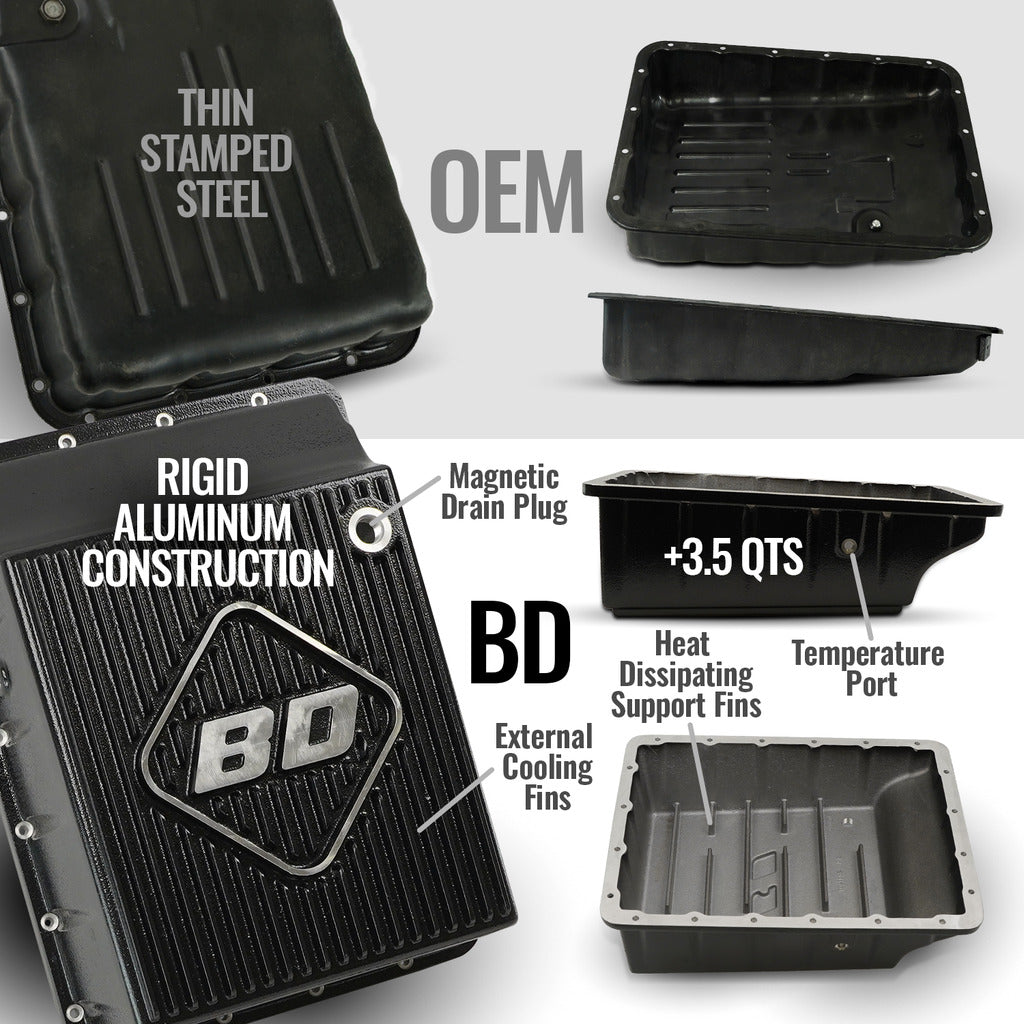

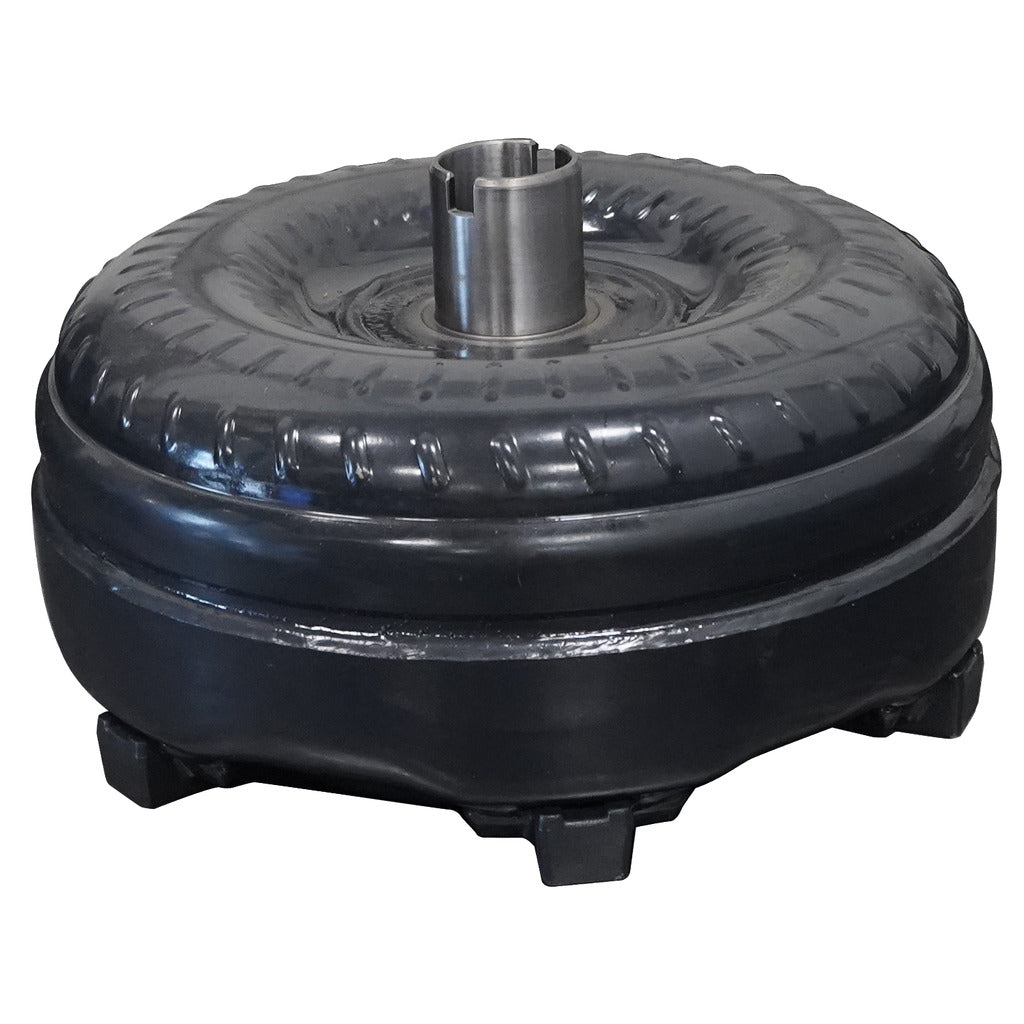

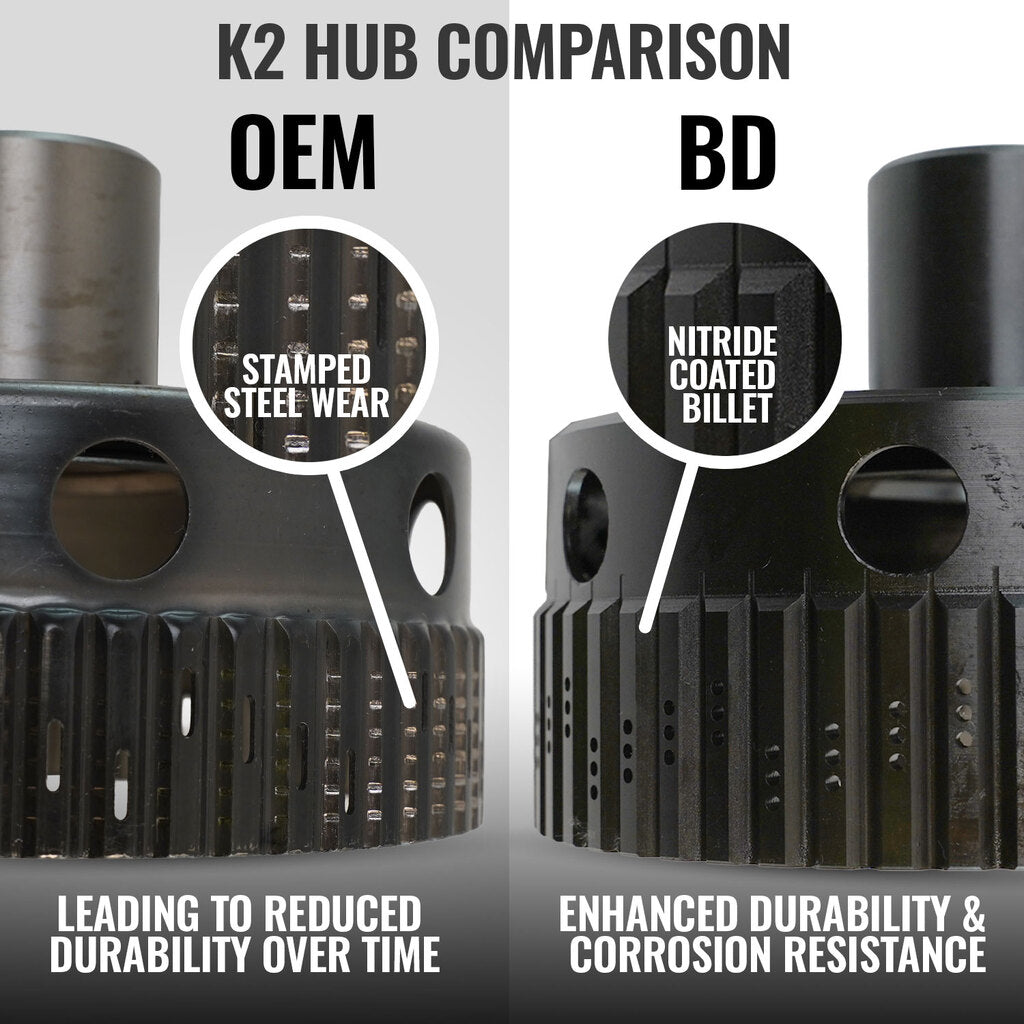

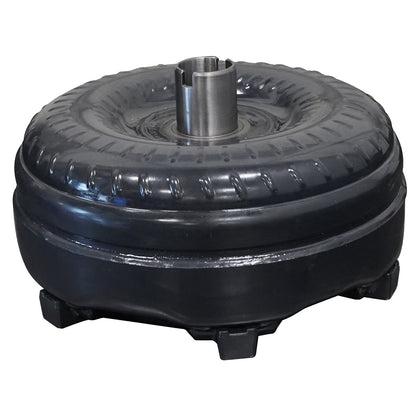

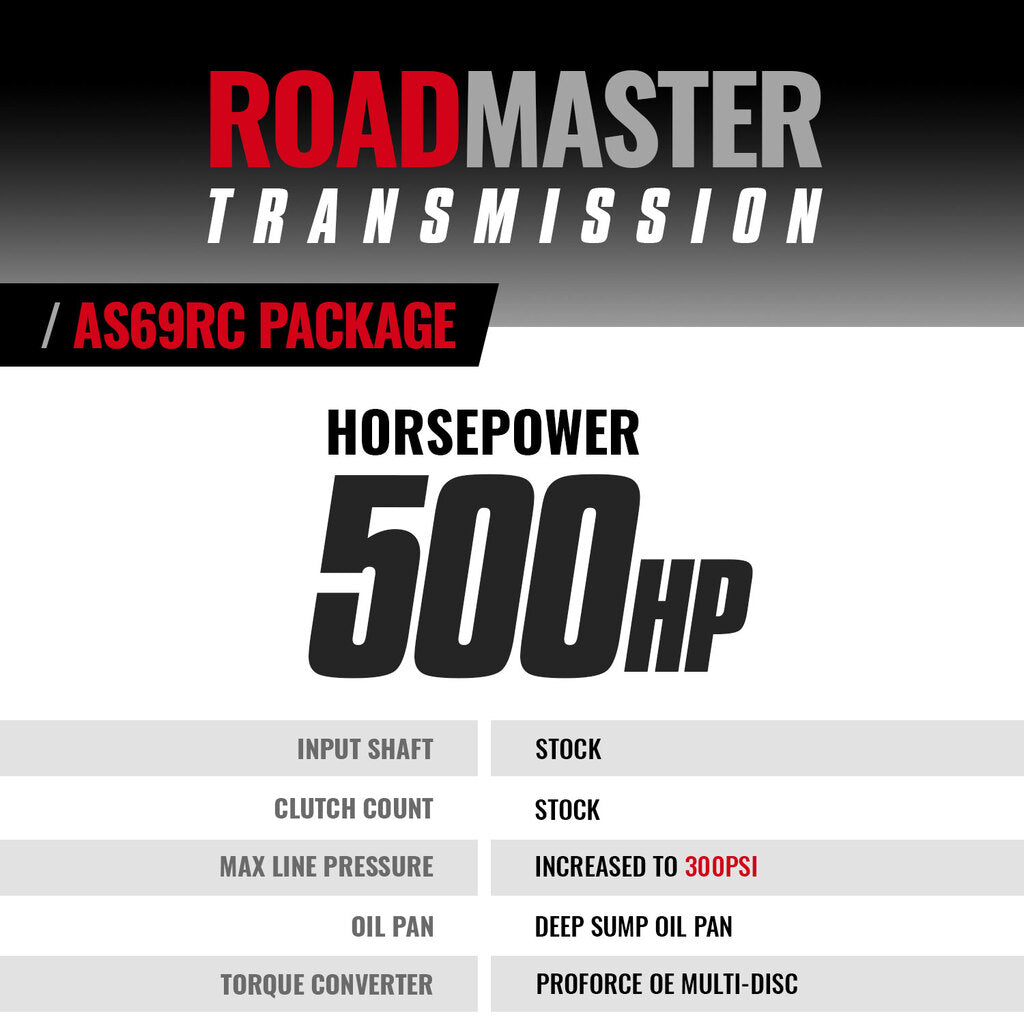

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel and is known to be a strong option in stock form. However; the AS69RC is susceptible to excessive spline wear on the K2 hub, which has been corrected with The BD Custom nitride billet hub. The Roadmaster is designed to handle the output of the stock engine but mitigate the factory failure points. Frictions used in aftermarket rebuilds commonly compromise shift quality; frictions in all BD AS69s have been custom-selected to maintain smooth reliable shift quality. The valve body in the AS69 has been upgraded with a stiffer pressure regulator spring to increase maximum line pressure for increased clutch apply. Leak-prone factory cork gaskets on the pan and PTO have been replaced with improved nitrile gaskets to seal up the new BD Deep Pan. The AS69RC Roadmaster Aisin includes an OE style ProForce torque converter.

INSTALL TIME

• 8 Hours 30 Minutes

WARRANTY

Parts

• 24-Months

Labor

• 12-Months

NOTE

• Please confirm which side the PTO provision is on before ordering.
• Replaces OEM Part #’s: 2WD: 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AE
• Replaces OEM Part #’s: 4WD PTO: 68458821AA, 68533540AB
• Replaces OEM Part #’s: 4WD: 68498560AA, 68498560AB, 68452393AE, 68533456AA, 68533466AA, 68498557AA, 68498557AB, 68282715AE

EMISSIONS

• This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
