1032020

    STEERING & SUSPENSION STABILITY PACKAGE RAM 2500 2014-2025 / 3500 2013-2025

    $895.95
    $895.95

    HIGH
    DEMAND!
    ORDER NOW AND WE'LL
    PRIORITIZE YOUR SHIPMENT
    EST. SHIP DATE: Call for more information
    LIMITED
    STOCK
    ONLY AVAILABLE
    EST. SHIP DATE: Call for more information
    LIMITED
    STOCK
    ONLY AVAILABLE
    EST. SHIP DATE: Call for more information
    IN STOCK!
    AVAILABLE
    EST. SHIP DATE: Call for more information

    Features

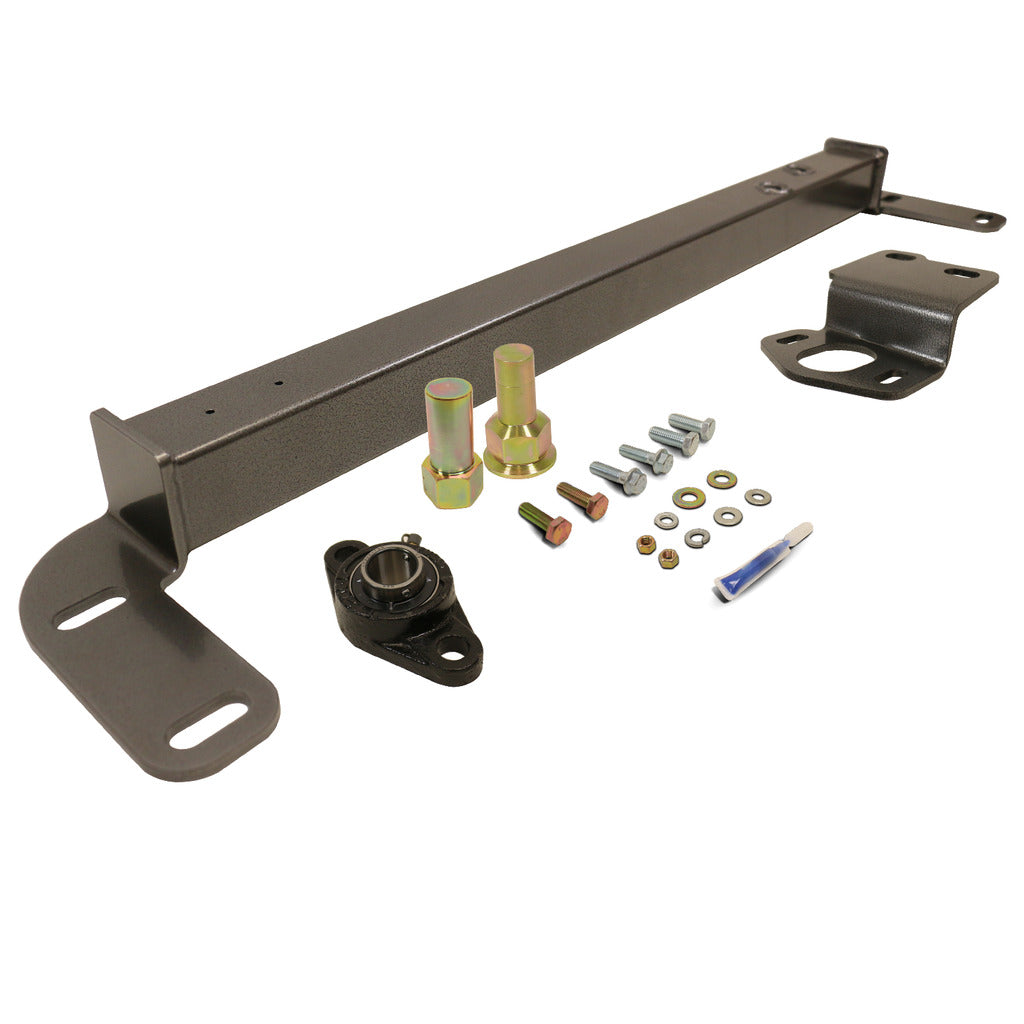

    • STEERING BOX STABILIZER
    • Eliminates steering wander and wobble caused by excessive shaft play in the steering box
    • Virtually eliminates frame flex at the steering box mounting point
    • Delivers a more positive steering feel
    • Greaseable, high-quality bearing for reliable, long-term operation
    • Silver vein powder coat for corrosion resistance
    • High-strength mounting hardware
    • Bolt-in installation

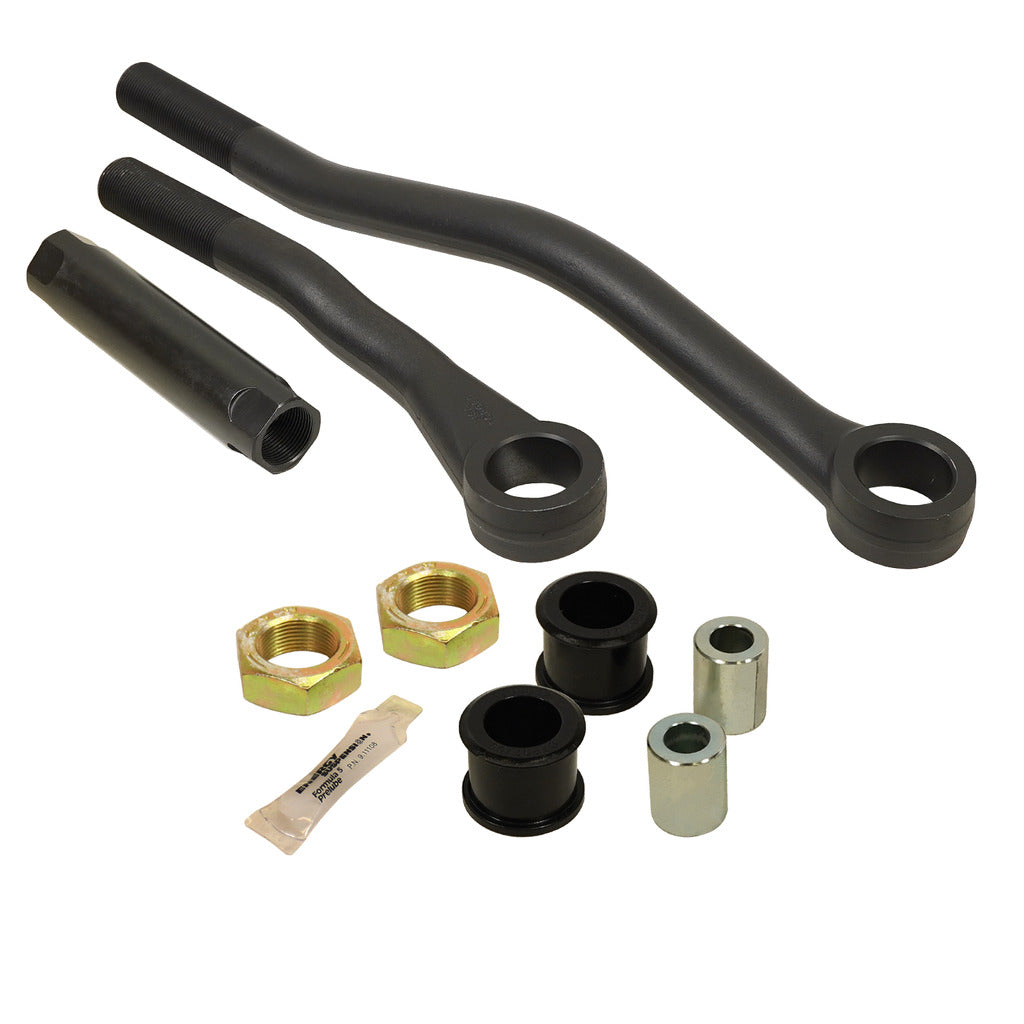

    • TRACK BAR KIT
    • Helps eliminate death wobble in lifted trucks
    • Made from high-strength, heat-treated forged components
    • Adjustable to accommodate up to a 4" lift — more with a drop bracket
    • Adjusts without removing the bar from the truck
    • Exclusive black Cerakote coating for corrosion protection
    • Long-lasting, easily serviceable polyurethane bushings
    • Straighter tracking, less wandering, more positive steering feel

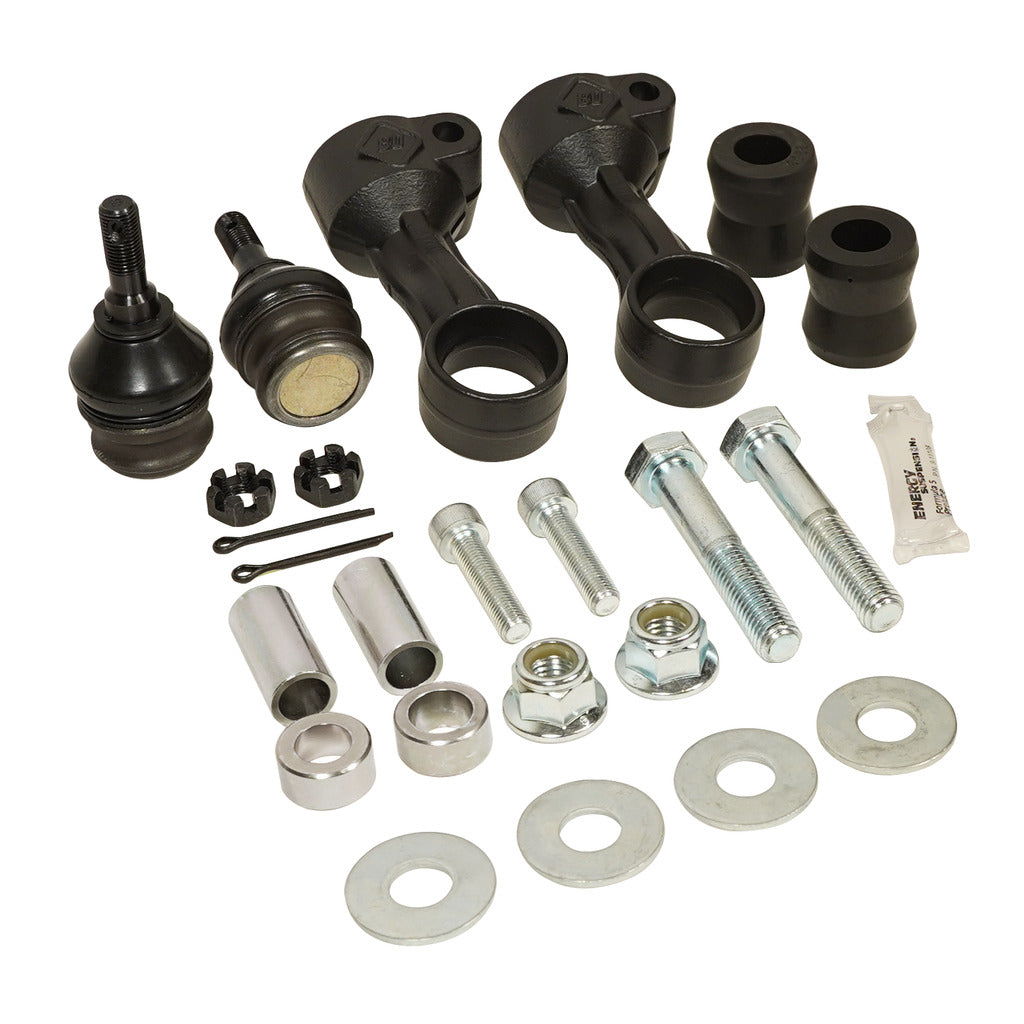

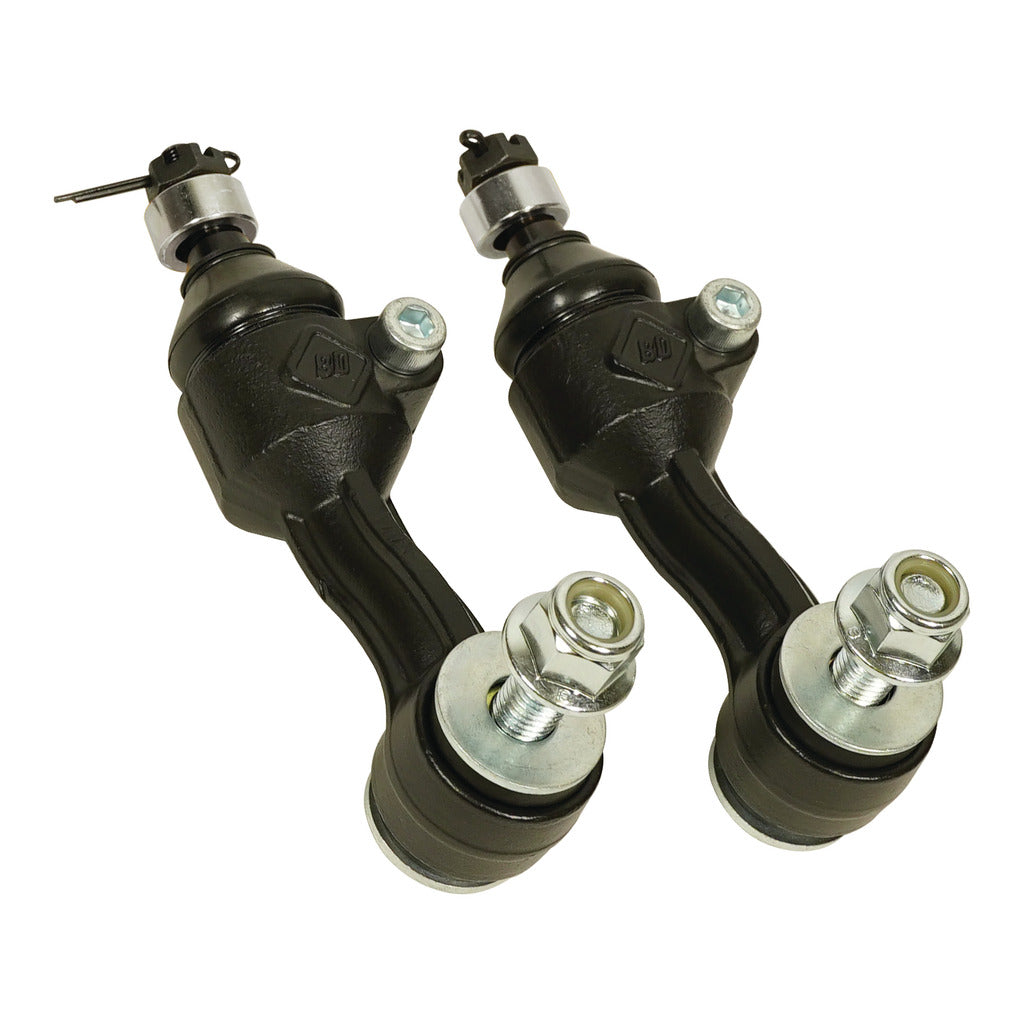

    • SWAY BAR END LINK KIT
    • Dual-pivot design for greater articulation and less stress on the end link
    • Super strong forged, heat-treated center section
    • Oversized ball joint for higher load capacity and longer service life
    • HD polyurethane bushing with steel sleeve at the axle connection
    • Ideal for stock height up to a 2" lift (3"+ lifts require a sway bar offset spacer, typically included with most lift kits)

    About This Product

    Death wobble doesn't warn you. One second, you're rolling straight; the next, the whole front end is shaking the wheel out of your hands — and by the time you feel it, the parts causing it to have already been failing for miles. The Steering & Suspension Stability Package fixes the problem at every point it starts: a worn steering box, a sloppy track bar, and tired sway bar end links.

    This bundle pairs BD Diesel's Steering Box Stabilizer Bar, Track Bar Kit, and Sway Bar End Link Kit into one front-end upgrade, engineered specifically for lifted Ram 2500/3500 4WD trucks. Every component is forged, heat-treated, and coated to outlast the stock parts it replaces — and every component is built to work together as a matched set, so there's no guessing which pieces solve the problem. Tighten the steering, hold the axle centered, and kill the articulation slop — in one order, one afternoon, one truck that finally tracks the way it should.

    Warranty & Notes

    Install Time

    INSTALL TIME

    • 3 Hours

    Warranty

    WARRANTY

    Parts

    • 12-Months
    • 24,000 Miles

    Note

    Notes

    NOTE

    • Is compatible with most sway bar drop brackets in lifted trucks
    • Steering Box Stabilizer: Compatible with OEM 4-bolt & 6-bolt steering boxes as well as aftermarket Borgeson & RedHead boxes
    • Steering Box Stabilizer: Does not fit Power Wagon models
    • Steering Box Stabilizer: May interfere with snowplow equipment
    • Steering Box Stabilizer: May not fit with aftermarket sway bars
    • Sway Bar End Links: Replaces OEM Part #68205009AB
    • Sway Bar End Links: Trucks lifted more than 3 inches will require a sway bar offset spacer, which is typically included in most lift kits

    Emissions

    EMISSIONS

    • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
    STEERING & SUSPENSION STABILITY PACKAGE RAM 2500 2014-2025 / 3500 2013-2025

    $895.95

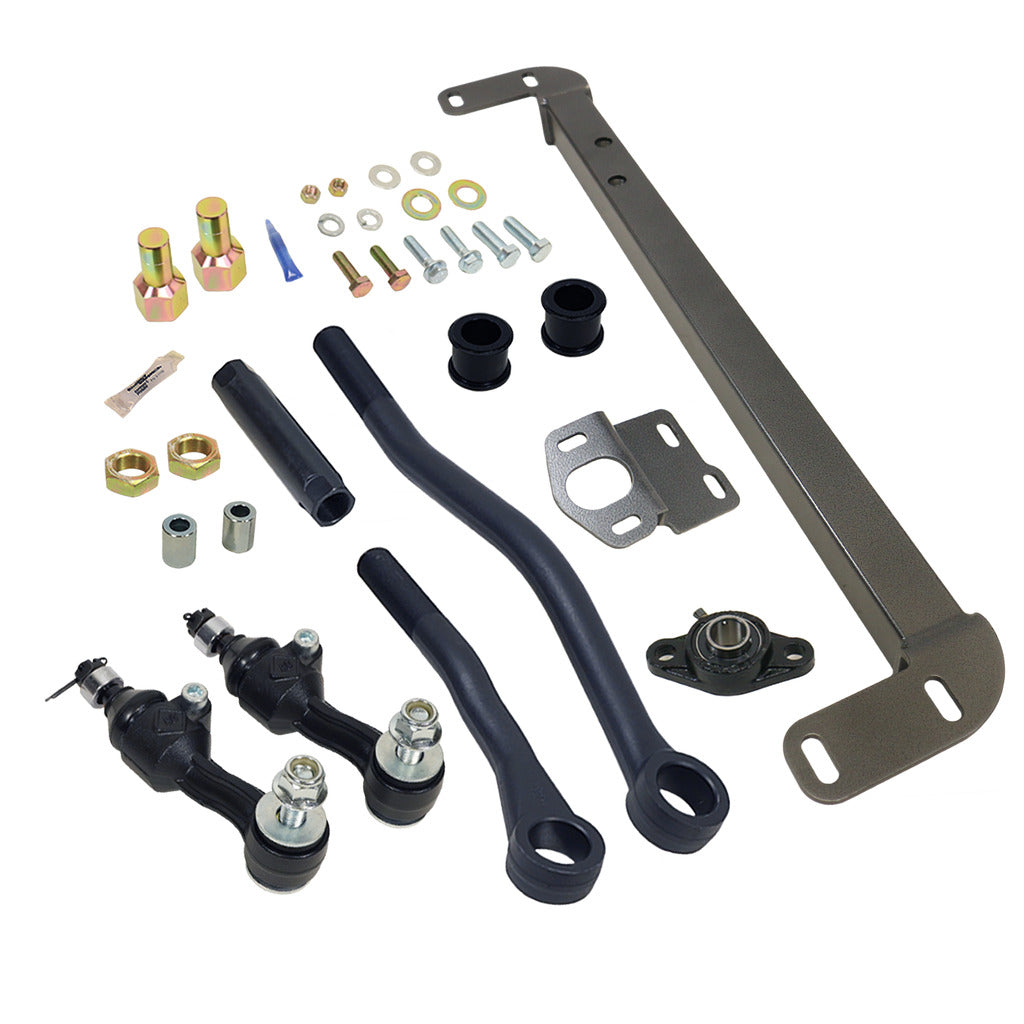

    What exactly is included in this stability package?

    This package bundles three separate BD Diesel components into a single kit. It includes the Steering Box Stabilizer (SBS), an adjustable solid Track Bar, and a set of front Sway Bar End Links. — This comprehensive kit addresses the most common sources of front-end instability and 'death wobble' on Ram HD trucks. Specifically, you will receive: — • BD Diesel Steering Box Stabilizer (1032012): This bar supports the steering box sector shaft, preventing flex and wander. • BD Diesel Adjustable Track Bar (1032025): Made from 1-3/8" solid forged steel, this allows for precise centering of the front axle, which is crucial on lifted or leveled trucks. • BD Diesel Sway Bar End Links (1032016): These replace the stock links to provide a more durable, positive connection to the sway bar, reducing body roll and slop.

    What's the main cause of 'death wobble' this kit is designed to fix?

    Death wobble is a violent oscillation of the entire front axle, and this kit addresses the three most common weak points that contribute to it. It fixes steering box sector shaft play, lateral axle movement from a worn track bar, and excessive body roll from failed sway bar end links. — Individually, each component failure adds slop to the steering and suspension system. The BD Steering Box Stabilizer (SBS) uses a bearing to support the bottom of the steering box's sector shaft, preventing it from flexing away from the frame under load—a primary cause of steering wander. The heavy-duty adjustable Track Bar re-centers the axle under the frame and its robust forged steel construction eliminates the flex and bushing wear common in the OEM bar. Finally, the upgraded Sway Bar End Links prevent the axle from rocking side-to-side, which can be the final trigger for the oscillation when combined with the other worn parts.

    How difficult is this to install in my garage?

    Installation is straightforward for an experienced mechanic and can typically be completed in an afternoon, approximately 3-4 hours, with common hand tools. No welding or permanent modifications are required, as all components are direct bolt-on replacements. — You will need a quality socket set, wrenches, a torque wrench, and heavy-duty jack stands to safely support the vehicle. The track bar is the most critical part of the installation, requiring careful adjustment to center the axle perfectly side-to-side before torquing the bolts to factory specification. While it is a bolt-on job, an alignment is highly recommended after installation to ensure proper tracking and prevent abnormal tire wear.

    Are the joints in the track bar and end links serviceable?

    Yes, the high-strength joints used in both the track bar and the sway bar end links are fully greaseable and serviceable. They feature grease zerk fittings, allowing you to regularly lubricate them to extend their life and maintain performance. — Regular maintenance is key for longevity, especially in harsh climates or off-road conditions. The BD Diesel track bar utilizes a large, durable ball joint on the axle end, which is designed to handle the high articulation and loads seen on these heavy-duty trucks. By purging old grease and moisture, you prevent premature wear and ensure the joints remain tight and noise-free for years.
