TIE ROD KIT CHEVY/GM DURAMAX 2500 HD / 3500HD SILVERADO/SIERRA 2011-2024

Yes, this tie rod kit fits all 2011-2024 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks. This includes all cab, bed, and drivetrain (2WD/4WD) configurations with either diesel or gas engines. — This kit, part number 1032124, is a direct bolt-in replacement for the factory tie rods on all GM HD trucks from 2011 to the present model year. It is fully compatible with the 6.6L Duramax engines (LML and L5P) as well as the 6.0L and 6.6L gas engines. The heavy-duty design is an ideal upgrade for stock, leveled, or lifted trucks, especially those running larger and heavier aftermarket wheels and tires which place significantly more stress on steering components.

These BD Diesel tie rods are substantially stronger and more durable than the original equipment units. The rod bodies are forged to be 1.5 times thicker than stock, and testing shows they can withstand more than double the bending force before failure. — The increased strength comes from a comprehensive design upgrade, not just a thicker bar. Key improvements include: — • A significantly larger inner ball joint designed to handle higher loads and reduce wear over time. • Greaseable joints that feature sintered bearings, which improves load-holding capability and extends service life by allowing for regular maintenance. • A robust forged I-beam-style construction that dramatically reduces the flex common with OEM tie rods, especially under the stress of off-road use or with large tires. • The design eliminates the common OEM failure point where the factory rods bend or buckle near the inner joint.

Yes, a full front-end alignment is mandatory immediately after installing the tie rod kit. Failure to do so will result in incorrect steering geometry, poor handling, and rapid, uneven tire wear. — Replacing tie rods directly affects the vehicle's toe-in/toe-out alignment settings. While you can attempt to match the length of the new tie rods to the old ones by counting threads, this is not a substitute for a professional alignment. An alignment machine is required to precisely set the toe to factory specifications, ensuring the vehicle tracks straight, steering wheel is centered, and your tires wear evenly. The installation itself is straightforward for a qualified mechanic and typically takes 1-2 hours.

This is a complete, engineered solution that addresses all the weak points of the factory steering, whereas sleeves are a partial "band-aid" fix. Sleeves only reinforce the thin OEM rod itself, but do nothing to strengthen the undersized and non-serviceable factory inner and outer ball joints, which are common failure points. — BD's 1032124 kit replaces the entire assembly with a superior design. The forged rod is 1.5x thicker, eliminating the flex that sleeves try to mask. More importantly, it includes much larger, greaseable ball joints with durable sintered bearings. This comprehensive upgrade provides greater strength, a longer service life, and improved steering feel that sleeves cannot match. Sleeves can also trap moisture against the original tie rod, potentially accelerating corrosion.

This kit is designed to permanently fix the common issues of steering wander, front-end clunking, and premature inner tire wear on 2011-2024 GM HD trucks. These symptoms are often caused by the factory tie rods flexing or the original ball joints wearing out. — Stock tie rods are known to bend under the stress of larger tires or heavy use, leading to inconsistent toe angles and a wandering feeling at the wheel. The BD Diesel forged tie rods are 1.5x thicker to eliminate this flex. Worn OEM ball joints create slack in the steering system, which can manifest as a clunking noise when turning. The larger, more durable ball joints in the BD kit, combined with their greaseable design, prevent this premature wear and keep the steering tight and responsive.

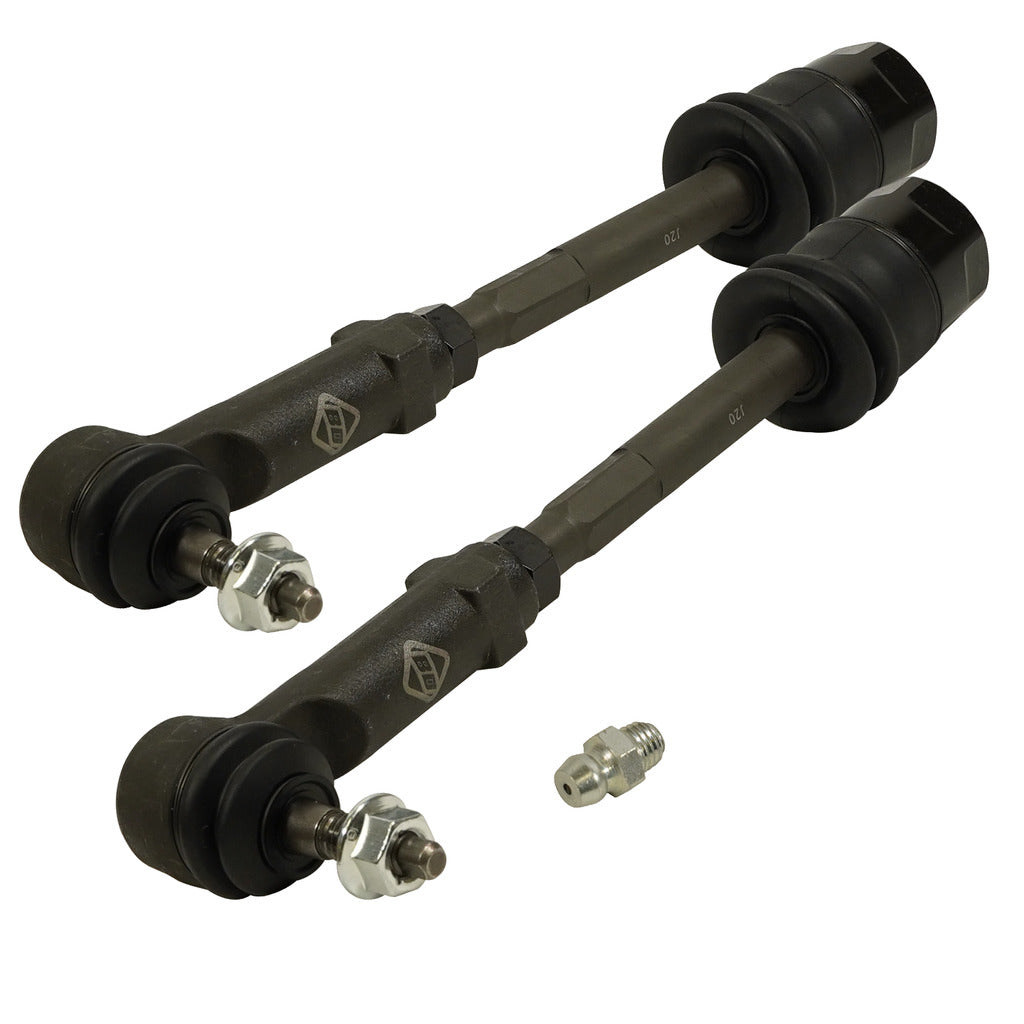

The BD Diesel 1032124 kit is a complete package that includes the left and right tie rod assemblies. All necessary mounting hardware, including new castle nuts, cotter pins, and grease fittings (zerks), is provided. — Installation requires common hand tools and at least one specialty tool. You will need: — • A proper tie rod end separator (pickle fork or puller tool) to separate the joints from the steering knuckles and center link. • A torque wrench to properly tighten the new castle nuts to specification. • Basic metric wrench and socket set (typically in the 18mm to 24mm range). • A grease gun with quality chassis grease to lubricate the new joints upon installation.
