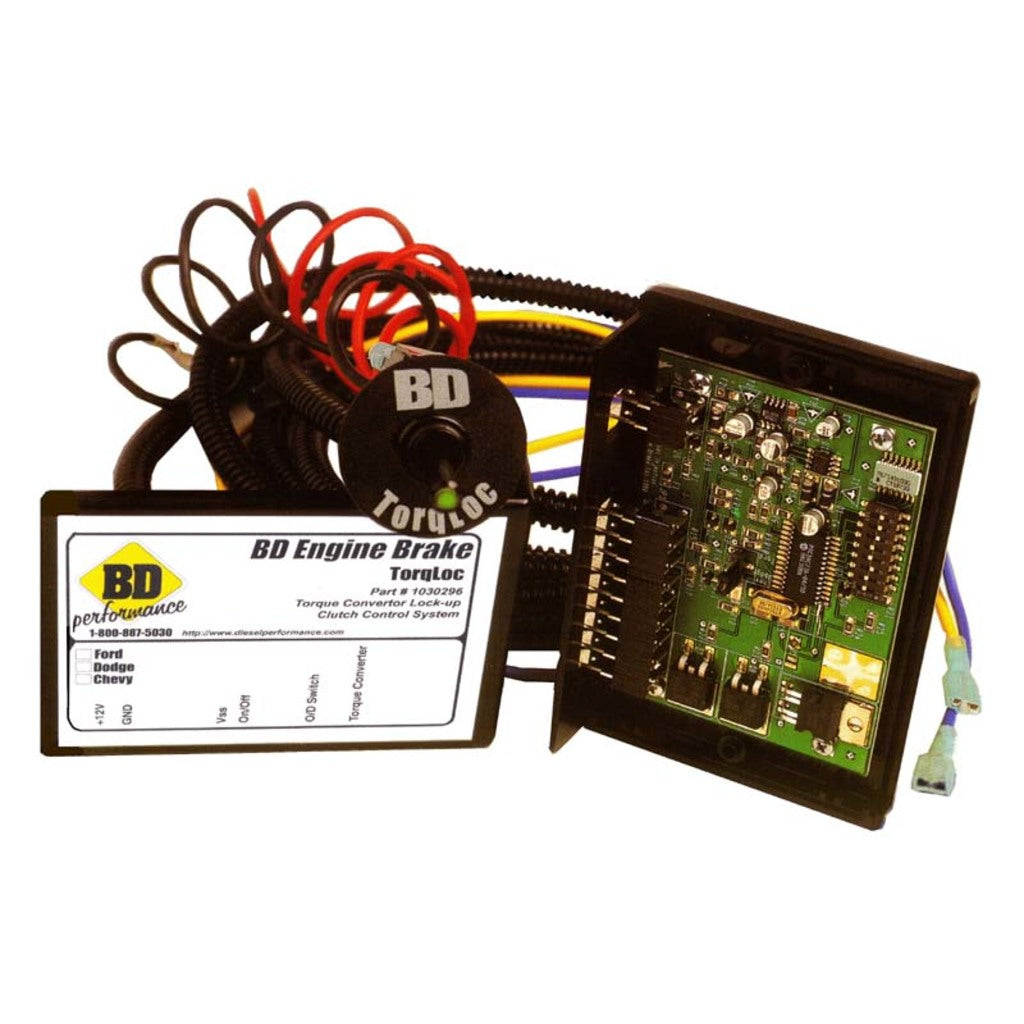

Torq/UnLoc Kit Dodge 5.9L Cummins 1994-2004 /Chevy 6.5L Duramax 1992-2000

• Prevent the ECM from activating the lock-up clutch when such an action would drag the engine rpm out of the optimum torque range, or, when traveling at such speeds that would cause the ECM to cycle the lock-up clutch in and out
• Maintains lock-up when the exhaust brake is activated
• Ensuring 100% of the retarding force is being transferred in 3rd and 4th gears
• Prevents slippage and subsequent high oil temperatures

Currently, exhaust brake usage can cause high temperatures in the automatic transmission due to torque converter slippage, and, only 10% to 80% of the retarding force is transferred through the fluid coupling of most torque converters. The BD Torq/UnLoc commands the lock-up clutch of the torque converter to stay engaged when the BD Exhaust Brake is activated. This allows for up to 100% of the retarding force to be transferred in 3rd and 4th gear and the transmission oil temperature to remain low because of little to no slippage occurring when the converter is in these selected gears. The BD Torq/UnLoc is also able to prevent the ECM from activating the lock-up clutch when such an action would drag the engine rpm out of the optimum torque range, or, when traveling at such speeds that would cause the ECM to cycle the lock-up clutch in and out.

INSTALL TIME

• 2 Hours

WARRANTY

Parts

• 12-Months
• 24,000 Miles

EMISSIONS

• This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
