Silverado/Sierra 1500 V8 Exhaust Manifold Bolts Keep Breaking (2002–2013): Symptoms, Fixes & BD Manifold Kit
GM LS Truck Exhaust Manifolds (2002–2013): Broken Bolts, Ticking Leaks & The Real Fix
If you own a 2002–2013 Chevrolet Silverado 1500 or GMC Sierra 1500 V8 and you hear a ticking sound on startup, you’re not alone. One of the most common GM truck exhaust problems is exhaust manifold bolt failure—fasteners snap from heat cycling, clamp load drops, and you end up with an annoying tick, exhaust smell, and eventually a leak that only gets worse.
Jump to: Symptoms • Why LS Manifold Bolts Break • Confirm the Leak • BD Manifold Options • Install Tips • FAQs
1) Symptoms: What a GM Exhaust Manifold Leak Looks & Sounds Like
Most LS truck manifold leaks announce themselves the same way: a tick that’s loudest when cold and changes as the engine warms. The leak can also create hot spots and soot trails where exhaust escapes the flange.
- Ticking at cold start (often less noticeable warm).
- Exhaust smell around the engine bay, especially near the wheel well.
- Visible soot near the manifold-to-head flange.
- Rattle from heat shields if mounts loosen or alignment shifts.
- Noise under light throttle when the leak “pulses” with exhaust pressure changes.
2) Why LS Truck Manifold Bolts Keep Breaking
The root cause isn’t mysterious: exhaust parts live through intense temperature swings. Metal expands when hot and contracts when cool—repeat that enough times and the system starts losing clamp load. Once clamp load is compromised, leaks form, temperatures spike, and fasteners fatigue faster.
The “stress riser” problem
A manifold design that concentrates stress in specific locations is more likely to crack or warp. When the manifold can’t move and settle evenly across the flange, the bolts and gasket take the punishment. A stronger fix targets the geometry and thickness strategy so the manifold resists warping and distributes stress more uniformly.
3) How to Confirm a Manifold Leak (No Guessing)
Before ordering parts, confirm the leak with a quick diagnostic routine. This saves time and helps you identify which side is leaking.
- Cold-start listen: Stand near each front wheel well; manifold leaks often “tick” from that side.
- Visual inspection: Look for soot trails at the flange or around the gasket line.
- Smoke test (best method): Shops use a smoke machine to make leaks obvious.
- Heat shield check: With engine off, verify shields aren’t loose and mimicking tick noises.
- Confirm hardware condition: Missing or visibly snapped bolt heads usually confirm why the leak formed.

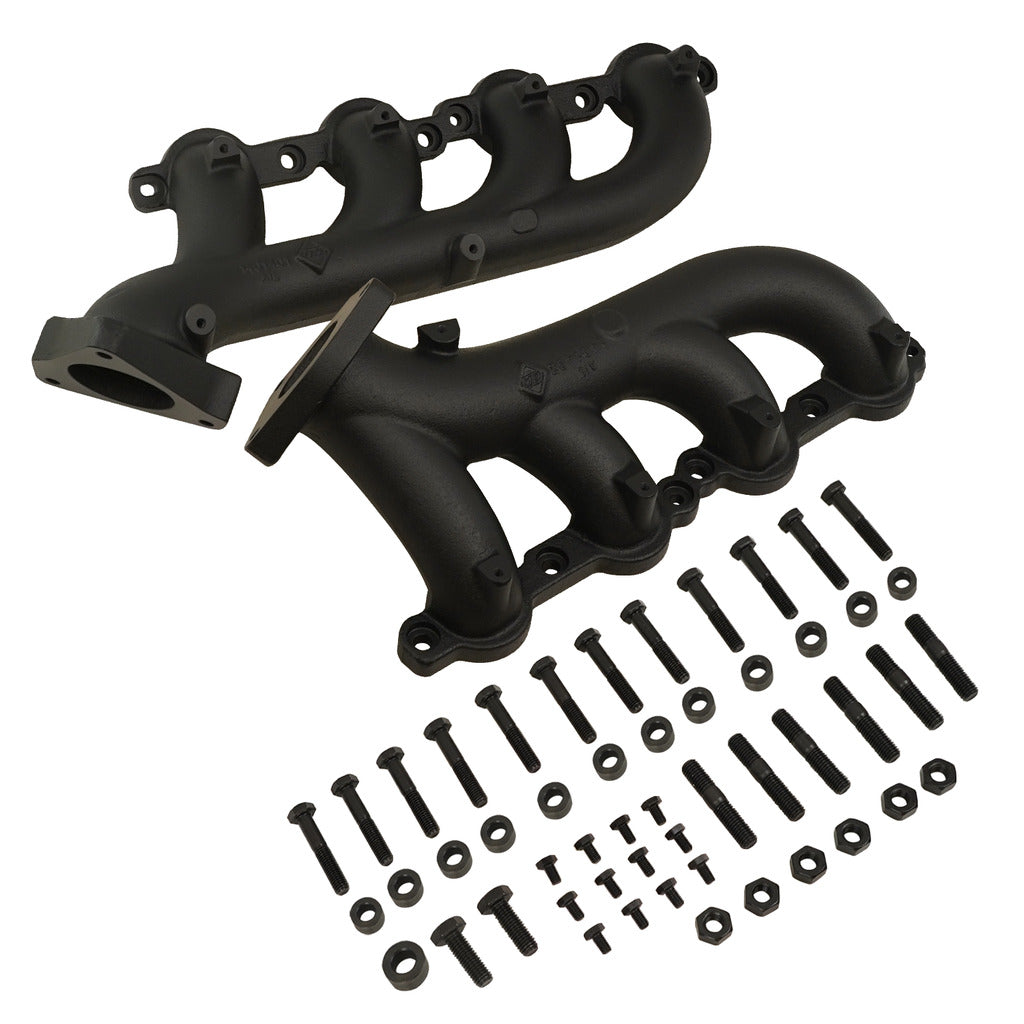

4) BD Exhaust Manifold Options for 2002–2013 Silverado/Sierra 1500 V8
BD’s upgraded exhaust manifolds are designed as OEM replacement solutions for 2002–2013 GM LS-based truck engines, targeting the common bolt failure and cracking issues. BD focuses on durability: material choice, wall thickness strategy, machined mating surfaces, and improved fastener stress control.
• OEM replacement for 2002–2013 GM LS-based truck engines
• High-silicon ductile iron construction
• Uniform increased wall thickness to reduce stress risers and help prevent cracking
• Longer bolts + spacers (15mm longer) to reduce stress on fasteners
• Machined bolt mating surfaces for secure bolted joint
• Heat shield mounting bosses
• Kit includes new bolts, spacers, and gaskets
• Manifolds also sold individually (RH / LH)
Shop links:
BD GM Exhaust Manifold Kit (2002–2013)
Passenger Side Manifold (RH) • Driver Side Manifold (LH)
Why “longer bolts + spacers” matters
This is one of the most overlooked parts of the problem. When hardware is constantly stressed by expansion, it fatigues. A design that reduces stress on fasteners helps the system survive heat cycling without losing clamp load as quickly—meaning fewer repeat failures.
5) Install Tips: How to Do It Once (and Not Break More Bolts)
Manifold installs are won or lost on fasteners. Plan for seized hardware and you’ll avoid the most common “project stall” scenario.
- Penetrating oil + time: Pre-soak bolts and let it work; multiple applications over a day helps.
- Use controlled heat: Heat can help release stubborn fasteners, but do it safely around wiring/hoses.
- Have extraction tools ready: Left-hand drill bits, quality extractors, and a plan if a bolt snaps flush.
- Clean the head surface: Old gasket material and corrosion prevent sealing—clean carefully without gouging.
- Even torque strategy: Tighten in sequence so the manifold seats flat and doesn’t distort while tightening.
- Inspect heat shields: Loose shields can rattle and sound like leaks even after the repair.
FAQs: GM Truck Exhaust Manifolds (2002–2013)
Can I drive with a manifold leak?
You can, but you shouldn’t ignore it. Leaks can worsen, raise under-hood temperatures, and create annoying cabin noise and fumes.
Fixing it early usually means fewer broken bolts and less extraction work.
Do I need both manifolds?
Not always. Diagnose which side is leaking. Many owners replace the leaking side first, while others replace both to “reset” the system on higher-mile trucks.
What about emissions legality?
BD notes emissions status and documentation on the product listing. Always verify requirements for your location and keep emissions equipment intact.
Always verify fitment and follow the installation instructions and torque procedures. Keep emissions equipment intact and compliant.
