The Legendary 7.3L Power Stroke Guide: Specs, Common Problems and Upgrades.
Ford's 7.3L Power Stroke remains a popular engine for owners who want to keep an older truck working. Its cast-iron construction and oil-actuated HEUI injection system are part of its reputation, but decades of service also bring predictable electrical, oil-system and exhaust issues. This guide covers the engine's basic specifications, ten common trouble spots and sensible upgrade paths, with fitment distinctions for early trucks and 1999–2003 applications.
What makes the 7.3L Power Stroke durable?
Introduced for the 1994 model year and offered into 2003, the turbocharged 7.3L V8 replaced the earlier indirect-injection diesel in Ford's truck lineup. Its HEUI system uses high-pressure engine oil to actuate electronically controlled injectors. That makes clean oil and a healthy high-pressure oil system important to starting, idle quality and power delivery. Factory output and transmission combinations changed by year and application, so a single rating does not describe every truck.
The engine's long-service reputation does not eliminate maintenance. Wiring, seals, sensors, fuel delivery, cooling and the transmission deserve attention on a truck that may now be more than two decades old.
An early Ford F-250 equipped with the 7.3L Power Stroke.
7.3L Power Stroke specifications at a glance
| Production era | 1994.5–2003 Power Stroke applications |
|---|---|
| Displacement | 7.3L (444 cubic inches) |
| Configuration | Turbocharged V8 with cast-iron block and heads |
| Injection | HEUI direct injection using high-pressure engine oil |
| Bore × stroke | 4.11 × 4.18 inches |
| Factory output | Varies by model year, vehicle and transmission; check the specification for your exact application |
| Common pickup automatics | E4OD on earlier applications; 4R100 on later Super Duty applications |
Oil capacity, towing ratings and service procedures should be checked against the owner's guide for the vehicle's exact year and configuration. Do not use an engine-only figure as the truck's tow rating.
Ten common 7.3L Power Stroke problems and what to check
Similar symptoms can have different causes. Read diagnostic trouble codes and relevant live data before replacing parts, especially for hard-start and low-power complaints.
1. Camshaft position sensor
Symptoms: Intermittent stalling or a crank-no-start condition. Check: Scan for codes and verify engine-speed signal during cranking; inspect the sensor connector and wiring before fitting a quality replacement.
2. Injector driver module and its wiring
Symptoms: Misfire, rough running or no-start. Check: Inspect the module, connectors and nearby wiring for moisture or corrosion. Test the circuit before condemning the module.
3. Under-valve-cover harness and connectors
Symptoms: Intermittent injector or glow-plug faults and uneven running. Check: Inspect the valve-cover pass-through connectors and internal harness for loose, heat-damaged or corroded connections; repair the affected components.
4. High-pressure oil system, IPR and ICP sensor
Symptoms: Extended crank, hot no-start, erratic idle or low power. Check: Compare commanded and actual injection control pressure, inspect for oil leaks and examine the injection pressure regulator (IPR), injection control pressure (ICP) sensor and their wiring. Confirm the failed component before replacing a high-pressure oil pump.
5. Fuel bowl heater and electrical circuit
Symptoms: A blown fuse or an electrical no-start complaint on affected applications. Check: Inspect the heater, connector and related circuit using the wiring diagram for the truck's year; repair the short rather than repeatedly replacing the fuse.
6. Turbo pedestal seals and exhaust back-pressure valve
Symptoms: Oil collecting near the rear of the engine, or unusual exhaust behavior when cold. Check: Trace the source of the leak and inspect pedestal seals and valve operation. Replace worn seals or repair the faulty actuator as needed.
7. Exhaust up-pipe leaks
Symptoms: Soot near the up-pipes, an exhaust chuff or slower turbo response. Check: Inspect the pre-turbo joints and repair leaking connections. For applicable later trucks, BD offers a 1999.5–2003 up-pipe kit; verify vehicle fitment before ordering.
8. Glow plugs and relay
Symptoms: Long cold cranking, rough starts or white smoke at startup. Check: Test the plugs, relay and under-valve-cover connections. Cold-start trouble can also involve batteries, cranking speed or fuel delivery.
9. Oil cooler seepage
Symptoms: External oil or coolant residue around the cooler. Check: Clean the area and identify the source before resealing or replacing components. Any suspected oil and coolant cross-contamination calls for further diagnosis.
10. Charge-air boots and intake leaks
Symptoms: Low boost, oil residue at a boot or sluggish response under load. Check: Pressure-test the charge-air path and inspect boots, clamps, tubes and intercooler connections. Repair the leak and recheck under load.
Where to start before buying parts
- Record the symptom and whether it occurs cold, hot, at idle or under load.
- Read codes and live data, including cranking RPM and commanded versus actual injection control pressure where available.
- Check oil condition and level, batteries, fuel supply, fuses and visible wiring.
- Inspect for soot at up-pipes, oil at the pedestal or cooler, and leaks in the charge-air system.
- Confirm the root cause, then verify the repair with a road test under the conditions that produced the complaint.
Choosing 7.3L Power Stroke parts and upgrades
Start with the truck's actual use. A tow vehicle benefits from sound cooling, exhaust sealing, braking and transmission health. A truck built for stronger response may need airflow, fueling and control changes together. Check year and vehicle fitment before ordering: products for a 1999.5–2003 pickup do not automatically fit an earlier truck or an E-Series van.
A 1999 F-250 Super Duty from the later 7.3L application range.
Turbo and exhaust
Repair boost and pre-turbo exhaust leaks before assuming a larger turbo is needed. For compatible pickups, BD's Turbo Thruster II Kit is listed for 1999.5–2003 applications and explicitly excludes E-Series vans. Browse the 1999–2003 exhaust collection or the 1994–1997 exhaust collection for the appropriate generation.
Fuel system and HEUI support
Resolve fuel-pressure, oil-pressure or injector faults before adding fueling. When planning a larger injector or turbo setup, match fuel supply, high-pressure oil capacity, calibration and the rest of the drivetrain to the intended use. BD's fuel-system collections separate 1994–1997 from 1999–2003 applications.
Transmission cooling and control
For a later automatic truck, inspect the 4R100 and monitor transmission temperature before adding power or towing harder. BD's 1999–2003 transmission collection includes transmission, converter, cooling and control options. Choose parts based on the exact transmission, drivetrain and workload.
Exhaust braking for towing
An exhaust brake can provide additional downhill control on a properly matched truck and trailer. Review the 1999–2003 exhaust brake collection and confirm compatibility with the truck's transmission and exhaust configuration.
How much can a 7.3L Power Stroke tow?
There is no single tow-capacity number for every 7.3L truck. The applicable rating depends on model year, F-Series model, cab, bed, axle ratio, drivetrain, transmission, hitch setup and trailer type. Check the vehicle's owner's guide, door labels and Ford towing information for its exact configuration before selecting a trailer. Engine upgrades do not increase the vehicle manufacturer's rated limits.

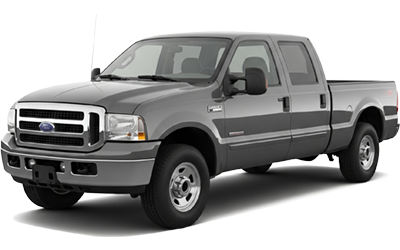

A later 7.3L-era Ford F-350 Super Duty.
Frequently asked questions
What years was the 7.3L Power Stroke offered?
It was introduced during the 1994 model year and continued into 2003. Parts fitment differs across early trucks and later Super Duty applications; many BD products also specify a 1999.5 cutoff.
What are the most common 7.3L Power Stroke issues?
Cam sensor, injector electrical, high-pressure oil, glow-plug and exhaust sealing faults are recurring concerns. Test the relevant circuit or system before replacing a major component.
What should I upgrade first on a towing truck?
First correct maintenance and diagnostic issues. Then consider transmission cooling and condition, exhaust sealing and a compatible exhaust brake according to the load and terrain. Confirm that the truck and trailer stay within their rated limits.
Browse BD's 1994–1997 7.3L collection or 1999–2003 7.3L collection, and verify exact model-year and application fitment on each product page.
