5.9L Cummins Injectors (2004.5–2007): Complete Owner’s Guide

How to diagnose tired injectors, choose the right BD replacement (Stock, StockPlus, or Premium), and install them the right way—clean, calibrated, and ready to run.

Quick Summary: Common symptoms (hot hard-start, haze, knock, fuel dilution) • How we build BD-Built injectors in-house • Why calibration tolerances matter • Stock vs StockPlus vs Premium • Install best practices & warranty notes.

By 200k+ miles, many 2004.5–2007 common-rail 5.9L trucks begin to show injector wear: hot-start struggles, a faint idle haze, rising balance/cylinder contribution corrections, or diesel smell in the oil. The Bosch common-rail system is exceptional when it’s healthy—but, because everything runs at very high pressure, small leakage in the nozzle or control valve creates big drivability changes. The fix is straightforward: quality parts, proper calibration, and clean installation.

The BD-Built Lineup (’04.5–’07 5.9L)

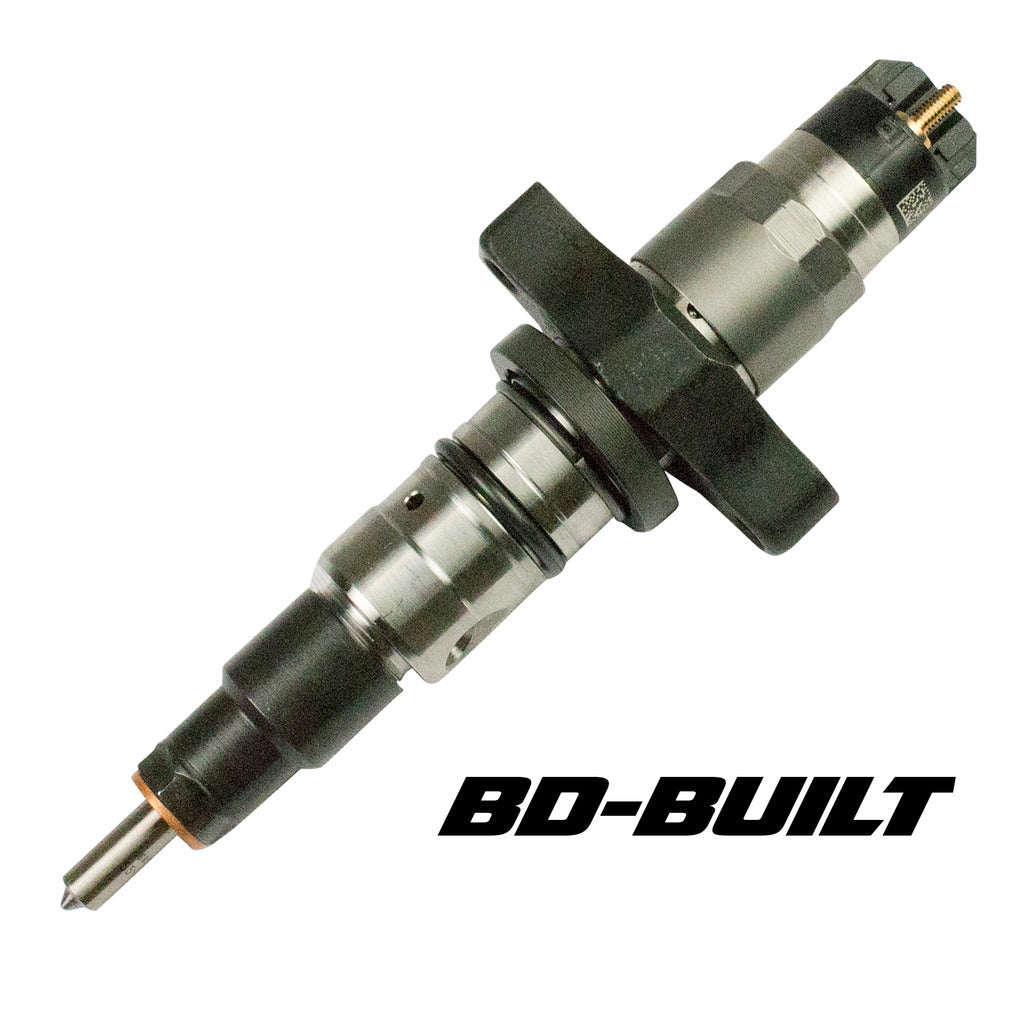

BD-Built 5.9L Cummins Injector — Sold individually. Direct-fit replacement; no tuning required.

Option What’s Inside Why Choose It
Stock New Bosch nozzle & control valve; built by Bosch-trained techs; validated on a Bosch 815 test bench across 8+ operating points. Restore factory drivability, emissions compliance, and reliability on a stock truck.
StockPlus All Stock features, then precision-calibrated to ±2% flow tolerance (vs OE ±5%). Typical +5–15 hp headroom without changing manners. Best seller for daily/tow rigs that want OE feel with tighter balance and a touch of margin.
Premium Reman built with brand-new Bosch nozzle, solenoid, control valve—maximum refresh of the wear items. High-mileage restorations and owners who want the most “new-injector” content possible.

Bench Validation: Every injector is VSR-cleaned and Bosch 815 test-bench verified for pilot, main, and return under multiple pressures and durations before it leaves our line.

How Worn Injectors Show Up

  • Hard hot starts or extended crank after heat-soak.
  • Idle haze or white smoke that clears with rpm; diesel smell in engine oil (fuel dilution).
  • Cold knock, rough idle, or elevated cylinder contribution correction on scan data.
  • Excess return flow (leak-back) during a bottle test; rail won’t hold commanded pressure at crank.
  • Misfire under load with normal boost—often one or two cylinders out of range.
Quick Diagnostic Playbook
  • Fuel in oil? Shorten oil intervals and confirm with a simple dilution test—don’t run fuel-thinned oil.
  • Scan data: Watch commanded vs actual rail pressure; run a cylinder contribution test when warm.
  • Return test: Bottle return lines per cylinder; outliers point to the culprit(s).
  • Rule out air & lift-pump issues: Verify inlet supply and clear filters before condemning injectors.

How BD Builds & Calibrates

  • New Bosch nozzle & control valve on every unit; Premium also renews the solenoid.
  • Bosch-trained technicians assemble to OE procedures in a clean environment.
  • ±2% flow tolerance (StockPlus) tightens cylinder-to-cylinder balance for a smoother idle and cleaner emissions.
  • 8+ point validation on a Bosch 815 bench for pilot, main, and return across pressure ranges.

Install Best Practices (Do It Once, Right)

  • Cleanliness is everything: Cap every open line/port; blow out the injector bores; keep dust away from high-pressure connections.
  • Use new high-pressure lines & feed tubes and correct torque/angle procedures; they are designed as single-use sealing interfaces.
  • Oil & fuel prep: Change oil if contaminated; install a fresh fuel filter and prime until absolutely air-free.
  • No programming required: These ’04.5–’07 5.9L injectors do not require coding—just verify no leaks and recheck rail pressure.
Recommended Add-Ons
  • New injector lines / feed tubes for reliable sealing and even cylinder balance.
  • Fresh fuel filter and a thorough prime to protect new components.
  • Quality oil (short interval after fuel-dilution events).

Warranty & Emissions Notes

  • Warranty: Parts 24-Months.
  • Coverage notes: Manufacturing/material defects covered; cracks from excessive fuel pressure not covered; high return flow on performance variants not covered after 12 months.
  • Emissions: Certain part numbers are 50-state legal by design; others meet EPA reasonable basis. See product page for EMS details and applicable part numbers.
  • Install time: ~3 hours (typical; varies by condition and corrosion).
Ready to restore smooth starts and crisp throttle? Choose your injector:
• BD-Built 5.9L Injector — Stock / StockPlus / Premium (’04.5–’07)
5.9L Cummins Common Rail Fuel System Injector Calibration Tow & Daily

Always verify part numbers and torque specs in the BD installation instructions for your exact model year. Keep emissions equipment intact and compliant.
