Ford 6.0L Power Stroke Exhaust Manifolds: Symptoms, Fixes & BD Upgrades

A complete, shop-level guide to identifying 6.0L manifold failures, why they happen, and how BD’s heavy-duty replacements solve warping, leaks, and broken studs for good.

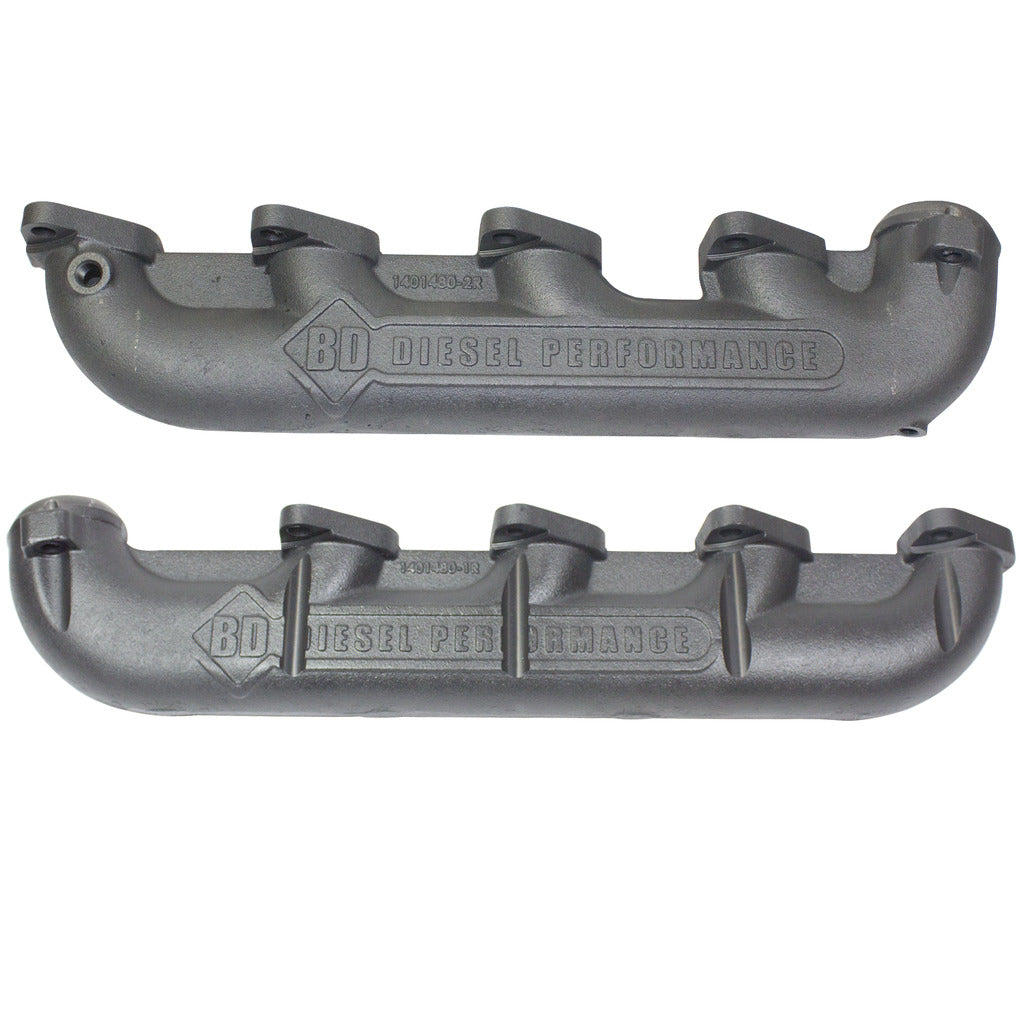

Quick Summary: The factory 6.0L castings are prone to warpage and leaks after repeated heat cycles. BD’s heavy-wall, high-silicon ductile-iron manifolds with thicker flanges and longer hardware restore seal, improve durability, and include gaskets for a clean install.
Shop Your Fit:
• 6.0L Power Stroke Exhaust Manifold Set (2003–2007)
• Driver’s Side Manifold (2003–2007)
• Passenger Side Manifold (2003–2007)

Common 6.0L Manifold Failure Symptoms

  • Tick on cold start that quiets when warm (leaking at the head or crossover joint).
  • Exhaust smell in the bay and soot trails near the flange or ports.
  • Slower spool / lazy response from lost drive pressure to the turbo.
  • Broken or seized studs from heat-soak and clamp-load loss.

Why BD Manifolds Fix It Long-Term

  • High-silicon ductile-iron castings resist cracking and handle regen-like heat cycles and towing loads.
  • Thicker walls & flanges help retain heat (better turbine energy) and reduce warpage over time.
  • Hardware & gaskets included for a straightforward install (see each product page for exact kit contents).
  • Designed for OE fit with factory heat shields, EGR/uppipe interfaces, and sensor provisions retained.

Set vs. Single Side — What Should You Buy?

  • Replace both (recommended): If one side leaked, the other has seen the same heat cycles. The complete set restores clamp load and symmetry across banks.
  • Single-side fix: Choose Driver or Passenger if a localized leak or broken studs are confirmed on just one bank.

Install Tips from the Bay

  • Prep the fasteners: Soak studs/bolts in penetrating oil ahead of time; heat the stubborn ones. Extractor sockets save hours.
  • Clean the sealing faces: Scrape and Scotch-Brite the head ports flat; wipe with brake-clean before gasket install.
  • Center-out torque pattern: Torque in stages from the center outward. Re-check after initial heat cycle.
  • Check the uppipe bellows & V-bands: If they’re sooted, address now—fresh manifolds can’t seal a bad joint downstream.
  • Re-fit heat shields correctly: Keeps underhood temps and nearby wiring happier long-term.

At-a-Glance Comparison

BD 6.0L Manifolds vs. Typical Worn OEM
  • Casting: Heavy-wall, high-silicon ductile iron vs thin OE casting prone to warp.
  • Flange: Thicker, machined sealing faces vs overheated, uneven mating surfaces.
  • Hardware: Fresh studs/spacers and gaskets included vs seized hardware reused.
  • Turbo drive: Better heat retention → stronger turbine energy vs drive loss through leaks.
Related BD Solutions
• Tap-Shifter + Exhaust Brake for 6.0L (5R110): Get fingertip gear control
• New! HD EGR Cooler (Square-Tube) 6.0L: Stronger core, 5-year limited warranty
6.0L Power Stroke Exhaust Manifolds Broken Studs Turbo Drive Pressure Tow & Heat

Always follow the torque values and procedures provided with your BD kit and in the factory service information. Verify fitment for your exact build date.
