Stop F-150 3.5L EcoBoost Exhaust Leaks: BD Manifold Fix

Cracked or warped manifolds on early EcoBoosts are more than a noise—they’re lost boost energy, slow spool, and cooked turbo hardware. This is the story of how they fail, how we’ve seen them behave in the real world, and why BD designed a manifold kit that seals—and stays sealed.

If you’ve owned an early EcoBoost long enough, you’ve probably met the cold-start choir. It begins as a faint tick on a chilly morning and slowly turns into a rasp under load. In our bays, that sound almost always traces back to the same root on 2011–2016 trucks: warped or cracked exhaust manifolds and blown gaskets. We’ve seen it on daily drivers, tow rigs, and contractors’ trucks that idle through job sites. By the time the noise is obvious, clamp load at the head has fallen off, studs are fatigued, and the turbochargers are being starved of the exhaust energy they need to light quickly. The truck still runs—but throttle response dulls, cabin smell creeps in, and EGTs climb when you’re pulling a grade.

How It Shows Up on the Truck

The pattern is consistent. Cold, you hear a sharp tick that fades as the metal expands. Under steady load there’s a dry rasp and a slight haze near the cowl. Many owners also report needing more pedal to hold highway speed with a trailer—classic sign of lost turbine drive pressure. Pop the hood and you’ll often find black streaking at the head-to-manifold seam, sometimes with a stud already missing. If you use a smoke machine, smoke will roll right out of the outer ports first.

Why the OE Manifolds Fail (and Keep Failing)

Ford’s 3.5L EcoBoost head is drilled and tapped for eleven exhaust studs per bank. The factory manifold only uses eight. On paper, it works; in the real world, thin castings see thousands of heat cycles. They move. Clamp load falls off at the edges, the gasket embrittles, hot gas starts cutting across the sealing face, and studs begin to bend and snap. We’ve put OE castings on a table and watched them rock—bowed enough that even new gaskets won’t last. That leak is a two-for-one problem: it’s a noise and fume issue, and it bleeds the energy your turbos need to spool. The result is softer mid-range, slower response, and more heat in the bay.

Why BD Designed a Different Manifold

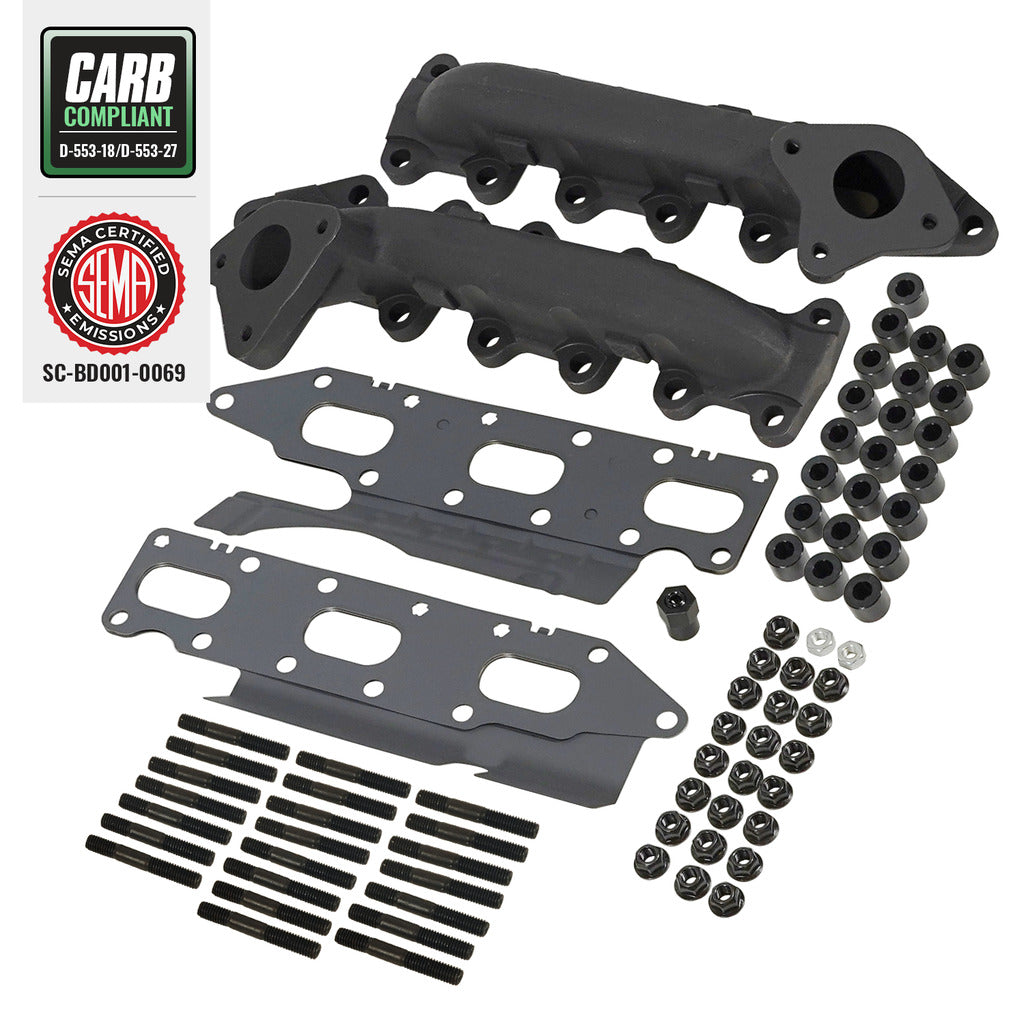

A quick gasket swap or another stock manifold may quiet things for a season, but it doesn’t change clamp load or casting stability. BD’s approach was simple: build a manifold that lives a calmer life under heat and uses the hardware the cylinder head already gave us. That meant a thicker casting in high-silicon ductile iron to resist warping, and a flange layout that utilizes all 11 stud locations so clamp load doesn’t fall off at the edges. We paired that with 15 mm longer studs and spacers to reduce fastener bending and keep load uniform as the manifold heat-cycles.

Flow mattered too. The OE ports average ~110 cfm each on our bench. The BD casting averages ~139 cfm per port—about a 25.9% gain. That doesn’t turn your F-150 into a race truck, but it does restore turbine efficiency, trims spool time, and helps keep EGTs in check when you’re pulling. If you want to see the exact kit we’re talking about for 2011–2016, here it is: BD 3.5L EcoBoost Manifold Kit (our most popular fitment for this generation).

Fitment, Variants & Where to Start

Coverage spans more than just the F-150. Per the product page, this casting family also fits Expedition 2015–2017, Transit 2015–2024, Lincoln Navigator 2015–2017, and Mark LT 2011–2014. If you only need one side or you’re working on a later 2017–2020 truck, you’ll find the left/right singles and additional year ranges on the BD Ford Gasoline Exhaust System landing page. Planning a turbo service at the same time? Grab the turbo install kit options there too—fresh gaskets and hardware make button-up clean.

Install Tips & Torque Pattern (Do It Once, Right)

This job is straightforward but rewards patience. Soak OE studs with penetrant the night before. Once the manifolds are off, chase every head thread and blow out debris so your torque equals real clamp load. Set the BD gasket dry, hand-start all eleven studs with spacers, and torque using a center-out, criss-cross sequence. After your first long drive and a full cool-down, re-check fasteners—heat-cycle re-torque helps the gasket “set” and keeps the fix permanent. If you want a smoother path to access hardware, add the optional 1043002 addition parts kit listed on the product page.

Exhaust Leak or Boost Leak? Quick Diagnosis

Pre-turbo exhaust leaks make a sharp tick cold that softens hot, leave black soot at the head seam, dull spool, and raise under-hood temps. Post-turbo charge-air leaks whistle or whoosh only under load, leave oily residue at a boot, and feel like a misfire at higher throttle. Fix both, but fix the exhaust side first—that’s the energy source for your turbos.

What Owners Notice After the Fix

The cabin gets quiet again. Spool comes back sooner in the tach, especially with a trailer. Long grades stop cooking everything under the hood. Most importantly, the repair sticks because the manifold isn’t fighting the same clamp-load problem that created the leak in the first place. That was the whole point of the redesign—fix the root cause, not just the symptom.

Emissions: 50-STATE LEGAL direct-replacement manifold. Always follow the torque specs and sequence in the BD installation instructions included with your kit.
