Turbo Sizing Basics: Don’t Over‑ or Under‑Turbo

Pick the right A/R, wheel sizes, and target power for tow, street, and work trucks—in plain language. We’ll decode compressor maps, match sizes to drivability and EGT goals, and share real-world combos that just work.

Quick Summary: Start with the job (tow vs daily vs play), then match airflow and backpressure. Use BD’s Turbo Match Calculator to estimate flow and wheel size, keep drive‑pressure ~≤ 1.5:1 of boost for longevity, and don’t sacrifice low‑rpm response if you tow.

If your truck spends most of its life pulling grades, idling on job sites, or commuting with occasional toys in tow, the right turbo is about balance. Too small and EGTs spike when loaded; too big and it’s a dog off‑boost. The goal is simple: pick a compressor/turbine set that lives in the sweet spot of its map during your real driving, not just on a dyno pull.

The Few Specs That Actually Matter

A/R (Area/Radius)

Lower A/R (e.g., .70) spools quicker and builds backpressure sooner; higher A/R (e.g., .91) flows more up top but needs more exhaust energy to light. For tow rigs and VGTs, prioritize response and manageable drive pressure.

Wheel Sizes & Trim

A modest step‑up in compressor exducer and a turbine with lower moment of inertia improves snap without killing spool. BD’s Screamer VGTs are a good example: billet compressor + quick‑spool turbine to lower EGTs under load while keeping exhaust‑brake function.

Compressor Maps, Without the Jargon

Think of a map as a comfort zone. Your goal is to keep cruise, climb, and pass‑events inside the happy islands—not in surge (far left) or choke (far right).

Rule‑of‑thumb steps to ballpark airflow:
  1. Pick a power goal (rear‑wheel). For diesels, ~hp × 0.10 = lb/min of air is a simple starting point (varies with BSFC/AFR).
  2. Estimate boost you’re comfortable running on your platform (e.g., 25–35 psi on many street diesels with proper fuel/EGT control).
  3. Plot that mass flow & pressure ratio on a similar‑sized map to see if cruise/tow points land mid‑island.

This is a starting point. Use the calculator below to refine, then sanity‑check against real builds.

Use BD’s online tool: Turbo Match Calculator → enter displacement, target power, fuel, and altitude to compare wheels and pressure ratios.
Disclaimer: BD Engine takes no responsibility in the accuracy of the above information. BD Engine Brake does not imply any warranty based on this calculator. This online calculator should be used as a tool only. Overspeed and damage can result from many variables.

Match the Turbo to the Job

Tow‑First / Work Truck

  • Priorities: Low‑rpm response, EGT control, strong exhaust brake.
  • Guidance: Stay conservative on compressor size; ensure turbine can breathe to hold drive pressure ≤ 1.5× boost.
  • Example: 6.7L Cummins with BD Screamer VGT (’19–’24) keeps factory manners, adds flow for cooler grades.

Daily / Weekend Play

  • Priorities: Crisp throttle, mid‑range pull, manageable smoke/EGT.
  • Guidance: Mild wheel step‑up + freer turbine often feels “bigger” everywhere without lag.
  • Example: 3.5L F‑150 EcoBoost with BD Screamer pair (’13–’16)—stock‑appearing, 50‑state legal, supports ~415 hp.

Drive Pressure & EGT: The Longevity Lens

Watch DP/Boost and EGT. When drive pressure far exceeds boost (e.g., 2:1), shaft speed soars, turbine temps rise, and pistons live a harder life. Pulse‑divided manifolds and efficient turbines help; so does the right size in the first place.

Signal What It Means Fix Path
EGT climbs fast under load Compressor/turbine undersized or fueling ahead of air Flow upgrade or smaller tune; improve intercooler/boots
Lazy until 2,200 rpm Too large A/R or wheel for use‑case Step down turbine A/R or choose quicker wheel set
High DP vs boost Turbine choking / backpressure More turbine flow or divided manifold

VGT vs. Fixed Geometry (FG): Which One?

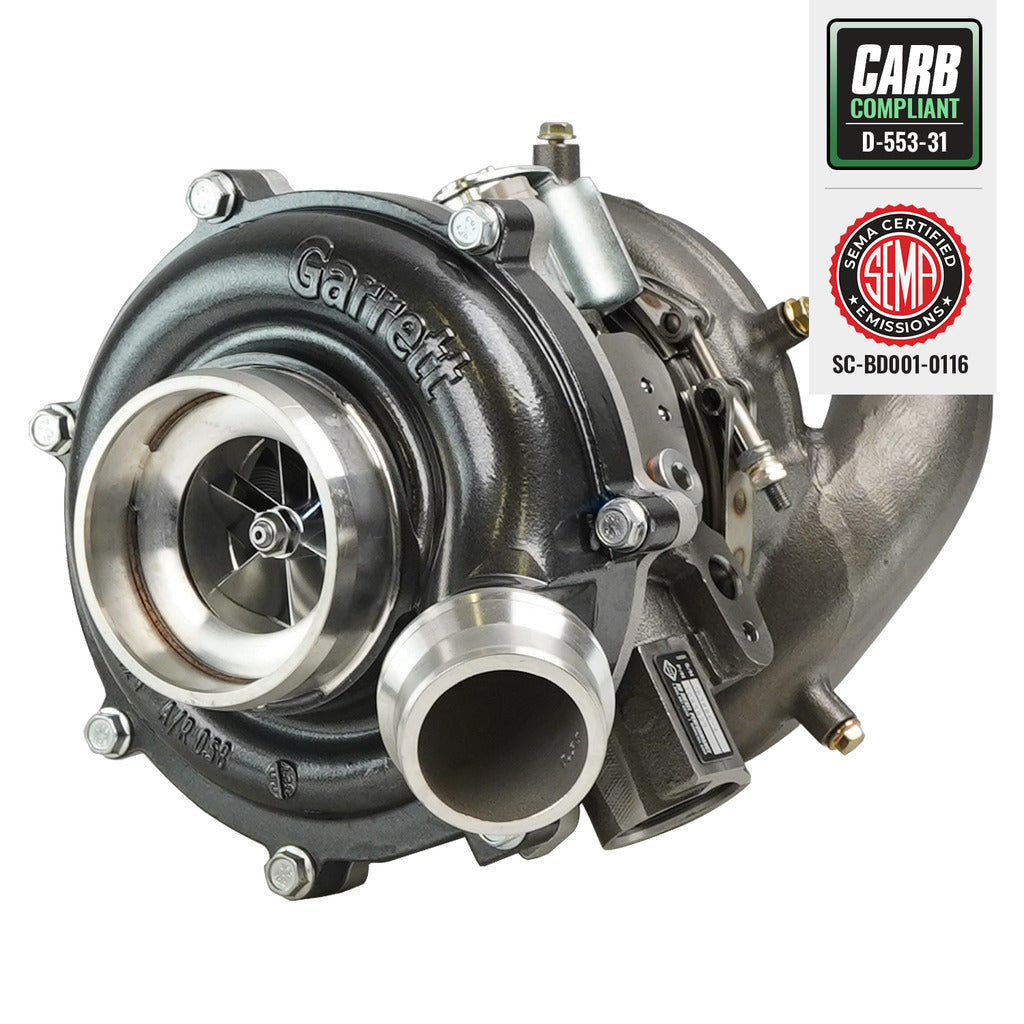

  • VGT (Variable): Best for mixed‑use and towing—quick spool, exhaust brake, smart with OEM strategies. BD Screamer VGTs are drop‑in, actuator‑calibrated, 50‑state legal in key applications.
  • Fixed Geometry: Simpler and potent for peak power, but usually trades some low‑rpm response and loses the factory brake unless you add one.

Starter Recipes (Sanity Checks)

6.7L Cummins tow rig (stock fuel, 12–15k trailer): Keep VGT; choose a Screamer VGT to lower EGTs on grades and retain brake. Add a pulse‑divided manifold where available.

3.5L EcoBoost daily: Screamer pair (’11–’16) for better flow at stock boost—no tuning required, wastegates pre‑calibrated.

Lightly tuned diesel work truck: Modest wheel step + healthy intercooler/boots + watch DP/Boost. If DP is high, the turbo is the bottleneck, not the tune.

FAQ

Will a bigger turbo always lower EGT?
Not if it moves the whole curve out of your driving range. You want enough compressor and turbine to breathe under load, without giving up daily spool.

How do altitude and tire size factor in?
Higher altitude raises pressure ratio for the same boost gauge reading; bigger tires/load demand more flow earlier. Size for the worst case you actually drive.

Can I run a Screamer without tuning?
Yes—BD’s Screamer families for 6.7L Cummins and 3.5L EcoBoost are designed as drop‑ins with OEM strategies; tuning optional.

Ready to size it right? Start with the BD Turbo Match Calculator. For proven drop‑ins, see:

Disclaimer: BD Engine takes no responsibility in the accuracy of the above information. BD Engine Brake does not imply any warranty based on this calculator. This online calculator should be used as a tool only. Overspeed and damage can result from many variables. Always verify fitment, emissions compliance, and tuning requirements for your exact year/trim.
