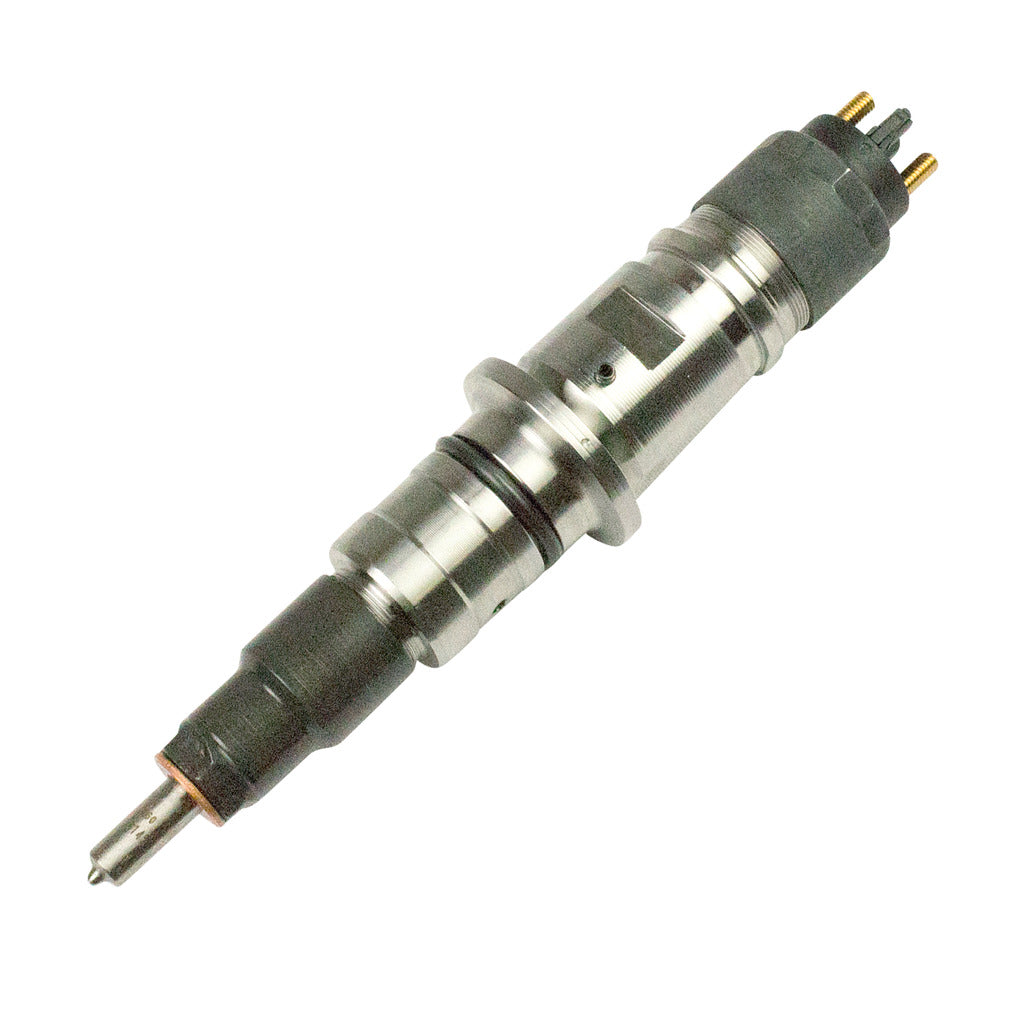

6.7L Cummins Injectors: Sizing, Symptoms, and the BD In-House Difference

A shop-floor guide to diagnosing tired injectors, choosing the right +60 / +120 / +180 HP BD injectors, and installing them right the first time on 2007.5–2018 Ram 2500/3500—plus a practical reference table for commanded duration.

Quick Summary: Common-rail symptoms & tests • Why BD’s in-house build matters (new Bosch nozzles & control valves, ±2% calibration) • How to pick +60 / +120 / +180 HP • Air/fuel & turbo match • Break-in, priming, and warranty notes • Handy injector duration reference table.

If your 6.7L has a cold start haze, rough idle, rising return flow, or that “one cylinder not quite pulling” feeling on grades, you’re in injector territory. On the dyno we see it as rail pressure struggling to keep up; on the road you feel it as inconsistent torque and climbing EGT on the same hill you’ve always towed. The fix isn’t guesswork—test, size correctly, and install injectors that are built and calibrated to tighter-than-OE tolerance.

Why BD Injectors (Built In-House) Feel Better, Longer

  • Every injector receives a new Bosch nozzle and control valve.
  • Manufactured by Bosch-trained technicians, then validated on a Bosch 815 bench across 8+ operating conditions.
  • Precision calibrated to ±2% flow (OE typical ±5%) for smoother balance rates and idle quality.
  • OE nozzles are extrude-honed—choice of ~33%, 43%, or 53% over (≈+60 / +120 / +180 HP potential with proper supporting mods).

Shop the lineup: BD 6.7L Cummins Performance Injectors (2007.5–2018).

How to Confirm It’s Injectors (Not Something Else)

In-bay checks:
  • Balance rates & smooth-running: Outliers at hot idle point to a weak hole. Look for changes with electrical cut-out test.
  • Return flow (leak-off): Excess return on one or more injectors = worn control valve/nozzle bleed.
  • Rail pressure tracking: Command vs measured under load; sag with haze = fueling leakage or inadequate supply.
  • Compression & pilot correction: Rule out mechanical and listen for combustion “knock sync” changes with pilot disabled.

Pick Your Size: +60 / +120 / +180 HP (What Changes, What You’ll Need)

Size (Nominal) Nozzle Over (≈) Use-Case & Notes Recommended Supporting Mods
+60 HP ~33% over Daily/tow. Crisp response with lower duty cycle vs stock, modest EGT drop under the same load. Healthy CP3, clean filter, good lift-pump supply, stock turbo OK, EGT gauge/pyro.
+120 HP ~43% over Heavier tow / weekend power. Noticeably stronger mid-range; plan for more air if used hard. High-quality lift pump/filtration, intercooler health, consider turbo upgrade or manifold improvements to control drive/EGT.
+180 HP ~53% over Performance street/play. Air & cooling become the limiters; keep it clean and controlled. Strong supply (lift pump), CP3 capacity review, larger turbo/manifold, pyrometer, trans/clutch readiness.

Bigger injectors reduce commanded duration for the same torque—if air and rail supply are there. Size to your truck’s airflow and heat management, not just a peak HP number.

Don’t Reuse Old Lines—Use the Install Kit

One-and-done hardware matters. On a CR Cummins, reusing aged lines and crush seals is a fast way to chase leaks. BD’s kit includes the gaskets, OEM-fit fuel lines, and supply tubes you need.

Fuel Injector Duration: Practical Reference

Use this as a guideline when reviewing logs. Actual values vary with calibration, altitude, temperature, pilot/post injections, and load.

Operating Condition Main Pulse Width (ms, approx.) Rail Pressure (bar, approx.) Notes
Hot idle 0.5 – 0.9 300 – 450 Small pilot events active; uneven rates hint at injector drift.
Steady cruise 0.9 – 1.5 600 – 1100 Watch trims & balance rates on grades.
Tow grade (moderate) 1.6 – 2.2 1200 – 1600 Healthy rail should track command with minimal sag.
Wide-open (stock air) 2.2 – 2.8 1500 – 1800 EGT is the limiter; larger injectors can reduce duration at same torque.
Wide-open (bigger air) 2.8 – 3.4 1700 – 2200 Ensure lift pump & CP3 supply; log rail delta & lambda.

Tip: Compare commanded vs measured rail and EGT on the same pull. If duration rises but torque doesn’t, you’re air- or pressure-limited.

Install, Prime & Break-In (Do This Once, Right)

  • Cleanliness: Cap every open line. Any grit will score a new control valve/nozzle fast.
  • Lines & seals: Use new high-pressure lines and supply tubes; torque to factory spec in sequence.
  • Prime: Fill the filter, key-cycle lift pump (or prime manually) until solid; crank in short bursts with injectors connected.
  • First 100–200 miles: Vary load/RPM, avoid extended idling and WOT dyno pulls on day one. Re-check for seepage.

Install time guide: ~4h 30m. Always reference the factory service manual for torque values and procedures.

Air, Heat & Matching the Package

Injectors don’t make power alone—they enable it. A manifold with pulse-divided flow and a healthy turbo keep drive pressure reasonable and EGTs in check, especially with +120 and +180 sets. If you’re still on the fence about air, start with +60’s and a manifold, then step up later.

Related BD parts: 6.7L Pulse-Divided Manifold • High-Idle Kits (winter warm-ups)

Warranty & Fine Print

  • BD Injectors: 24-month parts warranty (manufacturing/materials).
  • Performance sets: High return flow coverage limited to 12 months.
  • Exclusions: Damage from contaminated fuel, improper installation, or excessive commanded pressure is not covered.

Keep emissions equipment intact and compliant for your region. Performance injectors may not be legal for on-road use in some areas.
