Ford 6.7L Power Stroke (2017+): High Idle Control Explained

Faster warm-ups, stable charging, PTO-friendly behavior—no splicing, no tuning.

1036612,78801:5E6F5F087EF024FC386F4E8C53F28C3C

Work trucks idle. Make those minutes count—without stressing the system.
Quick Summary: Why high idle matters on 2017+ 6.7L Power Stroke trucks, how BD’s plug-in controller works with OE logic, recommended RPM ranges for cold starts, PTO and long idle, install notes, troubleshooting, and the exact BD kits for 2017–2022 and 2023+.

Why High Idle Matters on the 6.7L Power Stroke

Modern diesel aftertreatment and charging systems were designed around temperature and load. At stock curb idle, the engine may take a long time to warm, alternator output can hover at the edge of demand (lights, plows, pumps, inverters), and extended low-temp combustion encourages soot and fuel dilution. Bumping idle speed in a controlled way:

  • Speeds engine warm-up and defrost for safer winter starts
  • Raises alternator RPM to keep batteries charged under heavy accessory loads
  • Improves oil pressure & circulation during extended idling/PTO
  • Helps reduce low-temp sooting common to long curb-idle sessions

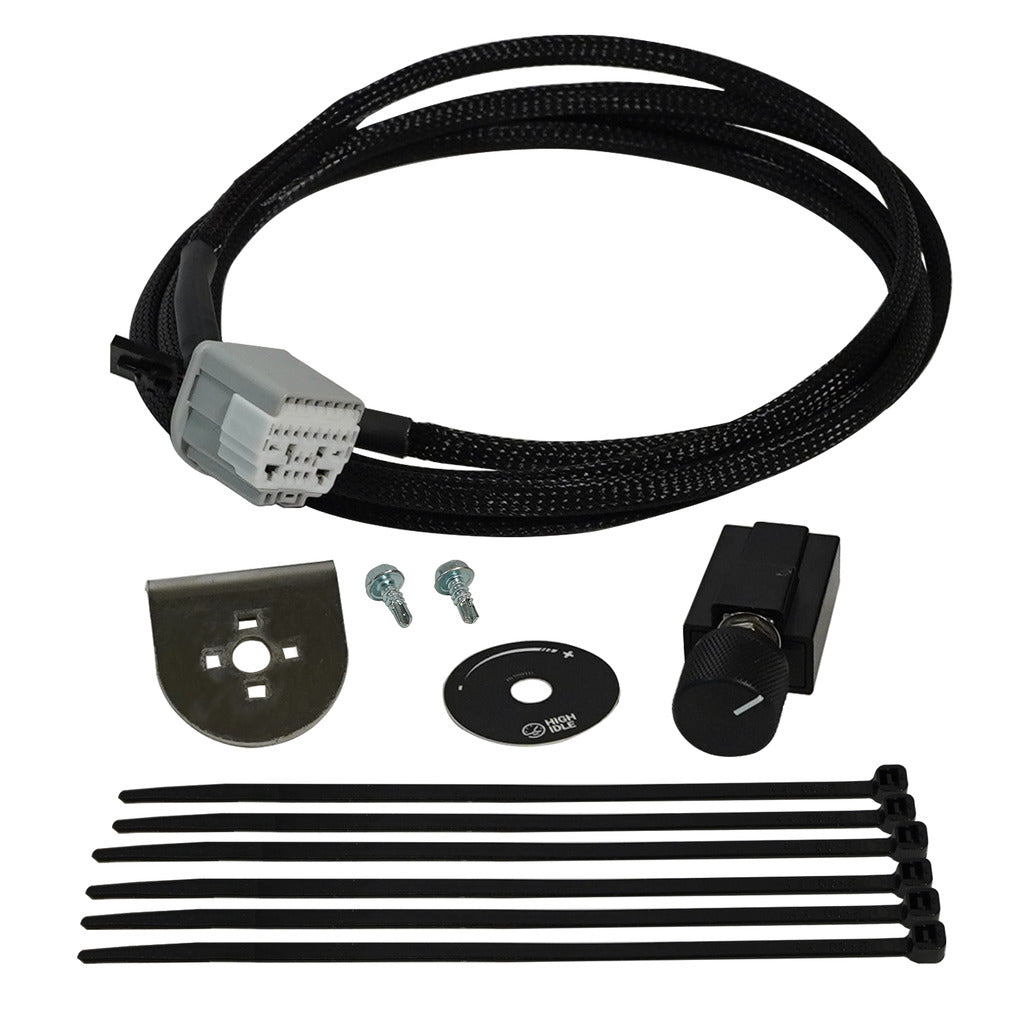

The BD Plug-In Solution (Kits & Fitment)

2017–2022 F-250/F-350/F-450/F-550 (6.7L)

BD High Idle Control
Adjustable 900–3000 RPM • Plug-in harness • Bypasses Auto Engine Off.

  • Install time: ~30 minutes
  • Warranty: 12 months / 24,000 miles
2023+ F-250/F-350/F-450/F-550/F-600 (6.7L)

BD High Idle Control
Latest chassis integration • Same no-splice install & adjustability.

  • Install time: ~30 minutes
  • Warranty: 12 months / 24,000 miles

Note: Always confirm year/trim fitment on the product page. Some models and upfit packages may have unique enable conditions—see the install guide.

How It Works with OE Strategy

BD’s controller interfaces at a factory connector to request a higher idle speed using the truck’s built-in logic—no splicing, no custom tune. Because it speaks through OE pathways, critical safeguards (temps, faults, interlocks) remain in play. It also bypasses Auto Engine Off, so your engine won’t time out during legitimate work sessions.

Why “plug-in” matters
  • Preserves OE safety logic & failsafes
  • Clean removal for resale or diagnostics
  • No wire cutting → fewer future gremlins
Adjustable control
  • Set the RPM to the load, not a fixed guess
  • Fine-tune for winter vs summer needs
  • Keep noise/fuel use reasonable while working

Real-World Use Cases

Snow & Municipal

Plows, light bars, salt spreaders, radios, and inverters put a steady draw on the charging system. Raising idle keeps voltage healthy, reduces dimming, and helps warm the cab and defrosters while you stage between pushes.

Service & Utility Bodies

Welders, compressors, cranes, and PTO gear like steady RPM. Set an elevated idle for smoother hydraulic and electrical performance—and less cycling on and off.

Emergency & Standby

Scene lighting and auxiliary electronics need stable voltage. A small RPM increase reduces alternator strain and keeps batteries from dipping during long idle windows.

Remote Start & Cold Soak

Faster warm-ups protect interior materials, clear glass sooner, and help get the driveline into a happier temp window before you pull out.

Recommended RPM Settings (Start Here, Tune to Load)

Scenario Suggested RPM Notes
Cold start / fast warm-up 900–1100 Back down once coolant & trans temps stabilize
PTO / hydraulic upfits 1200–1500 Match to flow/pressure spec of your equipment
Heavy electrical loads 1500–2000 Watch system voltage; raise only as needed
Long idle in mild weather 900–1000 Keep noise/fuel reasonable while maintaining charge

These are starting points—every upfit and climate is different. Use the lowest RPM that meets your load and comfort needs.

Install & First-Use Checklist

Tools & Time
  • Basic hand tools, trim tool
  • Install time: ~30 minutes
  • Clean mounting surface for controller
Steps (summary)
  • Disconnect battery (safety best-practice)
  • Access factory connector; plug in BD harness
  • Mount controller; tidy the loom
  • Reconnect battery; set initial RPM target
Enable Conditions (typical)
  • Vehicle in P/N, parking brake applied
  • Foot off pedal; no active major DTCs
  • Observe all model-specific interlocks

Full instructions (PDF): Download the installation manual

Troubleshooting & Pro Tips

  • No RPM change? Verify connectors are fully seated, check that you’re in P/N with the parking brake set, and confirm no active DTCs. Cycle ignition and retry.
  • RPM overshoots your target? Reduce the setpoint. Big electrical loads (fans/chargers) can “step” idle higher than expected; tune for the actual load.
  • Battery health matters: Weak batteries mask charging gains—load test if voltage remains low.
  • Noise & neighbors: Use the lowest RPM that meets the job, especially during early mornings.
  • Safety: Never idle in enclosed spaces; obey local idling regulations.

Frequently Asked Questions

Does this require a tune or ECM flash?
No. The BD controller requests elevated idle via OE pathways—no tuning required.

Will high idle hurt my engine?
Using reasonable RPM for the task (see table) improves charging and warm-up. As with any idling, avoid enclosed spaces and extreme durations.

Does it affect emissions equipment?
The system works with OE logic. It doesn’t alter calibration or remove hardware.

What’s the range of adjustment?
Approximately 900–3000 RPM. Use the lowest RPM that achieves your goal.

Ready to get control of idle for winter, PTO, and worksite reliability? Choose your kit: 2017–2022 High Idle Control  |  2023+ High Idle Control

Always verify fitment by VIN/year on the product page. Follow safety procedures. Observe local idling regulations.
