5.9L Cummins 12-Valve (1989–1998) Exhaust Manifolds — Why They Fail & How BD Fixes Them

The first-gen and second-gen 12-valve Cummins (’89–’98) built a reputation for indestructible bottom ends—but the factory exhaust manifold is the weak link under heat and towing. Thin castings bow, runners crack, and drive pressure goes astray. BD’s pulse-manifold architecture solves the heat-cycle problem with thicker high-silicon ductile iron, slip-joint expansion, and fully machined flanges that keep clamp load and gasket crush where they belong.

Shop 12-Valve Manifolds
• 1989–1993 & 1994–1998 (5.9L 12V): Browse BD 12-Valve Manifolds
Quick Summary: Stock 12-valve manifolds tend to warp and crack from heat cycles and turbo weight. BD’s two-piece pulse design in thick hi-silicon ductile iron resists distortion, keeps gaskets sealed, and feeds the turbine with higher-energy pulses for cleaner spool. Most units include new hardware, spacers, and 1/8" NPT ports for a pyrometer.

Why the Factory 12-Valve Manifold Leaks, Warps, and Cracks

  • Heat-Cycle Bowing: Repeated tow/grade heat expands thin flanges; when they cool, they don’t return perfectly flat. Gasket crush drops and you get soot tracks and a cold-start tick.
  • Turbine Weight & Vibration: The turbo hangs off the manifold; with age and harmonics, the flange and runners take a beating—especially with larger-than-stock chargers.
  • Uneven Drive Pressure: Leaks upstream of the turbine sap pulse energy. Spool feels lazy and EGT can climb under load.

How BD’s Pulse Manifolds Solve It

  • High-Silicon Ductile Iron: Thicker, tougher casting resists cracking and keeps the sealing faces true after heat soak.
  • Two-Piece With Slip Joint: Allows controlled expansion and contraction so clamp load stays consistent over time.
  • Machined, Thicker Flanges: Flat surfaces maintain gasket crush; the head face seals without periodic “chasing” of leaks.
  • Pulse-Flow Architecture: Divided runners feed the turbine with stronger pulses for quicker lighting and steadier boost under tow.
  • Pyrometer-Ready: Pre-drilled 1/8" NPT ports (where applicable) simplify EGT monitoring during towing and tuning.

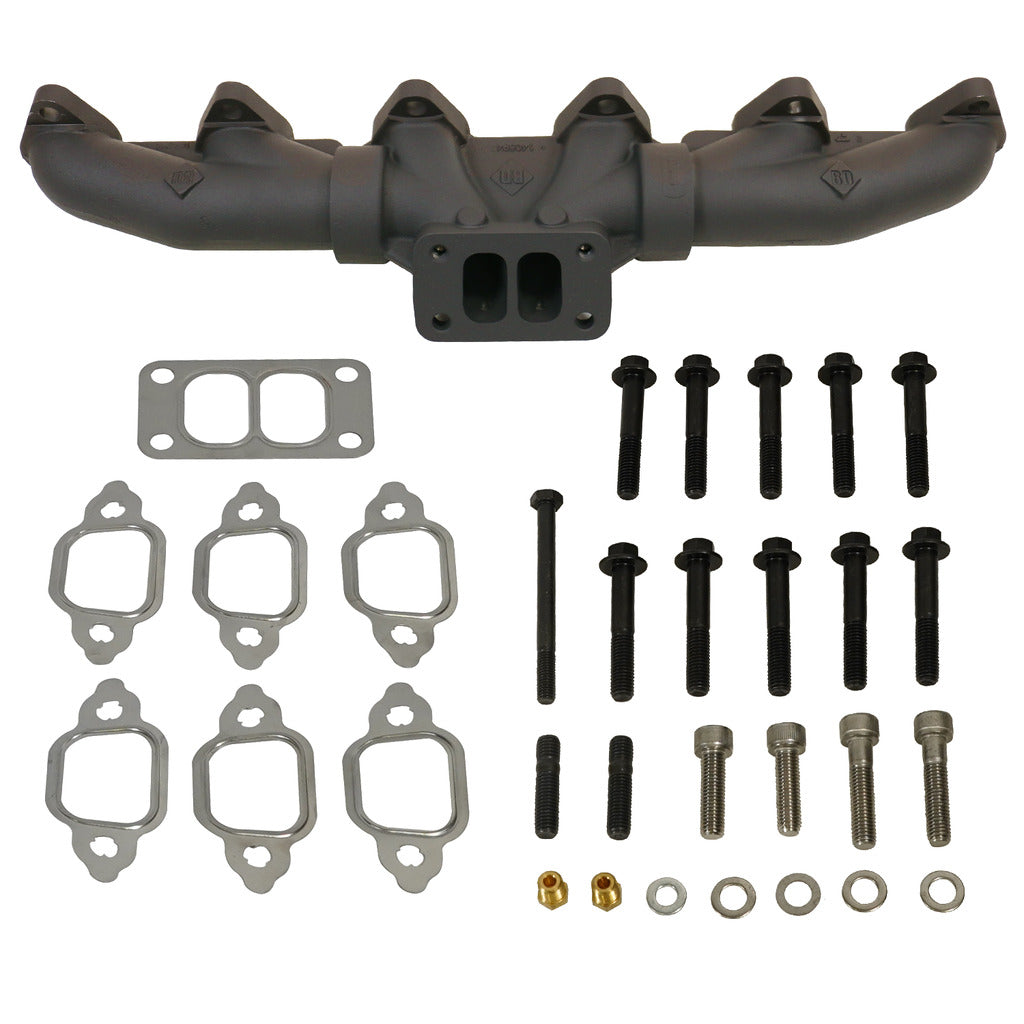

  • Hardware & Gaskets: Kits typically include upgraded studs/spacers/bolts and fresh gaskets to complete the job in one shot.

Fitment Notes: 1989–1998 (VE & P-Pump 12-Valve)

  • 1989–1993 (VE Pump): T3 divided turbine footprint is standard; verify actuator/downpipe clearance if you’re running a non-OEM turbo.
  • 1994–1998 (P-Pump): Same basic layout with minor hardware/heat-shield changes; BD pulse manifolds are designed to accommodate both eras.
  • T3 vs T4: Most stock/near-stock turbo setups are T3. If you’re stepping to a larger charger (e.g., S300/S400 frameworks), select the flange you intend to run.

What You’ll Notice After the Upgrade

  • Quieter Cold Starts: The “sewing-machine” tick from upstream leaks disappears when flanges stay flat.
  • Firmer Spool & Response: Better pulse energy to the turbine—especially noticeable with towing loads or mild tuning.
  • Lower Maintenance: Slip-joint expansion + longer hardware mean fewer re-torques and less time chasing soot trails.

Install Overview & Pro Tips

  1. Prep & Penetrant: Soak old hardware (days ahead if possible). Disconnect batteries. Support the exhaust and turbo to reduce side-loading as you remove fasteners.
  2. Turbo Strategy: Many techs remove the turbo with the manifold as a unit on rusty trucks, then separate on the bench. If you split in the bay, cap oil/coolant lines and protect the turbine.
  3. Surface Cleanliness: Bring the head face to clean metal with plastic/Scotch-Brite style tools—no gouges. Check flatness with a straightedge.
  4. Dry Fit the Slip Joint: Assemble the two-piece manifold loosely; ensure the slip joint moves freely. Position per instructions (arrow/markings) so expansion works with, not against, the fasteners.
  5. Hardware & Gaskets: Install new gaskets and supplied studs/spacers/bolts. Follow the recommended torque sequence from center-out in stages.
  6. Pyro Probe: If using a pyrometer, install your 1/8" NPT probe with anti-seize and proper insertion depth—do not bottom out on the flow path.
  7. First Heat Cycle & Re-Torque: After a full hot-cold cycle under load, re-check torque (where recommended). This step is key to long-term seal.

BD vs. Stock at a Glance

Feature Stock 12V Manifold BD Pulse Manifold
Casting Thin gray iron Thick hi-silicon ductile iron
Design One-piece Two-piece with slip joint
Flange Prone to bowing Thicker, fully machined
Pulse Energy Average Stronger pulses to turbine
EGT Port Usually drill-your-own Pre-drilled 1/8" NPT (where applicable)
Hardware Re-use if serviceable New studs/spacers/bolts included

Leak Diagnostics: What to Check Before You Swap

  • Soot Shadows: Look for black tracking around port edges and the turbine flange—signs of lost clamp load.
  • Tick on Cold Start: Fades as metal grows hot—classic upstream leak behavior.
  • Lazy Spool Under Tow: Upstream leaks bleed drive pressure; fix before blaming the turbo.

FAQs

Will I need tuning? No. Manifolds are bolt-on parts intended to work with stock fueling/emissions configuration (for these pre-emissions-era trucks).

Coating vs. bare cast? High-temp coated castings help with corrosion aesthetics. Either way, the thick ductile iron is the foundation of durability.

Do I have to upgrade the turbo? No. The pulse manifold benefits stock chargers and scales well if you step up later.
