CP3 Pump 101: Reliability, Upgrades & Tuning Tips for Cummins & Duramax

A deep-dive into the Bosch CP3 high-pressure pump—how it works, what fails, how to test it, and the smartest paths to upgrade for towing, daily driving, or big power. We’ll cover lift pumps and filtration, rail-pressure logging, 10–12 mm “stroker” pumps, dual-CP3 kits, and CP4→CP3 conversions—plus BD parts that make each stage reliable.

Jump to: What is a CP3? • Common Symptoms • Diagnostics & Logging • Lift Pumps & Filtration • Upgrade Paths • CP4 → CP3 Conversions • Tuning & Rail Strategy • Longevity Tips • FAQs

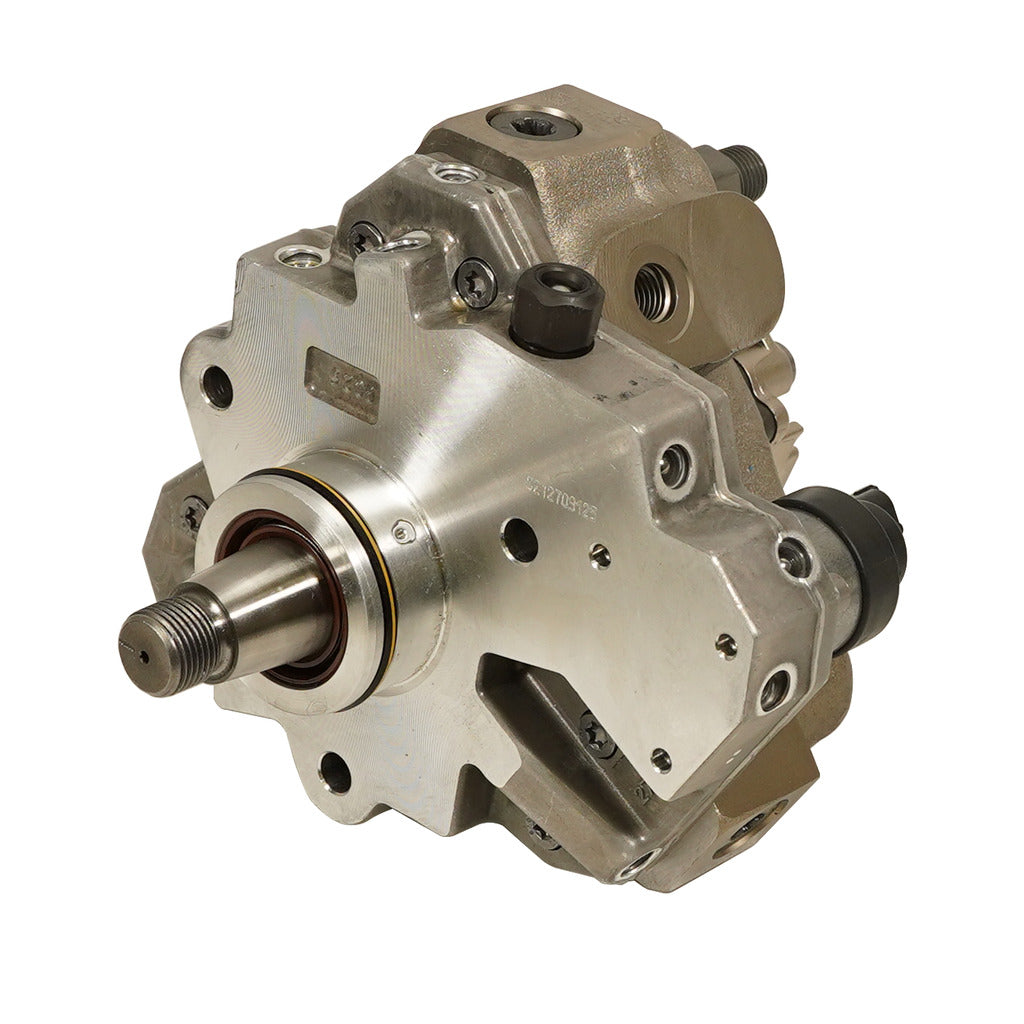

What Is a CP3 Pump (and Why It’s Loved)?

The Bosch CP3 is a mechanically driven, high-pressure common-rail pump used on many Cummins and Duramax platforms. Inside, a cam ring drives three pumping plungers in sequence, feeding a rail that the injectors draw from. A metering valve—often called the FCA/MPROP—controls how much fuel enters the pump’s high-pressure section so the ECU can target specific rail pressures.

• Strengths: Durable design, tolerant of power adders when supply is healthy, and widely supported with performance variants (10–12 mm “strokers”) and dual-pump kits.
• Dependencies: A steady low-pressure supply (lift pump), clean fuel (correct micron rating + water separation), and injectors in good health.

Common Symptoms of a Weak CP3 (or Starved Supply)

Before condemning the CP3, rule out upstream supply issues and injector return leaks. Typical symptoms include:

• Poor hot restarts / extended cranking and P0087 low rail pressure under load.
• Flat power at higher RPM, smoky tip-in from under-fueling then over-correction.
• Surging as the ECU hunts commanded vs actual rail pressure.
• Abnormal balance rates and elevated return flow suggest injector issues that mimic a weak pump.

First rule: Don’t skip the basics. Replace a restricted fuel filter, confirm zero air leaks on the suction side, verify lift-pump pressure/flow, and perform an injector return test. Many “bad CP3” diagnoses unwind here.

Diagnostics & Data: How to Prove a CP3 (and What to Log)

1. Scan tool setup: Log Commanded Rail Pressure vs Actual Rail Pressure, plus throttle position, engine speed, and fuel temperature. You’re looking for repeatable deltas under load (not just transient spikes).
2. Wide-open pull in a safe gear: Under a steady pull, actual rail should closely track commanded. A sustained lag as RPM climbs often points to supply or pump capacity.
3. Lift-pump pressure and volume: Confirm steady supply pressure at the CP3 inlet through the load range. Cavitation or a collapsing hose can mimic a failing pump.
4. Return-flow tests: Excessive injector return bleeds rail and “blames” the pump. Fix the leak first; re-test rail tracking.

Note: Exact spec targets vary by platform and calibration—always consult service info for your truck. Use data to guide parts decisions, not guesswork.

Lift Pumps & Filtration: The Foundation of CP3 Reliability

Many platforms either lacked a robust factory lift pump or rely on components that age poorly. The CP3 prefers a consistent, positive inlet pressure and clean, water-free fuel.

• Quality lift pump: Stabilizes supply pressure, reduces cavitation, and improves hot-start consistency.
• Micron rating that matches injectors: Pair a high-efficiency filter (typically single-digit micron) with a real water separator. Water + high pressure = expensive mistakes.
• Air leak chase: Any suction-side leak introduces aeration. Inspect quick-connects, filter heads, and hoses.
• Lubricity matters: Ultra-low sulfur fuel is dry; many owners choose a reputable additive for pump/injector life.

Shop BD: Lift pumps & filtration packages → /collections/shop?q=lift pump

Upgrade Paths: From Stock CP3 to Stroker & Dual-CP3

Match the pump to your real airflow and injector plan. Oversizing wastes money; undersizing forces rail to sag and raises smoke/EGT.

Power ranges are generalized; injector size, turbo efficiency, altitude, and tuning strategy all shift the fuel requirement. The goal is rail control, not just maximum number on a screenshot.

BD parts to explore: CP3 pumps & kits → /collections/shop?q=cp3 • CP3 accessories & hardware → /collections/shop?q=cp3 pump

CP4 → CP3 Conversions: Why People Do It

Some platforms shipped with CP4 pumps, which can fail in ways that contaminate the fuel system. Owners often convert to CP3 for durability and parts availability.

• Pros: Proven mechanical robustness, strong aftermarket support, wide tuning knowledge base.
• Considerations: Fitment varies by platform; follow kit guidance for lines, sensors, and calibration. Maintain compliance with local laws.

Shop BD: CP3 conversion options → /collections/shop?q=cp3 conversion

Tuning & Rail-Pressure Strategy (Keep It Smart)

More commanded rail isn’t always better. Your target should line up with injector flow, turbo airflow, and the pump’s safe capacity. Pushing rail beyond the system’s mechanical comfort zone creates heat and stress without net torque.

• Close the loop: Tune for rail that the pump can hold at your altitude and ambient temps; watch actual-minus-commanded deltas.
• Lift-pump headroom: If inlet pressure wobbles under load, stabilize it before raising rail targets.
• Smoke vs EGT: Excess duration to “make up” for low rail can balloon EGT and soot. Solve rail control first.

Longevity Playbook: Make a CP3 Last

1. Change filters on schedule (and sooner if restriction climbs). Keep a spare filter in the truck.
2. Use quality fuel and consider a reputable lubricity additive, especially in winter.
3. Drain water separators routinely; water kills pumps and injectors.
4. Fix suction-side air leaks immediately. Aeration mimics a dying pump.
5. Log rail pressure seasonally. Trend shifts help you catch problems early.

FAQs

How do I know if I need a stroker CP3?
If actual rail repeatedly trails commanded under a steady pull after you’ve verified lift-pump health and injectors aren’t returning excessively, you’re likely at the edge of pump capacity. Move to a 10–12 mm stroker matched to your injector/turbo combo.

Is dual-CP3 better than a big single?
It depends. Duals split the work and can offer cooler operation and redundancy. A big single is simpler and can be excellent up to its range. Choose based on space, budget, and power goals.

Do I need a lift pump with a stock CP3?
Many trucks benefit from one. Stable inlet pressure and better filtration/water separation improve hot starts, lower cavitation risk, and extend system life—stock or built.

CP4 to CP3 conversion—worth it?
For platforms with CP4-related concerns, the CP3’s track record and support make conversion attractive. Use a well-engineered kit and observe all emissions/inspection rules.

Always verify procedures and torque values in your platform’s service info. Observe local emissions laws. If you’re unsure, consult a qualified diesel technician.
