Dodge + Cummins Timeline: Engines, Transmissions & What Each Generation Needs

A practical, shop-floor history of the Dodge and Cummins partnership—what changed, what tends to fail, and the upgrades that make each generation tow cooler, shift cleaner, and last longer. Bookmark this as your quick reference when shopping parts or planning a build.

Quick Links: 1989–1993 (Gen1 12-valve, VE) • 1994–1998 (Gen2 12-valve, P-pump) • 1998.5–2002 (24-valve VP44) • 2003–2004.5 (5.9 CR, CP3) • 2004.5–2007 (5.9 CR late) • 2007.5–2012 (early 6.7) • 2013–2018 (6.7 w/ DEF, AS69RC) • 2019–2020 (5th-gen changes) • 2021–2024 (latest 6.7) • Build recipes • Axle ratios • FAQs

1989–1993: First-Gen 5.9L 12-Valve (VE-pump) • A518/A727

Why it matters: This is where Dodge and Cummins started the wave. Mechanical VE-pump 12V, simple wiring, legendary economy. Transmissions were the limiting factor.

Known weak points
  • Killer Dowel Pin (KDP): Timing case dowel can walk out—catastrophic if ignored.
  • VE lift supply & timing wear: Hot-start/fuel starvation complaints on tired pumps.
  • Automatic limits: A727/A518 low line pressure/heat when towing; weak lockup strategy (where applicable).
Good upgrades
  • KDP fix and front cover service during any major maintenance.
  • Exhaust brake + downpipe for real tow control; matched clutch if manual.
  • Trans cooling + deep pan for automatics; shift calibration improves life.

Browse Cummins parts: All Cummins · 5.9 Cummins

1994–1998: Second-Gen 5.9L 12-Valve (P7100 “P-pump”) • 47RH/47RE, NV4500

Why it matters: P-pump trucks respond beautifully to fueling/air mods. The engine will take more than the factory 47RH/47RE likes to see.

Known weak points
  • KDP remains a concern.
  • 47RH/47RE heat & clutch capacity: Towing and bigger tunes glaze the converter and slip the directs.
  • NV4500 5th gear nut: Back-off under heavy load/overspeed; clutch selection matters.
Good upgrades
  • Exhaust manifold (thicker ductile iron) and tow turbo to keep EGT in check.
  • Built 47RH/RE packages (valve body, converter, clutch count) and deep pan.
  • Lift pump & filters for clean, consistent fuel supply.

Shop: 5.9 upgrades · 5.9 manifolds

1998.5–2002: 24-Valve ISB (VP44) • 47RE/NV4500/NV5600

Why it matters: First 24-valve heads with electronically-controlled VP44. Great drivability when healthy; lift-pump pressure is life.

Known weak points
  • VP44 failures from low supply pressure/heat; stumbles, no-start.
  • 47RE longevity still the constraint for tow/tune trucks.
  • Exhaust manifold cracking as miles/heat add up.
Good upgrades
  • High-quality lift pump/filtration and pressure monitoring.
  • 47RE build (valve body & converter at minimum) or clutch for manuals.
  • Manifold & towing turbo to manage EGT with trailers.

Shop: 5.9 parts

2003–2004.5: 5.9L Common-Rail (CP3) • 48RE/NV5600

Why it matters: The beloved CP3 common-rail era begins. Smooth power, quiet idle, bigger injector/turbo options—if you feed it clean fuel and manage heat.

Known weak points
  • Injector return rate creep causing haze/hard starts.
  • 48RE clutch/converter slip with added torque; heat kills.
Good upgrades
  • Quality injectors (matched/set), rail pressure sanity, filtration.
  • 48RE build (valve body, clutch count, converter, deep pan).
  • Ductile manifold & tow-friendly turbo to hold EGT.

Shop: 5.9 CR parts

2004.5–2007: 5.9L CR (late) • 48RE/NV5600/G56

Why it matters: The last 5.9s—sought after for simplicity. Still, towing and power mods lean on the transmission and turbine side.

Known weak points
  • Manifold & turbo thermal fatigue with towing/tunes.
  • 48RE remains the bottleneck; G56 needs the right clutch for added torque.
Good upgrades
  • Exhaust manifold + matched turbo for cooler tow EGT.
  • Trans package or single/dual-disc clutch for manuals.
  • Monitor EGT/rail; fix small issues early.

Shop: 5.9 catalogs

2007.5–2012: Early 6.7L (VGT + DPF) • 68RFE/AS68RC/G56

Why it matters: VGT turbo and emissions arrive. Great low-rpm torque; 68RFE becomes the headline for reliability discussions.

Known weak points
  • 68RFE: cross-leaks in valve body, weak OD apply, accumulator blowout, cooler bypass issues.
  • VGT sticking from soot/heat and long idles.
  • Exhaust manifold warp/crack under sustained heat.
Good upgrades
  • 68RFE fixes: sleeved SSV bore, bonded separator plate, BD-style pressure control, deep pan, cooler bypass update.
  • Heavy ductile manifolds + correct hardware/stud kits.
  • Exhaust brake control (when appropriate) and smart regen habits.

Shop: 6.7 parts · 68RFE upgrades

2013–2018: 6.7L Update (DEF added) • 68RFE / Aisin AS69RC (HO) / G56

Why it matters: DEF reduces regen frequency; torque goes up, especially in HO/Aisin combos (3500, cab-chassis). Strong trucks that still benefit from airflow and converter upgrades.

Known weak points
  • 68RFE: same fundamentals—pressure and OD capacity.
  • AS69RC: robust geartrain; converter clutch capacity becomes the discussion at higher load.
  • VGT & manifold heat cycling with heavy tow routines.
Good upgrades
  • AS69RC converter with thicker cover & multi-disc clutch for better holding/low-slip tow manners.
  • High-silicon ductile manifolds with longer studs/spacers to retain clamp load.
  • Deep pans & added cooling for sustained GCWR operation.

Shop: Aisin AS69RC · Exhaust manifolds

2019–2020: 5th-Gen Ram Refinements

Why it matters: Chassis/cab updates, interior leap, higher factory torque. As power and weight rise, transmission strategy and cooling become even more critical for life.

Focus areas
  • Trans temps & lockup quality under tow—use pans, coolers, and clean calibration.
  • Airflow management (manifold integrity, healthy VGT) for safe EGT.

Shop: All 6.7 Cummins

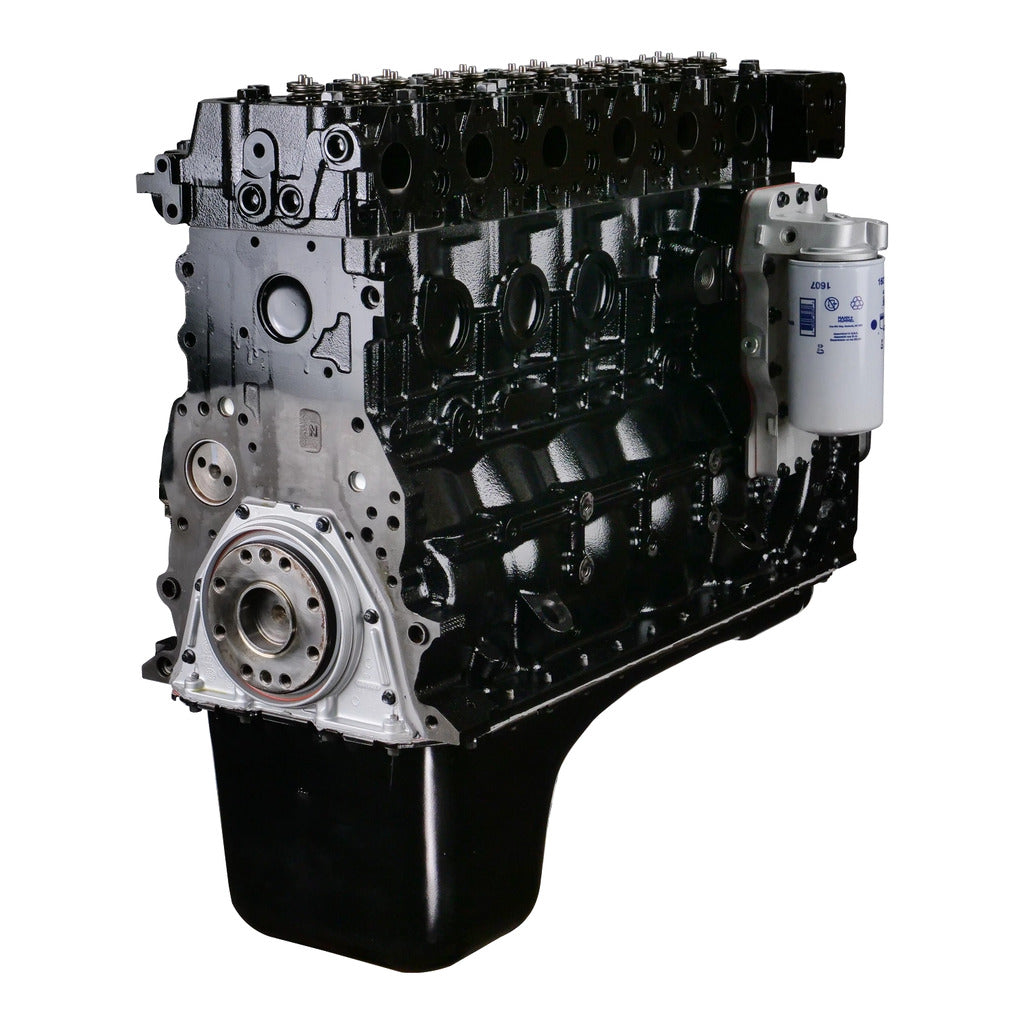

2021–2024: Latest 6.7L Cummins

Why it matters: The newest calibration and hardware mix with year-specific front covers and timing gear housings. For severe-duty users, service parts compatibility and long-block fundamentals matter.

What to prioritize
  • Year-specific components for any engine work (front cover/timing housing, sensors).
  • Transmission match to use-case (68RFE vs Aisin) and converter strategy for GCWR duties.
  • Airflow & heat management—healthy VGT, sealed manifold hardware, and smart warm-up/cool-down habits.

Shop: 6.7 parts

What Each Generation Really Needs (By Use-Case)

Tow / Work (Keep It Cool & Consistent)

  • Airflow: Thick-wall ductile iron manifolds and a tow-friendly turbo keep EGT down on grades.
  • Transmission: 47/48RE—valve body, converter, added clutch count, deep pan. 68RFE—sleeved SSV bore, bonded plate, pressure control. Aisin—multi-disc converter for clutch capacity.
  • Fuel system: Clean filters, quality injectors, monitored rail (CR trucks). VP44 era—protect lift pump pressure.
  • Braking: Exhaust brake where applicable for control and ATF temp reduction downhill.

OEM+ Daily (Drivability & Reliability)

  • Manifold refresh + new hardware/studs to stop leaks/ticks and restore spool.
  • Fresh converter or clutch matched to power level; deep pan for cooler, cleaner fluid.
  • Monitoring: EGT, trans temp, and (CR trucks) rail pressure/return rate.

Performance Street (Balanced, Not Brittle)

  • Turbo system: S300/S400-style upgrades on older trucks; matched VGT calibration on 6.7.
  • Transmission: Step up early—clutch count, billet apply parts, converter, and real pressure control.
  • Fuel: Matched injectors and pump strategy; don’t outrun the lift pump or filtration.
Shop by platform: All Parts for Cummins • 5.9 Cummins • 6.7 Cummins

Axle Ratios & Why They Matter

Factory 3.55/3.73/4.10 (plus 4.30 on some cab-chassis) dramatically change shift scheduling and converter behavior. More gear (numerically higher) lowers trans temp on grades and keeps the turbo happy; less gear picks up economy on flatland but can hurt drivability with heavy trailers. Match tire size to keep effective ratio reasonable.

High-Value Tune-Ups (All Years)

  • Sealed exhaust manifold hardware: Longer studs/spacers retain clamp load through heat cycles.
  • Trans service with a deep pan: Lower temps, easier maintenance, better magnet/filtration.
  • Fuel filters on time: CR injectors are precise—clean fuel is everything.
  • Healthy batteries/grounds: Modern ECUs and VGTs hate low voltage—cold starts and regen suffer.

Dodge + Cummins FAQ

Which years are “most reliable”? Every era can be excellent when maintained. 12-valves are simple; late 5.9 CR are easy to own; 6.7s tow the best when you stay ahead of heat and transmission pressure.

What kills these transmissions? Heat and low line pressure. Build for your trailer and terrain, use a deep pan, and fix leaks/cross-leaks in the valve body.

Best first upgrades? A sealed, thick-wall exhaust manifold; a deep transmission pan; and the right converter or clutch for your load.

Compliance Note: Keep emissions equipment intact and follow local regulations. Many modern upgrades are 50-state legal when installed as directed. Always verify fitment by year/engine/transmission before ordering.
