6.0 Power Stroke Exhaust Manifolds (2003–2007): Leak Fixes, Hardware, Install Guide

6.0 Power Stroke Exhaust Manifolds — 2003–2007 Fixes, Fitment & Install Tips

Stop the cold-start tick, seal up soot trails, and bring back crisp turbo response on your 6.0L. BD’s high-silicon ductile-iron castings, thicker flanges, and longer hardware are engineered to hold clamp load through towing heat cycles and regen-era temps.

Shop 6.0L Options
• 6.0L Power Stroke Manifold Set (2003–2007)
• Driver Side (2003–2007)
• Passenger Side (2003–2007)

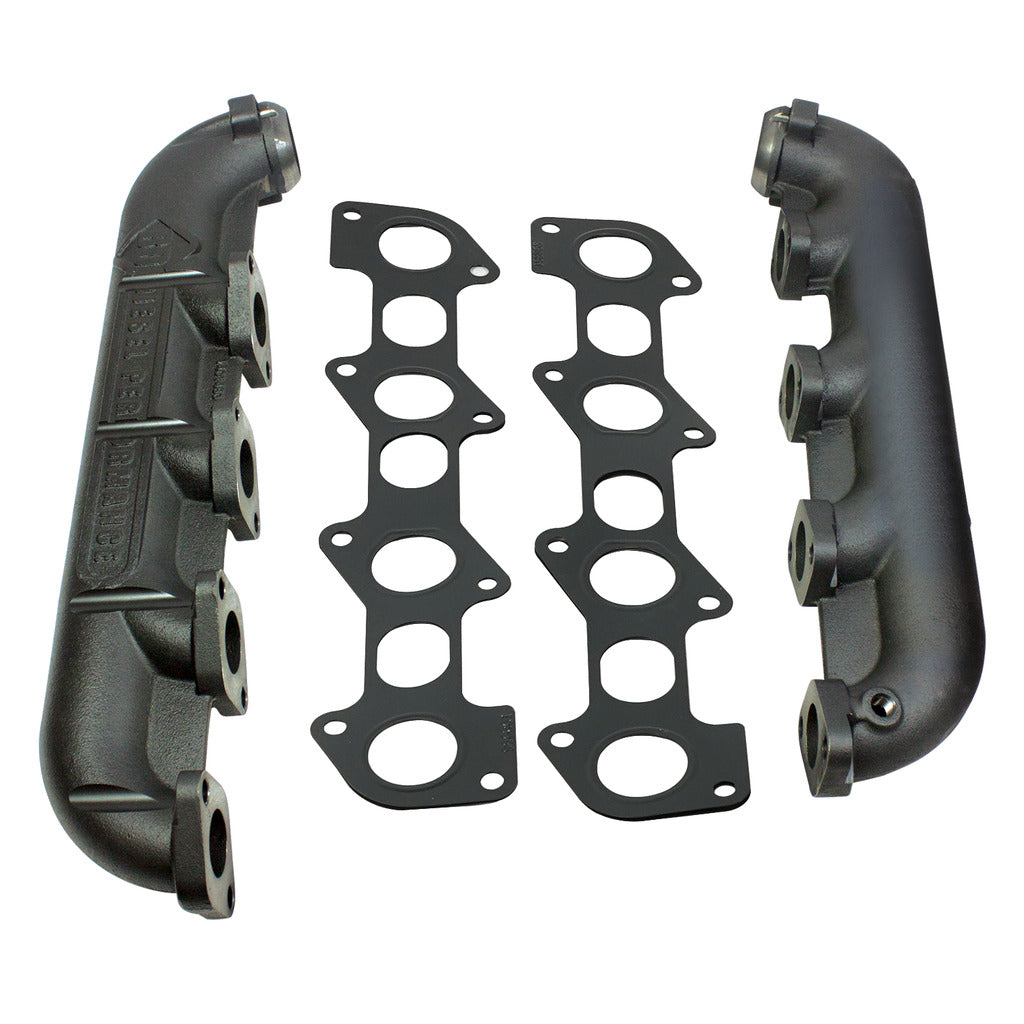

Quick Summary: Thick hi-silicon ductile-iron manifolds • Thicker machined flanges to resist bowing • Longer studs + spacers restore clamp load • Fresh gaskets included • Designed for repeated heat cycles and tow duty • Direct fit for 2003–2007 F-250/F-350/F-450/F-550 6.0L Super Duty.

Why The OEM 6.0L Manifolds Leak

  • Heat-Cycle Bowing: Thin flanges and castings distort after repeated heat soak, unloading the gasket and studs.
  • Short Hardware: Factory studs/bolts can lose clamping force as the manifold grows and shrinks.
  • Uneven Port Transitions: Mismatched ports promote soot tracking and slow turbo response under load.

What BD Changes: Materials, Hardware, and Sealing

  • High-Silicon Ductile Iron: Thick-wall castings resist cracking and warpage compared to thin OEM pieces.
  • Thicker, Machined Flanges: Stay flat through thermal expansion to maintain gasket compression.
  • Longer Studs + Spacers: Improved fastener stack-up keeps clamp load stable across heat cycles.
  • Gaskets Included: Fresh manifold and crossover/EGR port gaskets eliminate re-use risks.

Exact Fitment

  • Platforms: 2003–2007 Ford F-250, F-350, F-450, F-550 Super Duty with 6.0L Power Stroke.
  • Configurations: Complete left+right set, or individual driver/passenger sides for targeted service repairs.

What You’ll Feel After the Fix

  • Quiet Cold Starts: The “sewing-machine” tick and faint exhaust smell at idle disappear.
  • Cleaner Turbo Lighting: Sealed joints reduce drive-pressure losses for snappier spool.
  • No More Soot Trails: Proper clamp load and fresh gaskets stop black streaks at the flange.

Install Guide & Torque Strategy (Overview)

  1. Prep: Disconnect batteries. Soak fasteners in penetrant. Plan removal of shields, CAC/turbo piping, and harness brackets.
  2. Surface Check: Clean the cylinder-head sealing faces to bright metal. Test-fit the manifold with gaskets.
  3. Hardware Setup: Use the supplied longer studs and spacers. Light anti-seize on threads (unless otherwise specified by OE).
  4. Torque Pattern: Center-out in stages to OE spec. Re-torque after the first full heat cycle to catch any seating changes.
  5. Final Checks: Verify crossover/EGR tube seals, clearances, and no soot witness marks after a short road test.

Driver/Passenger Side vs Full Set: How to Choose

  • One-Bank Tick Only: If soot prints and noise live on one side, replace that side now; plan to match the pair later.
  • High Miles/Tow Duty: Do the complete set to reset both banks and avoid future repeat labor.

Diagnostic Tips Before You Tear Down

  • Cold-Start Tick: Listen close to each bank; a brief tick that fades with heat often points to flange leakage.
  • Soot Trails: Gray/black deposits near ports or at the crossover flange are classic clamp-load loss indicators.
  • Sluggish Spool: If boost builds late under tow, check upstream leaks before chasing turbo issues.

BD vs OEM Manifolds

Feature OEM BD 6.0L
Casting Thin gray iron Hi-silicon ductile iron (thick-wall)
Flange Prone to bowing Thicker, machined, stays flat
Hardware Short studs/bolts Longer studs + spacers (included)
Gaskets Re-use common New gaskets included

FAQs

Do I need special tools? Standard hand tools plus good penetrant, torque wrench, and patience for older hardware. Heat on stubborn fasteners helps.

Should I replace both sides? If mileage is high or you tow, replacing both sides prevents future repeat labor and keeps clamp load balanced.

Any tune required? No. These are direct-fit replacement manifolds that retain emissions equipment and factory routing.
