LB7 Injectors: Symptoms, Balance Rates, Return Tests & Reliable Replacements

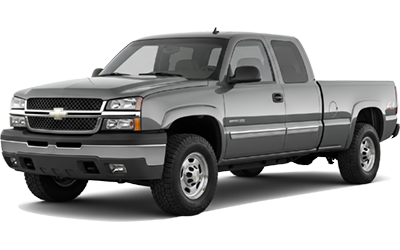

The 2001–2004.5 LB7 Duramax is proven, quiet, and efficient—but its early common-rail injectors are notorious for internal wear and leaks. This guide shows you how to confirm a bad injector without guesswork, how to test balance rates and return flow correctly, and which replacement parts and practices keep your LB7 healthy for the long haul.

Shop LB7 Injector Solutions: /collections/shop?q=lb7%20injectors

LB7 101: Why These Injectors Fail

• Ball-seat erosion & internal leakage: Wear in the nozzle/valve assembly increases return (leak-off) and reduces delivered fuel, causing idle haze, cylinder imbalance, and hard hot starts.
• Body cracking & tip issues: Thermal stress and contamination can lead to external seepage, white smoke, and fuel dilution of engine oil.
• Contamination & water: ULSD lubricity + water/particulate load punishes precision parts. Dirty or water-laden fuel accelerates failure.
• Supply-side weakness: The LB7 lacks a factory frame lift pump; a tired filter head or aerated feed worsens hot-start and balance issues and can shorten injector and CP3 life.

Classic LB7 Injector Symptoms (What You’ll See/Smell/Feel)

• Haze at idle (warm): Light white/gray exhaust that clears with RPM/load.
• Rising oil level / diesel smell in oil: Fuel dilution from injector body/nozzle leakage.
• Hard hot restart / extended crank: Excess return flow reduces rail pressure during crank.
• Rough/rolling idle, especially in gear: ECM struggles to balance cylinder fueling.
• Balance rates out of range: One or more cylinders require large positive/negative corrections to stabilize idle.
• Black smoke on tip-in, lazy response: Poor atomization and cylinder-to-cylinder imbalance.
• Fuel smell under hood / wetness: External injector leak or return line/seal issue.

Balance Rates 101: Reading the Numbers (The Right Way)

Balance rates are the ECM’s per-cylinder correction (mm³/stroke) to keep the engine idling smoothly. They are a powerful screening tool when performed correctly:

• Warm the engine fully (coolant & oil at operating temp). Turn off A/C and high loads.
• Read at hot idle in Park/Neutral, then again in Drive with brakes held (for automatics) to see how they shift under load. Numbers typically swing a bit under load.
• Typical pass range (screening): Many healthy LB7s live around ±2.0 mm³/st at warm idle; values approaching ±4.0 mm³/st or a single cylinder that’s markedly different from the group suggest investigation. Always compare to your service manual and tool-specific guidance.
• Interpretation: Positive correction usually means the ECM is adding fuel (cylinder under-delivering). Negative means the ECM is pulling fuel (cylinder over-delivering).

Return-Flow (Leak-Off) Testing: Confirming a Leaker

Return testing measures how much fuel an injector sends back on the return side instead of into the cylinder. Excess return equals low effective fueling and hard starts.

1. Warm the engine to operating temperature.
2. Follow a service-manual method (or a reputable return-test kit’s procedure) to isolate individual injector return flow. LB7s route return under the valve covers; use the appropriate fittings/lines.
3. Measure and compare return volume over a fixed time at idle. Look for outliers (one cylinder high) or an excessive total beyond the manual’s specification.
4. Retest hot soak/hot restart if your symptom is a hot-start issue—marginal injectors often show their worst behavior then.

We’re intentionally not posting hard numeric limits—always follow the factory procedure/spec or the test kit’s documentation.

When to Replace (and What to Replace With)

If balance rates and return testing point to one or more bad injectors, the most reliable path on LB7 is typically replacing all 8—they tend to age together, and labor overlaps heavily. At minimum, replace injectors on the offending bank with careful system cleaning.

Install Notes That Save Comebacks

• Cleanliness is everything: Cap lines immediately; flush rails per procedure; keep rags and lint out of the system.
• Follow OE torque & sequence: Injector hold-downs, lines, return banjos—use factory values and patterns.
• Do not reuse crush seals on high-pressure or return connections.
• Prime the system properly: Service the filter head seals if you lose prime. Cycle the hand primer until firm and key-cycle per manual.
• No coding on LB7: Unlike later generations, LB7 injectors don’t require injector ID programming. The ECM will adapt balance rates over time.
• Change the oil after injector replacement if there’s any sign of fuel dilution.

After the Job: Verifying Your Fix

• Hot idle balance rates: Numbers should tighten up after a short relearn. Expect minor drift until the ECM finishes adapting.
• Hot restart test: Crank duration should be short and rail pressure should track commanded quickly.
• Road test under load: Watch rail pressure vs. commanded and smoke/EGT behavior on grades.
• Leak check: Re-inspect for seepage after the first heat cycle and again at 200–300 miles.

Longevity Playbook: Keep Your New Injectors Happy

• Fuel quality & filtration: Stick with known stations; change filters on schedule; drain water separators before winter hard freezes.
• Water control: Water kills common-rail parts—use additives that improve lubricity and demulsify when appropriate.
• Supply-side health: A solid lift supply (whether a refreshed filter head or an auxiliary lift pump with filtration) helps the CP3 and injectors live longer.
• Reasonable tuning: Don’t outrun rail pressure or timing; excessive cylinder pressure and heat accelerate wear.
• Monitor: Keep an eye on balance rates every oil change; trending early warnings is cheaper than another set of injectors.

FAQ: LB7 Injectors

Do I have to replace all 8? Not strictly—but most high-mileage LB7s benefit from a full set once multiple cylinders drift. Labor overlap and reliability usually justify doing them together.

Can balance rates alone condemn an injector? They’re a great screen, but confirm with a return test and basic mechanical checks (compression if one hole is way off).

Should I replace the high-pressure lines? Yes—old lines can shed debris and cause repeat injector issues. New lines are cheap insurance.

What about the injector cups? If you see coolant in fuel, fuel in coolant, or persistent aeration, inspect and reseal cups per the service manual.

Warranty? Check the specific injector product page for coverage and terms; keep proof of clean installation practices and filtration service.
