5.9L Cummins Common-Rail (2003–2004) Exhaust Manifolds — Seal It, Pulse It, Tow Better

Early CR 5.9s make effortless torque—but thin factory manifolds don’t love years of heat cycles, towing, and heavier turbos. If you’re chasing a cold-start tick, soot trails at the ports, or sluggish spool, this guide shows why it happens and how BD’s high-silicon ductile iron pulse manifolds solve the problem for the long haul.

Shop 5.9L CR (2003–2004) Manifolds
• Collection: BD 5.9L 24-Valve Common-Rail ’03–’04
Quick Summary: OEM 5.9 CR manifolds warp and crack from repeated hot-soak, turbo weight, and vibration. BD’s thick hi-silicon ductile iron, two-piece pulse design with a slip joint controls expansion and keeps the gasket sealed. You’ll gain quieter starts, sharper spool, and fewer re-torques—especially on tow rigs.

Why the OEM 5.9 CR (’03–’04) Manifold Fails

  • Heat-Cycle Bowing: Long, thin flanges lose clamp load as they distort. Gaskets stop sealing; soot appears.
  • Turbo Leverage: The charger hangs off the manifold. Weight + vibration → runner fatigue and collector cracks.
  • Pulse Loss: Leaks ahead of the turbine bleed drive pressure, softening spool and raising EGT under load.

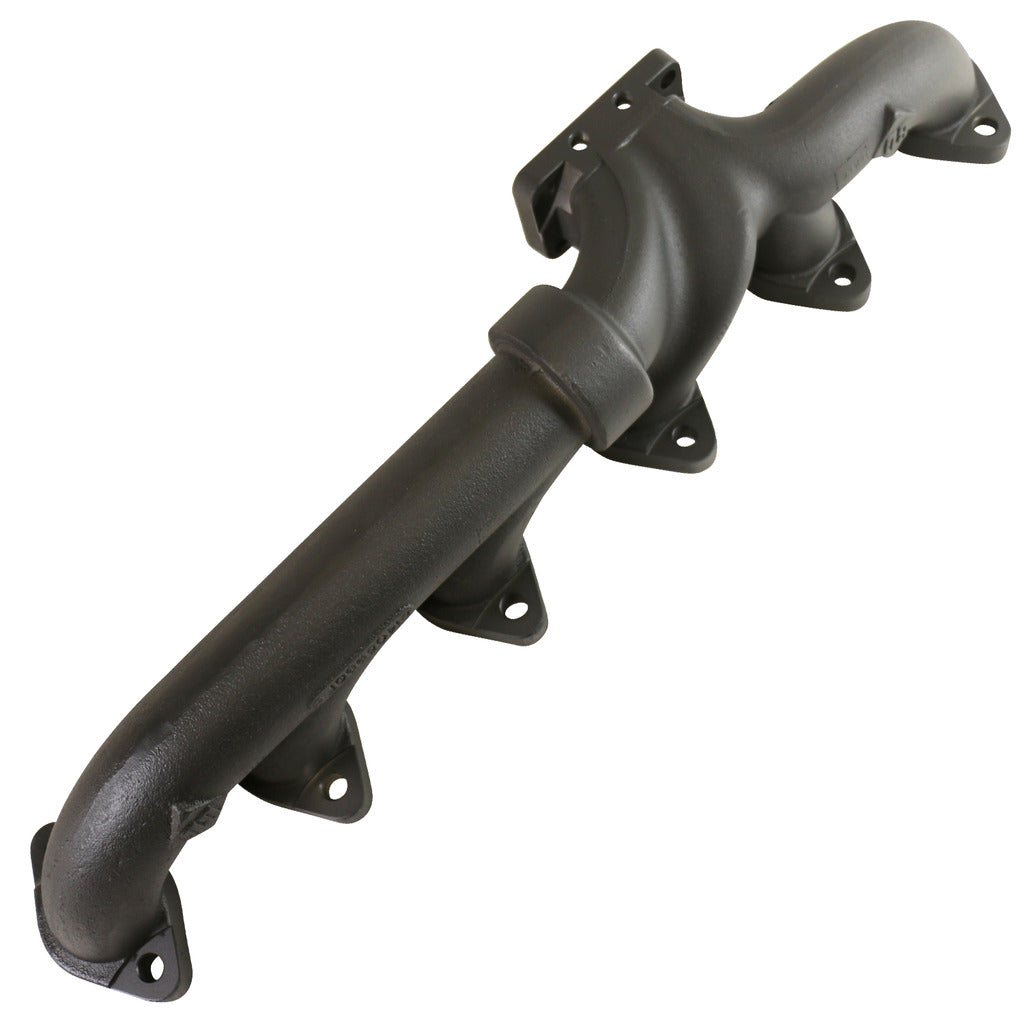

How BD’s Pulse Manifold Fixes It

  • Hi-Silicon Ductile Iron: A tougher, thicker casting that resists cracking and holds its shape after heat cycles.
  • Two-Piece with Slip Joint: Built-in expansion control maintains clamp load and gasket crush over time.
  • Thicker, Machined Flanges: Flat mating faces = reliable seal and less chasing of fastener torque.
  • Pulse-Flow Dividers: Preserves pulse energy for the turbine—cleaner spool and steadier boost while towing.
  • Pyro-Ready Ports: Pre-drilled 1/8" NPT (where applicable) for easy EGT probe installation.
  • Complete Hardware: Fresh studs/spacers/bolts and gaskets simplify the job and future service.

Fitment Notes: 2003–2004 5.9L CR (24-Valve)

  • Turbo Footprint: Stock chargers use a divided T3 pattern. If you’re planning an S300/S400 later, pick the manifold flange to match your path.
  • Orientation & Stress: Support the turbo and downpipe during install. Avoid side-loading the manifold before torqueing.
  • Sensors: Now’s the time to add an EGT probe for safe towing and tuning.

What You’ll Notice After the Upgrade

  • No More Cold-Start Tick: Flat flanges + proper crush = quiet, sealed ports.
  • Quicker Spool: Pulse energy stays intact—better response merging, passing, and on grades.
  • Less Maintenance: Slip-joint design keeps hardware tensioned; re-torque intervals stretch out.

Install & Re-Torque Playbook

  1. Penetrant & Prep: Soak fasteners in advance. Support turbo/downpipe to remove strain while loosening.
  2. Remove Manifold: On rusty trucks, many techs pull turbo+manifold together, then separate on the bench.
  3. Clean Surfaces: Bring the head face to smooth, clean metal. Check with a straightedge; avoid gouges.
  4. Assemble Loosely: Verify the slip joint moves freely. Follow any orientation marks in the kit.
  5. Fresh Gaskets & Hardware: Install per instructions. Torque center-out in stages to the spec supplied with the kit.
  6. Pyro Install: Use anti-seize, set probe depth correctly (do not bottom in the stream).
  7. Heat-Cycle & Re-Check: After the first loaded drive and cool-down, re-check torque where recommended.

BD vs. Stock — 5.9L CR (2003–2004)

Feature OEM Manifold BD Pulse Manifold
Casting Thin gray iron Thick hi-silicon ductile iron
Design One-piece Two-piece with slip joint
Flange Prone to bowing Thicker, fully machined
Pulse Energy Average Higher pulses → faster spool
EGT Port Usually add later Pre-drilled 1/8" NPT (where applicable)
Hardware Often re-used New studs/spacers/bolts + gaskets

Diagnostic Checks Before You Swap

  • Soot at Ports/Flange: Black tracking = clamp-load loss.
  • Audible Tick on Cold Start: Fades as parts grow—classic upstream leak.
  • Lazy Spool: Verify no pre-turbo leaks before blaming the charger.

Build Paths: Stock, Towing, Mild Power

OEM+
  • BD pulse manifold (T3), new gaskets & hardware, EGT port plug or probe.
  • Inspect charge boots/clamps; leaks here mimic turbo issues.
Towing
  • BD pulse manifold + EGT monitoring; ensure downpipe alignment is stress-free.
  • Consider a future-proof manifold if planning a turbo later.
Mild Performance
  • Choose manifold flange to match S300/S400 plans. Reinforce mounts to reduce overhang stress.
  • Drive-pressure and EGT gauges recommended if fueling is bumped.

FAQs

Do I need tuning? No—manifold upgrades are bolt-on airflow/thermal reliability parts that play well with stock fueling.

Will it help a stock turbo? Yes. Preserving pulse energy and eliminating pre-turbo leaks improves response and lowers EGT.

Compliance? This is a replacement manifold. Follow local regulations; use the pyro port for monitoring, not emissions removal.
