6.4 Power Stroke Exhaust Manifolds (2008–2010): Why They Leak—and the BD Fix

The 6.4L’s heat cycles and packaging are brutal on factory manifolds: thin flanges bow, studs relax, and soot tracks appear. BD’s high-silicon ductile-iron castings with thicker machined flanges and longer hardware restore clamp load for a quiet, sealed-up truck that lights the twins cleanly under load.

Why 6.4 Factory Manifolds Fail

• High Thermal Stress: Regen-era temps and towing heat soak distort thin OEM flanges—gaskets lose compression and leak.
• Short Hardware: Limited fastener stretch can’t keep up with manifold growth and contraction through cycles.
• Uneven Sealing Surfaces: Minor flange bowing becomes soot tracks, cold-start tick, and delayed turbo spool.

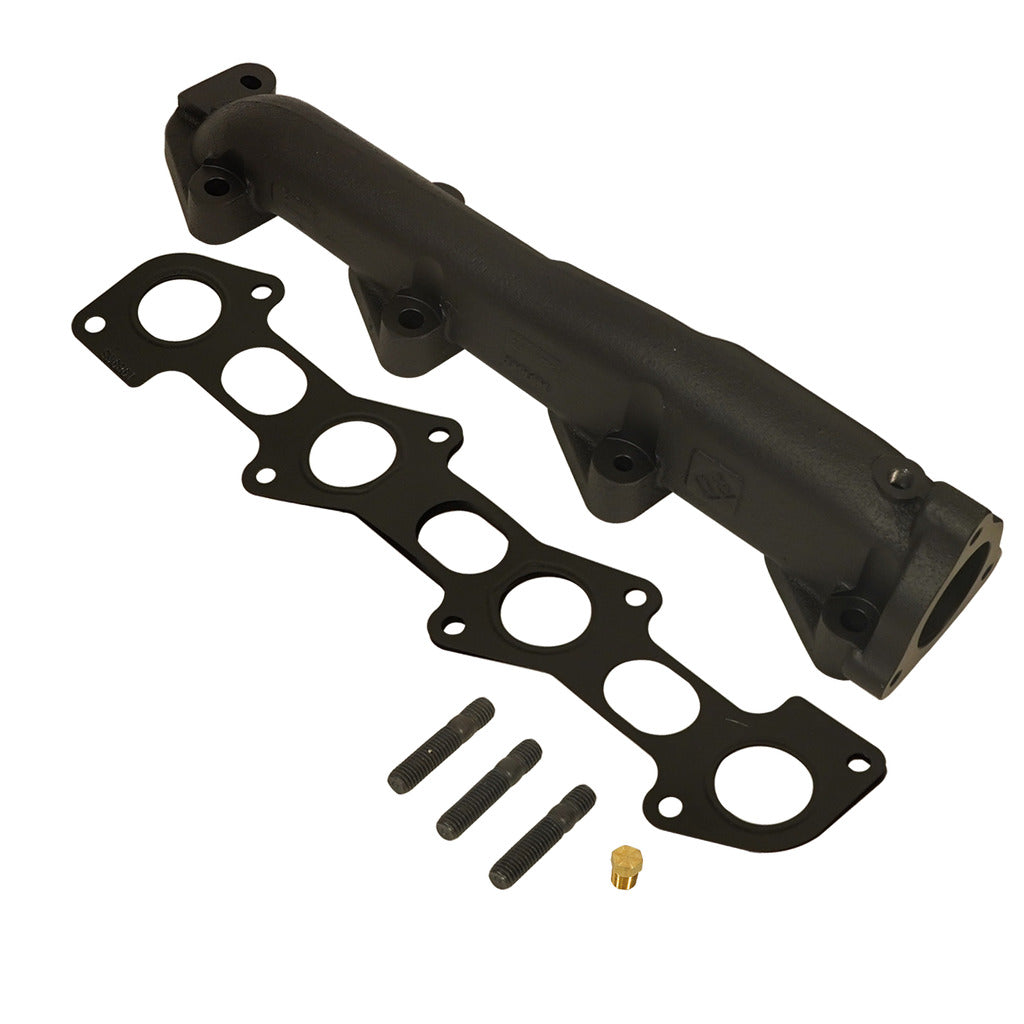

BD’s Engineering Changes That Solve It

• High-Silicon Ductile Iron: Thick-wall casting resists cracking and warpage—built for repeated thermal cycles.
• Thicker, Machined Flanges: Stay flat at temperature, keeping gasket compression where it belongs.
• Longer Studs + Spacers: Improved fastener stack-up holds clamp load across expansion/contraction.
• Gaskets Included: Fresh manifold and crossover/EGR port gaskets remove the risk of reusing tired seals.
• High-Temp Finish: Coated for corrosion resistance and cleaner underhood appearance.

Fitment

• Years/Platforms: 2008–2010 Ford Super Duty 6.4L Power Stroke (F-250, F-350, F-450, F-550).
• Configurations: Complete set or individual driver/passenger sides for targeted repair.

What You’ll Notice After the Upgrade

• Quiet Cold Starts: Tick and exhaust odor at idle are gone.
• Cleaner Turbo Lighting: Sealed joints reduce drive-pressure losses; response improves under tow.
• No More Soot Trails: Correct clamp load and fresh gaskets stop leakage at the flange.

Install Overview & Best Practices

1. Prep: Disconnect batteries; soak fasteners. Plan heat shield, up-pipe/crossover access, and EGR tube clearances.
2. Surface Work: Clean cylinder-head faces to bright metal. Lay in new gaskets; dry fit manifolds.
3. Hardware Setup: Use BD’s longer studs and spacers. Light anti-seize on threads unless OE procedure says otherwise.
4. Torque Pattern: Center-out in stages to OE spec. Re-torque after the first full heat cycle to capture seating.
5. Final Checks: Inspect crossover/EGR joints, verify no contact with shields/lines, road test, then re-inspect for soot witness marks.

Replace One Side or the Full Set?

• Single-Bank Noise/Leak: If only one bank shows soot and tick, you can service that side now.
• High Miles or Tow Duty: Do the full set once—saves repeat labor and balances clamp load side-to-side.

Diagnostic Checklist (Before You Wrench)

• Cold-Start Tick: Localize with a stethoscope; tick that fades warm is classic flange leak behavior.
• Soot Witness Marks: Look for gray/black deposits around ports or crossover flange.
• Lazy Spool Under Load: Upstream leaks reduce drive pressure—fix leaks before blaming turbos.

BD vs OEM Manifolds

FAQs

Do I need to tune after manifolds? No—these are direct-fit replacements that retain emissions equipment and factory routing.

Is re-torque really necessary? It’s the best way to ensure long-term sealing after the first heat cycle seats gaskets/hardware.

CARB/EO status? Check the product page for current EO details if applicable to your region and use case.
