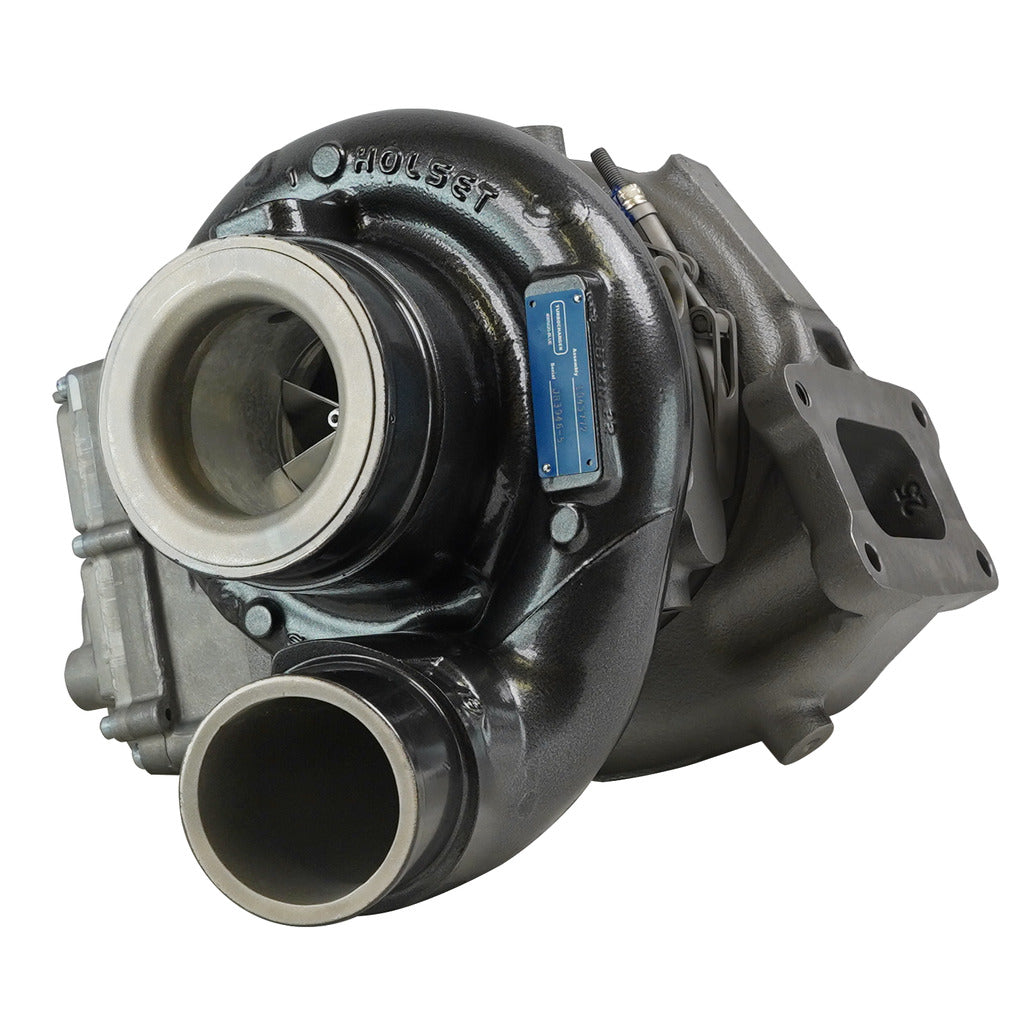

Turbocharger Health Checklist: 12 Tests Before You Replace a Turbo
Turbocharger Health Checklist: 12 Tests Before You Replace a Turbo
“Bad turbo” is an easy diagnosis—and an expensive mistake. Many boost, smoke, spool, and noise complaints come from leaks, control issues, sensors, restrictions, or oiling problems. Run these tests in order so you can prove the cause before you buy parts.
Quick Summary: Seal the charge-air system first, verify control (wastegate/VGT), confirm oil supply and drainback,
then inspect the turbo physically. Most false alarms are boost leaks and control problems.
Jump to: 12 tests • Decision tree • FAQs
The 12 Tests (Do Them In This Order)
1
Scan codes + freeze frame
Record commanded vs actual boost, actuator/vane position (if VGT), MAF/MAP, IAT, EGT/DPF data.
Record commanded vs actual boost, actuator/vane position (if VGT), MAF/MAP, IAT, EGT/DPF data.
2
Smoke test the charge-air system
Find leaks at boots, clamps, intercooler end tanks, resonators. Fix leaks before condemning the turbo.
Find leaks at boots, clamps, intercooler end tanks, resonators. Fix leaks before condemning the turbo.
3
Check intake restriction
Filter, inlet hose collapse, snorkel blockage—restriction mimics “lazy turbo.”
Filter, inlet hose collapse, snorkel blockage—restriction mimics “lazy turbo.”
4
MAP/MAF sanity check
KOEO MAP near atmospheric; compare to a known-good gauge if readings look off.
KOEO MAP near atmospheric; compare to a known-good gauge if readings look off.
5
Exhaust leak upstream of turbo
Soot tracks/tick at manifold or up-pipes steals energy and delays spool.
Soot tracks/tick at manifold or up-pipes steals energy and delays spool.
6
Aftertreatment restriction (if equipped)
DPF/catalyst backpressure changes turbo behavior; review diff pressure/regens.
DPF/catalyst backpressure changes turbo behavior; review diff pressure/regens.
7
Actuator test (wastegate/VGT)
Command movement. Wastegate should hold pressure/vacuum; VGT should track smoothly without sticking.
Command movement. Wastegate should hold pressure/vacuum; VGT should track smoothly without sticking.
8
Log commanded vs actual under load
High commanded + low actual = leak/control/efficiency/restriction. Low commanded = limits/strategy/sensor.
High commanded + low actual = leak/control/efficiency/restriction. Low commanded = limits/strategy/sensor.
| Log Pattern | Most Likely Causes |
|---|---|
| High commanded, low actual | Boost leak • exhaust leak pre-turbo • wastegate stuck open • VGT stuck open • worn turbo • restriction |
| Low commanded, low actual | Sensor data drift • torque/fueling limit • protection mode • strategy/calibration |
| Boost spikes then drops | Control instability • leak opening under pressure • actuator/vane issue |
9
Oil supply health
Correct viscosity, correct level, clean oil, no restricted feed line, no fuel dilution.
Correct viscosity, correct level, clean oil, no restricted feed line, no fuel dilution.
10
Oil drainback / crankcase pressure
Kinked drain, poor slope, CCV restriction or blow-by can push oil past seals.
Kinked drain, poor slope, CCV restriction or blow-by can push oil past seals.
11
Physical turbo inspection
Check wheel condition, housing rub, axial play, metal glitter—contact/rub is a replacement signal.
Check wheel condition, housing rub, axial play, metal glitter—contact/rub is a replacement signal.
12
Intercooler contamination
Heavy oil pooling means a drain/CCV/seal issue. Clean the system so symptoms don’t “carry over” after repairs.
Heavy oil pooling means a drain/CCV/seal issue. Clean the system so symptoms don’t “carry over” after repairs.
Decision Tree
- Replace the turbo if you have blade contact, severe axial play, damaged wheels, or proven seal failure with a confirmed good drain path.
- Fix other causes first if you find boost leaks, exhaust leaks pre-turbo, sensor drift, actuator control faults, or DPF restrictions.
FAQs
Is some shaft play normal?
Minor radial play can be normal dry; blade contact and heavy axial play are not.
Why does it smoke after a new turbo?
Old oil in the intercooler/charge pipes can take time to burn off—clean the system during repair.
Note: Follow OEM safety practices. If the engine is ingesting oil or the turbo is shedding metal, stop operation and diagnose immediately.
