5.9L Cummins 24-Valve (1998.5–2002) Exhaust Manifolds — VP44 Era Reliability & Flow

The VP44 24-valve Cummins (’98.5–’02) is a towing workhorse—but factory exhaust manifolds are notorious for heat-cycle warpage, gasket leaks, and runner cracks, especially on tuned trucks or with larger-than-stock chargers. This guide explains why it happens, how BD’s high-silicon ductile iron pulse manifolds solve it, and the installation best practices that keep your flange flat, your gaskets sealed, and your turbo spooling clean.

Why the OEM 24-Valve Manifold Leaks, Warps & Cracks

• Heat-Cycle Distortion: Tow-grade EGT and repeated hot-soak/cool-down cycles bow thin flanges. As clamp load drops, gaskets lose crush and exhaust tracks appear.
• Turbo Overhang: The turbo hangs off the manifold; vibration and leverage fatigue the runners and collector—worse with upgraded or heavier chargers.
• Pulses Lost to Leaks: Even small upstream leaks bleed drive pressure and pulse energy, softening spool, raising EGT under load, and masking the real problem.

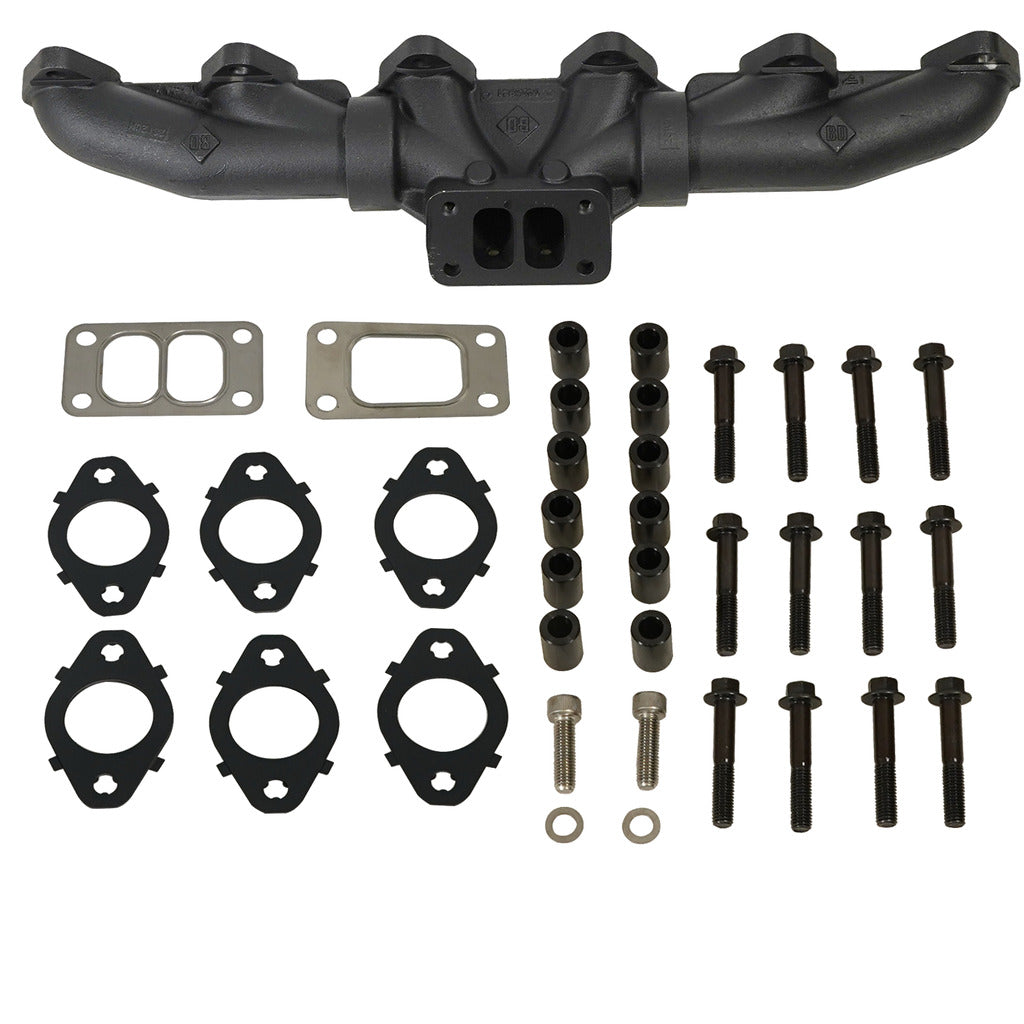

BD’s Pulse-Manifold Solution for the VP44 Era

• Hi-Silicon Ductile Iron: Thicker, tougher casting resists cracking and maintains sealing faces after heat cycling.
• Two-Piece with Slip Joint: Designed expansion/contraction keeps hardware tensioned and gaskets sealed, not “chased” every season.
• Fully Machined, Thicker Flanges: Flat, robust mating surfaces maintain gasket crush and minimize re-torque needs.
• Pulse-Flow Architecture: Divided runners deliver higher-energy pulses to the turbine for faster lighting and steadier boost while towing.
• Pyrometer-Ready: Pre-drilled 1/8" NPT ports (where applicable) for straightforward EGT probe install and monitoring.
• Complete Hardware: Kits typically include new studs/spacers/bolts and fresh gaskets for a one-and-done install.

Fitment Notes: 1998.5–2002 5.9L 24-Valve (VP44)

• Footprint: Most trucks use a T3 divided turbine housing. If you’re moving to a larger charger (S300/S362/S363 or beyond), choose the flange that matches your turbo plan.
• Turbo Orientation: Clock the charger and downpipe for stress-free alignment; avoid side-loading the manifold during tightening.
• Accessories: Consider fresh manifold gaskets, turbo mounting hardware, and an EGT probe kit while you’re in there.

Real-World Gains You Can Feel

• Quiet, Sealed Cold Starts: The “tick” and soot shadows from leaky gaskets disappear when flanges stay flat.
• Cleaner Spool: Preserved pulse energy feeds the turbine; throttle response improves under tow and on grades.
• Lower Maintenance: Slip-joint expansion plus longer hardware = fewer re-torques and less time chasing leaks.

Installation Overview & Pro Tips

1. Pre-Soak & Support: Penetrant on fasteners days ahead helps. Support the turbo/downpipe to remove side-load while breaking fasteners loose.
2. Remove as a Unit (Optional): On rusty trucks, some techs pull turbo + manifold together and split them on the bench. Cap oil/coolant lines if you do.
3. Surface Prep: Bring the head face to clean, smooth metal (plastic scraper/Scotch-Brite style pads). Avoid gouges. Check with a straightedge.
4. Slip Joint Check: Assemble the two-piece manifold loosely and verify the slip joint moves freely. Follow any alignment marks/arrows in the instructions.
5. Fresh Gaskets & Hardware: Position gaskets, install supplied studs/spacers/bolts, and torque in a center-out pattern in stages to the spec provided with the kit.
6. Pyro Probe: If monitoring EGT, install the 1/8" NPT probe with anti-seize to the recommended depth—do not bottom it in the flow path.
7. Heat-Cycle & Re-Check: After the first full hot-cold cycle under load, re-check torque where recommended. This simple step pays dividends.

BD vs. Stock (1998.5–2002 24-Valve)

Diagnostic Playbook: Confirm the Leak Before You Swap

• Soot Trails: Black tracking at port edges or the turbine flange signals clamp-load loss.
• Tick on Cold Start: Noise fades as parts grow—it’s the classic upstream leak signature.
• Sluggish Spool: Don’t blame the turbo first; upstream leaks bleed the drive pressure it needs.

Build Paths: Stock, Towing, & Mild Performance

FAQs

Do I need tuning after a manifold swap? No. A quality manifold is a bolt-on airflow/thermal reliability part and plays nicely with stock fueling.

Will it help stock turbos? Yes. Preserving pulse energy and eliminating upstream leaks improves response across the board.

Legal/compliance? This is a replacement exhaust manifold for pre-emissions-era trucks. Always follow local laws and use provided ports for monitoring—not emissions deletion.
