6.7L Cummins Exhaust Manifolds (2007.5–2024) — Seal It, Keep the Pulse, Tow Cooler

The 6.7 Cummins works hard—and the factory one-piece manifold shows it: bowed flanges, soot tracks, and lazy spool after years of heat cycles and regeneration events. This guide explains the failure pattern, how BD’s pulse-flow manifolds fix it, and the best-practice install so the seal lasts.

Shop 6.7L Cummins Manifolds (2007.5–2024)
• Collection: BD 6.7L Cummins Manifolds
Quick Summary: Thin, one-piece castings bow and leak under thermal stress, bleeding turbine energy. BD’s thick hi-silicon ductile iron, fully divided pulse manifold with a precision slip joint controls expansion, maintains clamp load, and preserves pulse energy—translating to quicker spool, more stable EGT, and fewer re-torques.

Why 6.7 Manifolds Warp, Crack & Leak

  • Thermal Bowing: Long, thin flanges lose flatness after repeated high-temp cycles (tow duty, regen), unloading gaskets and studs.
  • Pre-Turbine Leaks = Lost Drive: Any leak ahead of the turbine cuts the energy that spools the VGT, hurting low-rpm torque and raising EGT on grades.
  • Mass & Vibration: Turbo/downpipe weight and vibration stress the collector and hardware over time.

How BD’s Pulse Manifold Solves It

  • Hi-Silicon Ductile Iron: Thick-wall casting resists cracking and stays flatter through heat soak.
  • Two-Piece with Slip Joint: Controlled expansion/contraction keeps gasket crush so clamps hold.
  • Fully Divided Pulse Design: Separates pulses for stronger turbine drive and snappier response.
  • Machined, Thicker Flanges: True mating faces improve long-term sealing.
  • Pyro-Ready: Pre-drilled 1/8" NPT ports (where applicable) simplify EGT probe install.

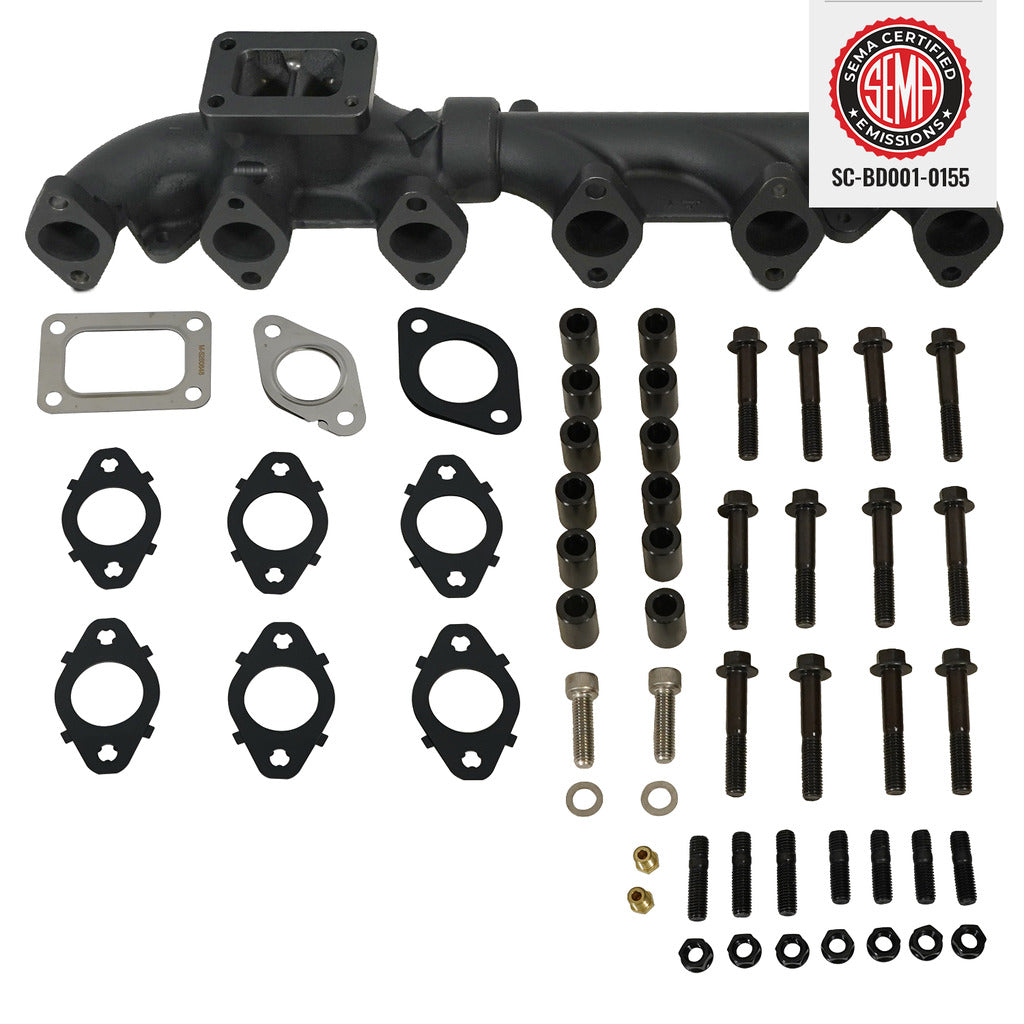

  • Complete Hardware: Grade 10.9 fasteners, spacers, and gaskets included for a clean swap.
  • Compliance: EGR-compatible castings; select kits carry published SEMA/CARB identifiers in the product listing.

Fitment Notes (2007.5–2024)

  • Platforms: Ram 2500/3500 pickup; many parts also serve 3500/4500/5500 cab-chassis—verify by VIN/application on the product page.
  • Turbo Interface: Works with factory VGT footprints for the listed years; if planning S300/S400, choose the appropriate flange variant.
  • Sensors & EGR: Ports/gaskets provided per kit—confirm your year-specific EGR porting and hardware before ordering.

What Improves After the Upgrade

  • Quieter Cold Starts: Ticking at the head flange goes away as the joint and flanges stay sealed.
  • Faster Spool: Preserved pulse energy helps the VGT respond sooner in town and on-ramp merges.
  • Towing Confidence: Lower, more stable EGT on long grades from intact pre-turbine sealing.

6.7L Cummins Manifold — Stock vs. BD

Feature OEM BD Pulse Manifold
Casting Thin gray iron Thick hi-silicon ductile iron
Construction One-piece Two-piece with slip joint
Pulse Energy Average Fully divided runners
Flange Stability Prone to bowing Machined, thicker flanges
EGT Provision Varies / often add Pre-drilled 1/8" NPT (where applicable)
Kit Hardware Re-use common New studs/spacers/bolts + gaskets

Install & Re-Torque Playbook

  1. Prep: Penetrant on fasteners well ahead. Disconnect batteries. Support turbo/downpipe to remove side-load.
  2. Remove: On rusty trucks, pull turbo+manifold together and separate on the bench. Keep hardware organized by location.
  3. Surface Work: Clean the head face to bright metal; verify with a straightedge. Do not gouge sealing lands.
  4. Dry Fit: Confirm slip-joint freedom, alignment, and that all studs thread cleanly.
  5. Gaskets & Hardware: Install new gaskets and the supplied studs/spacers/bolts. Torque center-out in stages to the spec in your kit.
  6. EGT Probe: Anti-seize threads, correct insertion depth; route leads away from heat/sharp edges.
  7. Heat-Cycle Check: After first loaded drive and full cool-down, re-check torque if your instructions call for it.

Before You Swap: Quick Diagnostics

  • Soot at Ports/Collector: Visual leak evidence and ticking cold that fades warm = classic flange bow.
  • Lazy Boost/High EGT: Fix pre-turbo leaks first; then smoke-test charge pipes to rule out downstream leaks.
  • Stud Trouble: If a stud snaps, take your time—heat/cool cycles and a proper extractor reduce risk to the head.

Recommended Build Paths (6.7)

OEM+
  • BD pulse manifold with included hardware and gaskets; consider adding an EGT probe for towing visibility.
  • Inspect turbo mounting hardware and downpipe hanger to prevent side-loading the new manifold.
Towing
  • Manifold + EGT gauge; verify cooling stack cleanliness; keep trans temps in check for overall thermal margin.
Future Performance
  • If eyeing an S300/S400 later, select the appropriate flange pattern now; plan for drive-pressure/EGT monitoring with added fueling.

FAQs

Do I need tuning? No. The manifold is an airflow/reliability part and works with stock calibration.

Is it EGR-compatible? Yes—kits list EGR compatibility and include the required port gaskets where applicable. Follow your product page.

How often should I re-torque? Follow the instructions in your specific kit; many recommend a post-heat-cycle check.
