Why Upgraded Transmission Coolers Matter: Heat, Slip, and the Real Cost of Hot ATF

Transmission coolers are one of the least glamorous upgrades in the diesel and towing world, which is exactly why so many owners wait too long to think about them. People will spend freely on power, towing accessories, wheels, tires, and cosmetic upgrades, then ask a stock cooling system to survive bigger loads, longer grades, hotter climates, and heavier trailers than it was ever meant to see every day. When the transmission starts acting different, they blame the converter, the valve body, the tuning, or the transmission itself. Most of the time, the real problem started much earlier with one word: heat.

Jump to: Why heat kills automatics • How hot ATF shows up in real trucks • When stock cooling stops being enough • Why upgraded coolers work • BD transmission cooler options • How to choose the right cooler setup • Installation strategy • FAQs

Why Heat Kills Automatic Transmissions Faster Than Almost Anything Else

The easiest way to understand automatic transmission failure is to stop thinking about it as a collection of gears and start thinking about it as a system built around friction, pressure, and fluid quality. Gears themselves do not usually “wear out” first. What fails first is the system that applies clutches cleanly, controls converter lockup, and moves hot fluid to a place where it can shed heat.

Automatic transmission fluid is not just lubricant. It is also a hydraulic medium and a friction-management fluid. Once temperature climbs too far for too long, the fluid’s properties begin to shift. Viscosity changes. Friction modifiers no longer behave consistently. Apply pressure becomes less stable. The converter clutch has to work harder. Then the transmission starts doing what owners notice: flare, shudder, hunt, delay, or run even hotter.

That is why “it only got hot a few times” is often the beginning of the story, not the end of it. Heat is cumulative. One bad towing trip can weaken the system. Five bad towing trips can quietly turn a perfectly good transmission into a transmission that “suddenly” started slipping months later.

How Hot Transmission Fluid Shows Up in Real Tow Rigs

Most owners do not say, “My transmission fluid has lost thermal stability.” They say things like:

• “It feels fine empty, but weird with a trailer.”
• “It starts shifting funny on long grades.”
• “The converter feels busy or shudders when it should be locked.”
• “It gets hotter every summer than it used to.”
• “After a hard pull, it just feels soft.”

Those are heat symptoms. Not always heat alone, but almost always heat involved. A transmission that behaves differently only after 20–30 minutes of towing is usually not “randomly failing.” It is giving you the exact evidence you need: under temperature and load, something is slipping, restricting flow, or running outside its comfort zone.

When Stock Cooling Stops Being Enough

Factory cooling systems are built around expected use, expected airflow, and expected maintenance. That “expected use” does not always match the real lives of BD customers. A stock cooler may be perfectly adequate for a light commuter truck that occasionally tows a small trailer. It is a different story when the truck:

• tows heavy in mountain or desert conditions
• spends time in stop-and-go traffic with a trailer
• runs oversized tires or altered gearing
• has added power but unchanged cooling capacity
• works as a fleet or service truck with long idle time
• has seen enough miles that internal cooler efficiency is no longer what it was

There is also a second, less obvious problem: many trucks do not suffer from “not enough cooler” at first. They suffer from not enough margin. The stock system works until outside temperature, trailer weight, altitude, and speed line up in the wrong combination. Then one bad hill exposes the weakness. That is why upgraded coolers matter even for trucks that “usually run fine.”

Why Upgraded Transmission Coolers Work

An upgraded cooler works because it changes the thermal budget of the entire system. Instead of asking the same amount of fluid to shed the same heat through the same surface area, you increase the cooler’s ability to remove heat and often improve fluid flow at the same time.

That second list matters. A cooler is not magic. It is a system upgrade. If the transmission is already damaged, a cooler will not reverse the damage. But if the truck is healthy—or only beginning to show heat-related complaints—an upgraded cooler can be the exact difference between a transmission that survives and one that quietly starts its way toward rebuild time.

BD Transmission Cooler Options: Xtrude, Fan-Assisted, and More

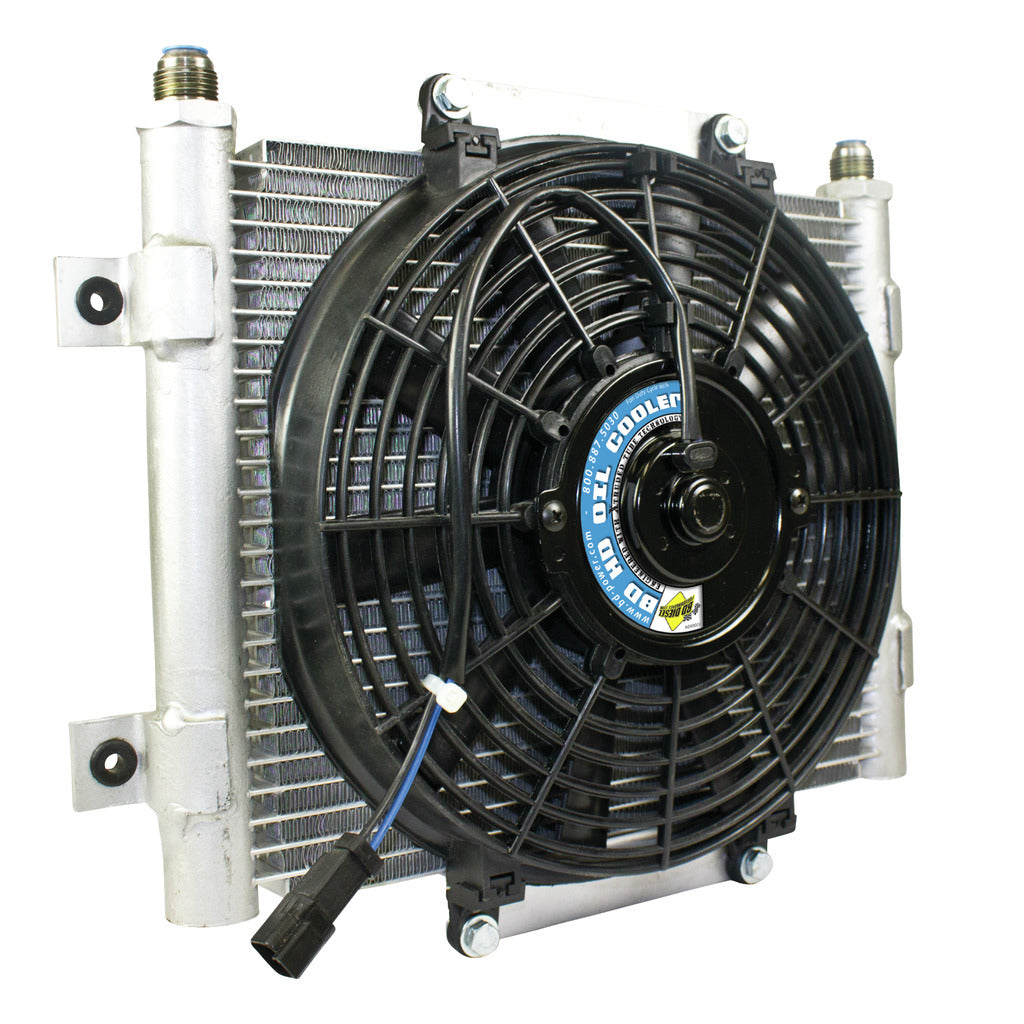

BD’s cooler lineup makes sense because it is built around real use cases, not generic catalog filler. The Xtrude cooler family is the centerpiece: micro-extruded passages, large ports, external-airflow cooling, and fan-equipped options for the trucks that need help even when road speed is low.

Use the actual product image here from the Xtrude product page to strengthen product-relevance signals.

How to Choose the Right Cooler Setup

Bigger is not always smarter. The right cooler depends on what the truck actually does. A daily-driven tow rig that occasionally sees a heavy trailer is different from a truck that drags weight through summer traffic or works commercially every day.

Installation Strategy: The Cooler Only Helps If the System Is Healthy

Cooler upgrades work best when you treat the whole system like a whole system. That means verifying cooler flow, hose routing, airflow, fan logic, and any failure-prone bypass components before you button up the install.

That last point matters enough to mention directly. On GM 8L90 applications, BD’s cooler bypass delete exists because the stock bypass can jam in recirculation mode, raise temperature, and lead to overheating and early transmission failure. That is not a “nice accessory.” That is a real example of how a cooler system can fail before the cooler itself is ever the issue.

Frequently Asked Questions

Do I need an upgraded transmission cooler if my truck is still stock?
If the truck tows heavy, runs in hot climates, or spends time in low-speed towing conditions, yes, a cooler can still make sense. Stock power does not guarantee stock heat load in the real world.

Will a bigger cooler fix converter shudder?
Not by itself. If the converter is already damaged, the cooler will not reverse it. But if heat is the factor pushing the system over the edge, more cooling margin can prevent the next converter from suffering the same fate.

Can I remove the factory cooler and run only the BD cooler?
Follow BD’s product notes. Their Xtrude fan-equipped packages are intended to work in conjunction with factory coolers rather than replace them outright.

What kind of trucks benefit most from fan-equipped coolers?
Trucks that tow in traffic, crawl off-road, work commercially, or spend time at lower speeds where airflow across the cooler is limited.

What is the first sign my stock cooling is no longer enough?
The earliest signs are usually subtle: hotter temps on the same route, more converter “busyness,” shift quality that changes after the truck gets heat in it, or a transmission that feels soft only under real load.
